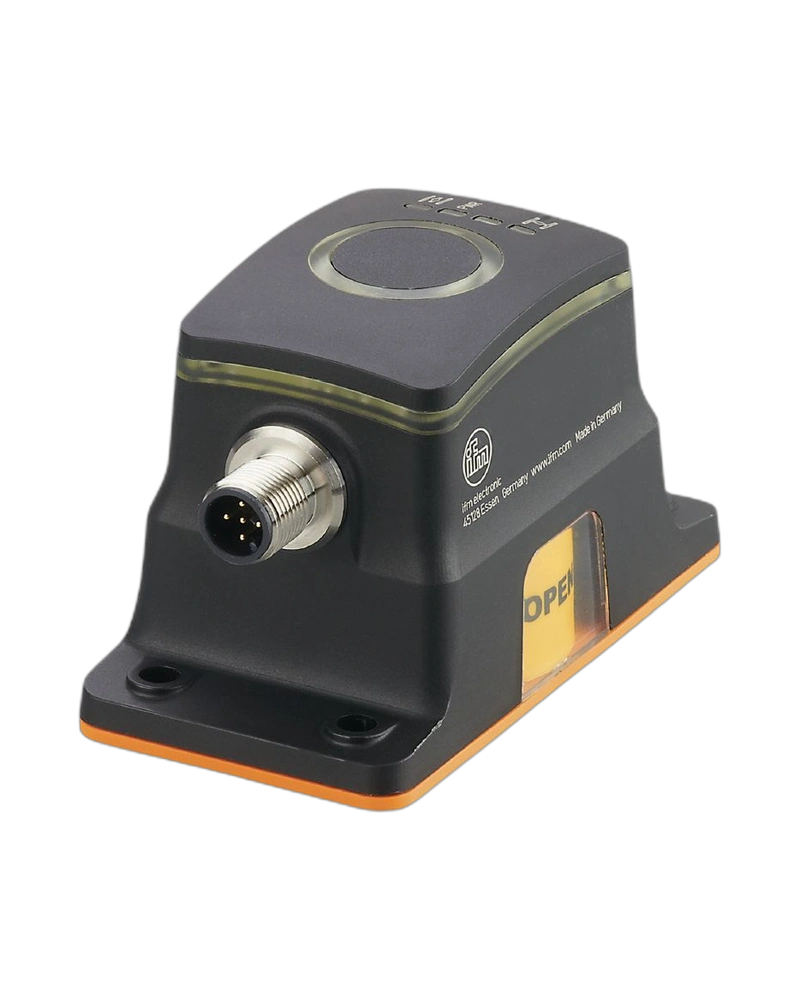

The IFM MVQ101 is a smart valve position sensor designed for continuous position feedback on rotary valve actuators. It uses IO-Link communication and provides three selectable normally open or normally closed digital outputs. The sensor detects valve position across a 360° range with 0.1° resolution and 0.1° repeatability. It operates from 10 to 30 V DC and is rated IP65/IP67 for industrial environments. The device supports diagnostics such as seal monitoring, position counting and valve movement-time measurement.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MVQ101 provides continuous feedback of the rotary valve position. Its detection range covers 360°, allowing it to monitor the complete actuator movement. The sensor provides 0.1° resolution and 0.1° repeatability. Three digital outputs can be configured as normally open or normally closed. This provides flexible feedback for valve control and monitoring systems.
The MVQ101 communicates through IO-Link revision 1.1 using COM2 at 38.4 kbit/s. IO-Link provides parameterisation, diagnostics and process data communication through the sensor interface. The device supports SIO mode and requires an IO-Link master with a Class A port. Parameterisation can be performed using compatible IFM tools such as LR DEVICE. This allows the sensor to be integrated into modern digital automation architectures.
The MVQ101 provides diagnostic capabilities beyond basic valve position switching. Its IO-Link communication can provide information related to changes in valve closing and opening behaviour. Seal monitoring can indicate changes associated with deposits or seal wear. Valve positions can also be counted and movement times measured. These functions support condition-based maintenance and help reduce unexpected process downtime.
The MVQ101 is designed for rotary valve actuators using an 80 × 20 mm VDI/VDE 3845 mounting interface. It uses a PA housing with a stainless-steel connector. The operating temperature range is -25 to 70°C. Reverse-polarity and short-circuit protection are included. IP65/IP67 protection supports installation in industrial valve environments.
Smart valve position sensor
SVS Basic IO-Link
IO-Link revision 1.1
COM2 communication
38.4 kbit/s transmission
10…30 V DC supply
360° detection range
0.1° resolution
0.1° repeatability
±0.1…15° tolerance
3 × NO/NC selectable outputs
PNP electrical design
SIO mode supported
Reverse-polarity protection
Short-circuit protection
IP65/IP67 protection
-25…70°C ambient range
M12 connection
PA housing
Stainless-steel connector
80 × 20 mm VDI/VDE mounting
Seal monitoring
Valve position counting
Movement-time measurement
Condition-monitoring capability
Smart Sensor profile
Class A IO-Link master
Minimum process cycle time 4 ms
95 × 50 × 57 mm dimensions
Industrial valve actuator application
Rotary valve position feedback
Process automation
Pneumatic valve monitoring
Butterfly valve monitoring
Ball valve monitoring
Industrial valve actuators
Food and beverage equipment
Pharmaceutical process systems
Chemical process equipment
Factory automation
Process diagnostics
Condition-based maintenance
The MVQ101 provides continuous information about valve position rather than only a basic open or closed indication. Its 360° detection range allows monitoring throughout the actuator movement. The 0.1° resolution provides detailed position information. Three configurable outputs provide flexible switching functions. This makes the sensor suitable for advanced valve feedback applications.
IO-Link enables the MVQ101 to communicate additional diagnostic information to the automation system. Changes in valve movement times can indicate deposits, wear or other mechanical changes. Seal monitoring can identify changes in the closed position. Position counting and movement-time measurement support maintenance planning. This helps move valve maintenance from reactive servicing toward condition-based maintenance.
The IO-Link interface allows parameterisation and process-data communication through a compatible master. The sensor supports IO-Link revision 1.1 and SIO mode. Its Smart Sensor profile provides device identification, diagnostics and process-data functions. The M12 connection simplifies integration into industrial wiring systems. This makes the MVQ101 suitable for digitally connected valve automation architectures.
| Specification | MVQ101 Details |
|---|---|
| Product | Position sensor for valve actuators |
| Order number | MVQ101 |
| Product designation | SVS BASIC IO-LINK |
| Product category | IO-Link position sensor |
| Application | Rotary valve actuators |
| Operating principle | Continuous valve position feedback |
| Detection range | 360° |
| Position range | -180…179.9° |
| Resolution | 0.1° |
| Repeatability | 0.1° |
| Tolerance | ±0.1…15° |
| Supply voltage | 10…30 V DC |
| Electrical design | DC PNP |
| Output function | 3 × NO/NC selectable |
| Digital outputs | 3 |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Transmission type | COM2 |
| Transmission speed | 38.4 kbit/s |
| Minimum process cycle | 4 ms |
| Required master port | Class A |
| SIO mode | Yes |
| Reverse-polarity protection | Yes |
| Short-circuit protection | Yes |
| Protection rating | IP65/IP67 |
| Ambient temperature | -25…70°C |
| Housing material | PA |
| Connector material | Stainless steel |
| Connection | M12 |
| Mounting interface | VDI/VDE 3845, 80 × 20 mm |
| Housing dimensions | 95 × 50 × 57 mm |
| Diagnostic functions | Seal monitoring, position counting, movement-time measurement |
