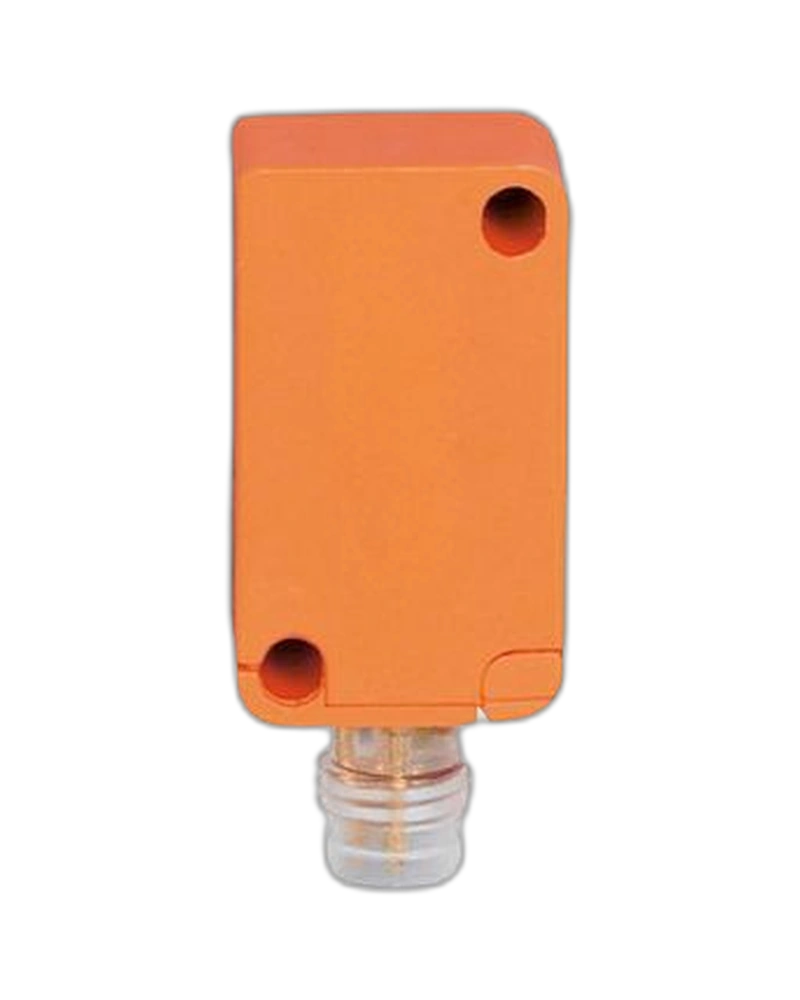

The IFM IS5035 is a compact inductive sensor designed for reliable detection of metallic targets in applications with limited installation space. It has a 2 mm sensing range, flush-mountable design, normally-open PNP output, DC operation, M8 connection, IP65 protection, and an 800 Hz switching frequency. Its compact 36.8 × 10.2 × 16 mm format supports space-constrained automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IS5035 is designed for applications where reliable inductive detection is required in a compact installation area. IFM specifications identify a 36.8 × 10.2 × 16 mm housing, 2 mm sensing range, normally-open PNP output, DC operation, and M8 connection. The flush-mountable design allows integration into equipment where installation space is limited.
The IS5035 is particularly suitable for compact machinery and automation systems requiring fast repetitive metal detection. Its 800 Hz switching frequency supports high-cycle applications, while the flush-mountable sensing arrangement helps simplify installation in constrained spaces. IP65 protection supports use in suitable industrial environments, with IP67 possible when the specified IFM socket is correctly fitted.
The IS5035 combines compact dimensions with practical industrial sensing performance. Its 2 mm sensing range, PNP normally-open output, M8 connector, and high 800 Hz switching frequency make it suitable for fast and space-constrained automation applications. The sensor is a useful choice for machine builders requiring compact inductive detection.
Compact 36.8 × 10.2 × 16 mm design
2 mm sensing range
Flush-mountable installation
PNP output
Normally-open switching function
M8 connector
IP65 protection
IP67 with specified IFM socket
800 Hz switching frequency
Suitable for limited-space applications
Compact automation machinery
Machine position detection
Metal component sensing
High-cycle automation
Assembly equipment
Production machinery
Small machine modules
Conveyor systems
Object presence detection
Factory automation
| Specification | Details |
|---|---|
| Product Code | IS5035 |
| Model | IS-3002-BPKG/AS |
| Product Type | Inductive sensor |
| Sensing Range | 2 mm |
| Electrical Design | PNP |
| Output Function | Normally open |
| Operating Voltage | DC / model-specific |
| Current Consumption | Model-specific / refer to IFM datasheet |
| Housing Material | Model-specific / refer to IFM datasheet |
| Housing Design | 36.8 × 10.2 × 16 mm compact design |
| Connection | M8 connector |
| Connector | M8 |
| Protection Rating | IP65; IP67 with specified IFM socket |
| Protection Class | Model-specific / refer to IFM datasheet |
| Switching Frequency | 800 Hz |
| Response Time | Model-specific / refer to IFM datasheet |
| Ambient Temperature | -25...80 °C |
| Installation | Flush mountable |
| Mounting | Flush mount |
| LED Indicator | Model-specific / refer to IFM datasheet |
| Short-Circuit Protection | Model-specific / refer to IFM datasheet |
| Overload Protection | Model-specific / refer to IFM datasheet |
| Reverse Polarity Protection | Model-specific / refer to IFM datasheet |
| Weight | Model-specific / refer to IFM datasheet |
| Additional Information | Compact sensor for limited installation space |
