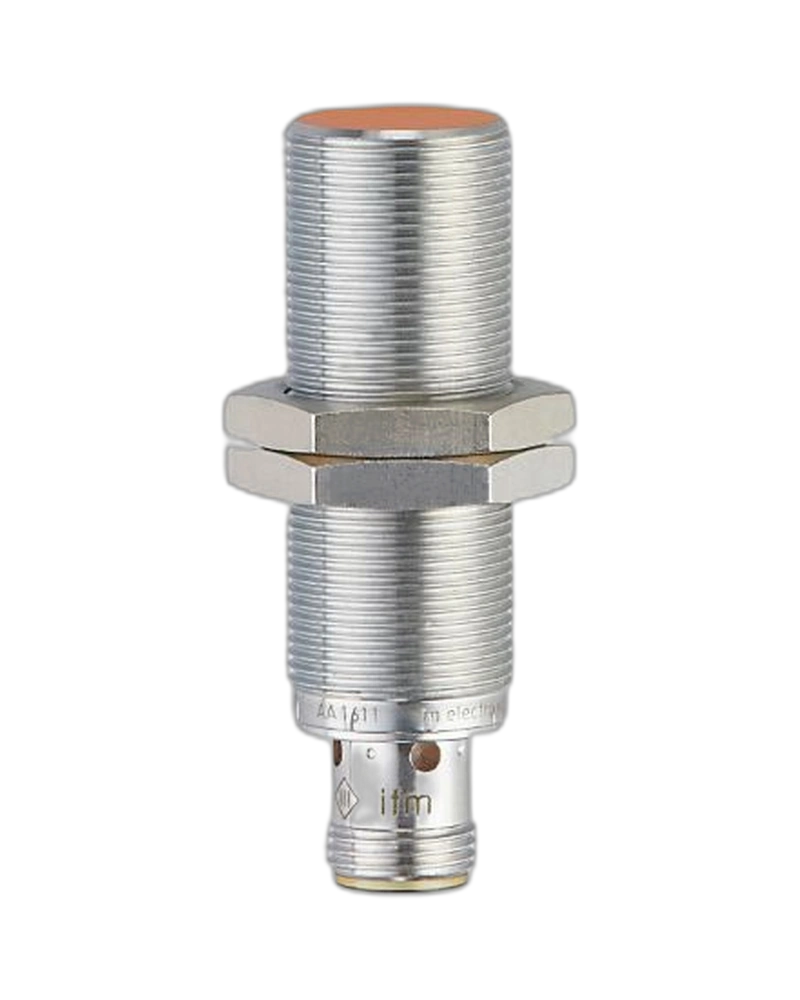

The IFM IGS232 is an M18 flush-mountable inductive sensor with an 8 mm sensing range. It uses a PNP normally open output and operates from 10 to 30 V DC. The sensor features increased sensing range, gold-plated contacts, and a high 400 Hz switching frequency. Its IP65 to IP69K protection supports demanding industrial and mobile applications. The M12 connector and robust brass construction simplify installation in factory automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IGS232 provides an 8 mm nominal sensing range with an actual sensing range of 8 ±10%. Its operating distance is 0...6.48 mm. The increased sensing range provides dependable metallic-target detection. Flush mounting allows the sensor to be installed directly into suitable metal structures. This provides a compact and reliable solution for industrial position sensing.
The sensor operates from 10...30 V DC and consumes less than 10 mA. Its PNP normally open output supports a permanent current rating of 100 mA. The maximum switching-output voltage drop is 2.5 V. A switching frequency of 400 Hz supports relatively fast object detection. Short-circuit and overload protection are included.
The IGS232 has an M18 × 1 threaded brass housing with a 60 mm length. The housing is white-bronze coated, with a PBT sensing face and PEI LED window. Protection ratings extend from IP65 through IP69K. The sensor withstands significant vibration and shock according to its specified IEC test levels. This makes it suitable for industrial, mobile, cooling, and lubricating applications.
8 mm sensing range
Flush mounting
PNP output
Normally open
10...30 V DC
400 Hz switching frequency
100 mA output
2.5 V voltage drop
Short-circuit protection
Overload protection
Gold-plated contacts
M18 × 1 housing
M12 connector
IP65/IP66/IP67/IP68/IP69K
Increased sensing range
Factory automation
Industrial machinery
Mobile machinery
Cooling equipment
Lubrication systems
Machine position detection
Metal detection
Conveyor equipment
Production machinery
Industrial automation
The IGS232 provides non-contact metallic-object detection with an increased 8 mm sensing range. Its flush mounting supports clean mechanical integration. The robust housing protects the sensing electronics against demanding industrial conditions. High switching frequency supports applications with relatively fast moving targets. These features provide reliable machine-position feedback.
| Specification | IGS232 |
|---|---|
| Product Type | Inductive sensor |
| Order Code | IGS232 |
| Electrical Design | PNP |
| Output Function | Normally open |
| Sensing Principle | Inductive |
| Sensing Range | 8 mm |
| Real Sensing Range | 8 ±10% |
| Operating Distance | 0...6.48 mm |
| Installation | Flush |
| Housing | Threaded |
| Thread | M18 × 1 |
| Overall Length | 60 mm |
| Supply Voltage | 10...30 V DC |
| Current Consumption | <10 mA |
| Protection Class | III |
| Reverse Polarity | Yes |
| Voltage Drop | 2.5 V |
| Output Current | 100 mA |
| Switching Frequency | 400 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Hysteresis | 3...15% of Sr |
| Switch-Point Drift | -10...10% |
| Correction Factor Steel | 1 |
| Stainless Steel | 0.7 |
| Brass | 0.5 |
| Aluminium | 0.4 |
| Copper | 0.3 |
| Ambient Temperature | -40...85 °C |
| Protection | IP65/IP66/IP67/IP68/IP69K |
