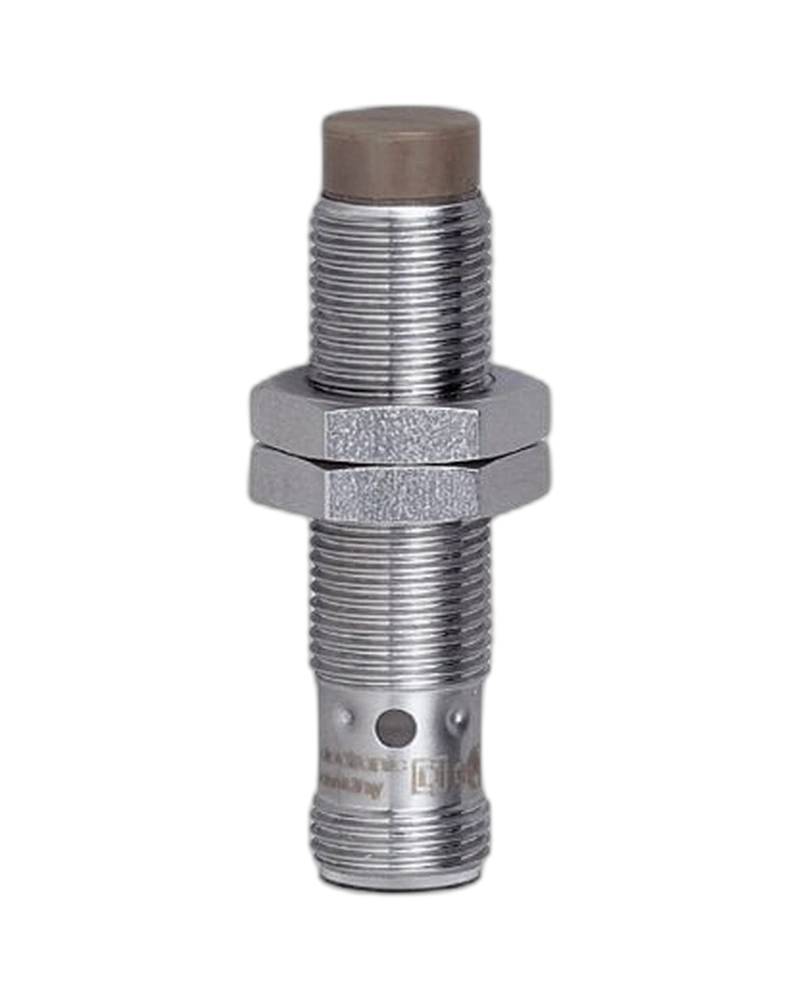

The IFM IFT200 is a stainless-steel M12 inductive sensor with a 7 mm non-flush sensing range. It uses a PNP normally open output and operates from 10 to 36 V DC. The sensor provides an 800 Hz switching frequency for fast industrial object detection. Its robust high-grade stainless-steel construction supports demanding applications involving cooling and lubricating media. IP68/IP69K protection makes it suitable for harsh industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFT200 provides a nominal sensing range of 7 mm in a non-flush mounting configuration. Its extended sensing capability allows reliable detection of metallic targets at increased distances. The M12 form factor provides a compact installation solution. This makes the sensor useful where installation space is limited. It is designed for reliable presence and position detection in industrial machinery.
The IFT200 operates at a switching frequency of up to 800 Hz. Its PNP normally open output provides a 100 mA load capability. The 10...36 V DC supply range supports common industrial control voltages. This combination allows reliable detection of fast-moving metallic components. Short response times are useful in conveyors and automated production machinery.
The sensor uses high-grade stainless-steel construction for demanding industrial applications. Its IP68/IP69K protection provides strong resistance to water and high-pressure cleaning conditions. The M12 connector simplifies installation and replacement. Its compact M12 × 1 housing is suitable for machine-building applications. These characteristics make the IFT200 appropriate for industrial, mobile, cooling, and lubricating systems.
7 mm sensing range
Non-flush mounting
PNP output
Normally open
10...36 V DC
800 Hz switching frequency
100 mA output
M12 × 1 housing
High-grade stainless steel
IP68 protection
IP69K protection
M12 connector
Increased sensing range
Industrial construction
High-speed detection
Factory automation
Conveyor systems
Machine tools
Mobile machinery
Cooling systems
Lubrication systems
Metal detection
Position monitoring
Production machinery
Industrial automation
The IFT200 is designed for applications where ordinary sensors may be exposed to moisture, cooling fluids, or lubricants. Its stainless-steel construction provides improved mechanical and environmental durability. High ingress protection supports operation in demanding conditions. The 7 mm sensing range allows practical non-contact detection of metallic components. This makes it suitable for robust machine automation.
| Specification | IFT200 |
|---|---|
| Product Type | Inductive sensor |
| Order Code | IFT200 |
| Electrical Design | PNP |
| Output Function | Normally open |
| Sensing Principle | Inductive |
| Sensing Range | 7 mm |
| Installation | Non-flush |
| Housing | Threaded |
| Thread | M12 × 1 |
| Length | 50 mm |
| Supply Voltage | 10...36 V DC |
| Output Current | 100 mA |
| Switching Frequency | 800 Hz |
| Housing Material | High-grade stainless steel |
| Connector | M12 |
| Protection | IP68/IP69K |
| Target Material | Metals |
| Detection Type | Non-contact |
| Output Technology | PNP |
| Signal Type | Digital switching |
| Mounting | Threaded |
| Application Area | Factory automation |
| Application Area 2 | Mobile machinery |
| Application Area 3 | Cooling systems |
| Application Area 4 | Lubricating systems |
| Sensing Configuration | Non-flush |
| Mechanical Format | Cylindrical |
| Sensor Family | IFT |
| Installation Thread | M12 × 1 |
| Switching Technology | Inductive proximity |
