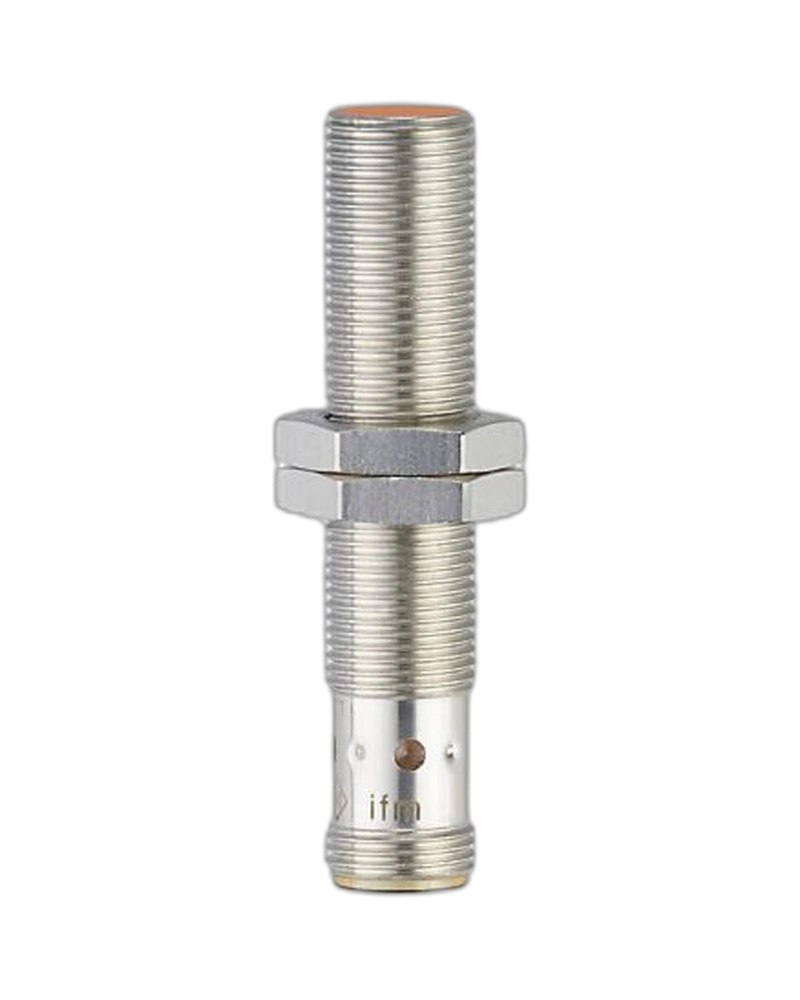

The IFM IFS240 is a flush-mountable M12 inductive sensor with a 4 mm increased sensing range. It uses a PNP normally open output and operates from 10 to 30 V DC. Gold-plated contacts and a robust brass housing support reliable industrial operation. The sensor provides a 700 Hz switching frequency and integrated short-circuit and overload protection. Its high environmental protection makes it suitable for demanding factory automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFS240 provides a nominal sensing range of 4 mm with an actual sensing range of 4 ±10%. Its operating distance is 0...3.24 mm. The increased sensing range allows reliable detection while maintaining a compact M12 form factor. The flush mounting arrangement simplifies installation in metal machine structures. This makes it suitable for general industrial position and presence detection.
The sensor operates at 10...30 V DC with less than 10 mA current consumption. Its PNP normally open output can switch up to 100 mA. A maximum voltage drop of 2.5 V is specified at the switching output. The 700 Hz switching frequency supports high-speed industrial detection. Short-circuit and overload protection improve electrical reliability.
The IFS240 uses an M12 × 1 threaded brass housing with a total length of 60 mm. The housing is white-bronze coated and the sensing face uses PBT. IP65, IP66, IP67, IP68, and IP69K ratings provide strong environmental protection. Gold-plated M12 contacts improve connection reliability. These characteristics make the sensor suitable for industrial, mobile, cooling, and lubricating applications.
4 mm sensing range
Flush mountable
PNP output
Normally open
10...30 V DC
700 Hz switching frequency
100 mA output
2.5 V voltage drop
Short-circuit protection
Overload protection
Gold-plated contacts
M12 connector
M12 × 1 housing
IP65/IP66/IP67/IP68/IP69K
Brass housing
Factory automation
Machine tools
Metal detection
Conveyor systems
Position sensing
Mobile machinery
Cooling systems
Lubricating equipment
Industrial automation
Machine building
The IFS240 provides non-contact detection of metallic targets without mechanical wear. Its increased sensing range provides additional installation flexibility. The flush-mountable design supports compact machine construction. Gold-plated connector contacts help maintain dependable electrical connections. This makes the sensor suitable for continuous industrial operation.
| Specification | IFS240 |
|---|---|
| Product Type | Inductive sensor |
| Order Code | IFS240 |
| Electrical Design | PNP |
| Output Function | Normally open |
| Sensing Principle | Inductive |
| Sensing Range | 4 mm |
| Real Sensing Range | 4 ±10% |
| Operating Distance | 0...3.24 mm |
| Installation | Flush |
| Housing | Threaded |
| Thread | M12 × 1 |
| Overall Length | 60 mm |
| Supply Voltage | 10...30 V DC |
| Current Consumption | <10 mA |
| Protection Class | III |
| Reverse Polarity | Yes |
| Voltage Drop | 2.5 V |
| Output Current | 100 mA |
| Switching Frequency | 700 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Hysteresis | 3...15% of Sr |
| Switch-Point Drift | -10...10% of Sr |
| Correction Factor Steel | 1 |
| Correction Factor Stainless Steel | 0.7 |
| Correction Factor Brass | 0.5 |
| Correction Factor Aluminium | 0.4 |
| Correction Factor Copper | 0.3 |
| Protection Rating | IP65/IP66/IP67/IP68/IP69K |
| Ambient Temperature | -40...85 °C |
| Housing Material | Brass, white-bronze coated |
