Product Overview

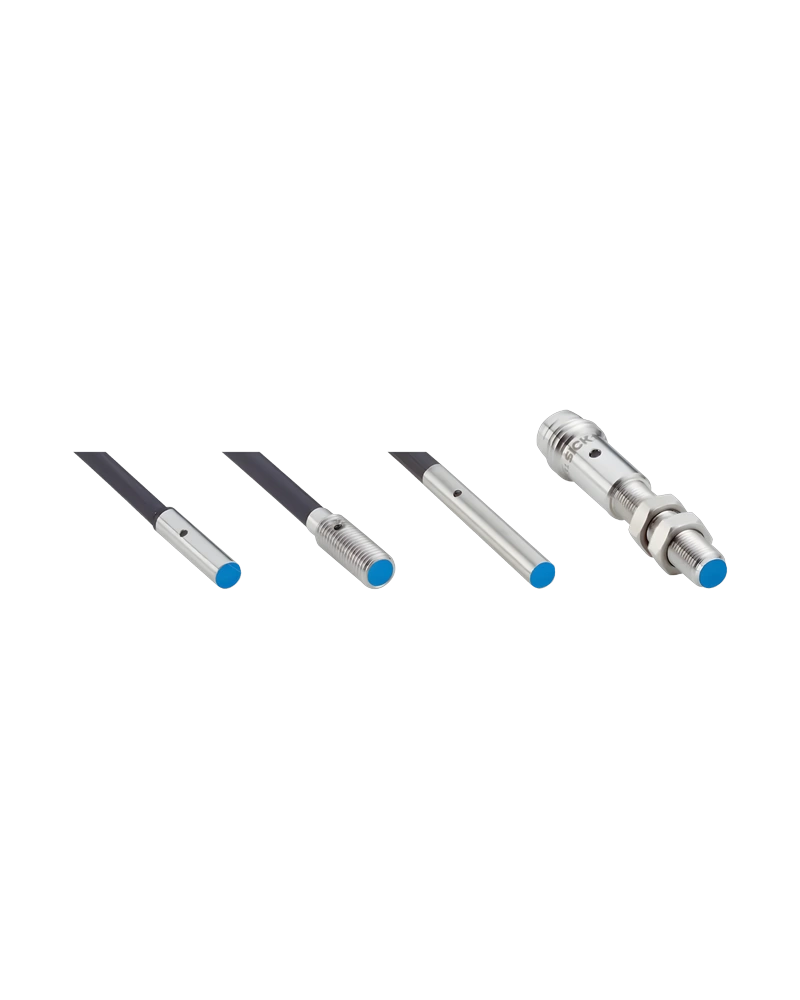

The SICK IMM inductive proximity sensors offer a compact, high-performance solution for modern industrial automation. Designed with a diameter of just 3 mm and a length of only 12 mm, these sensors deliver exceptional sensing range while fitting into extremely tight installation spaces. With a threefold sensing range up to 6 mm, the IMM series ensures reliable detection of objects from a safe distance—ideal for applications requiring both precision and flexibility in machine design. Their small footprint and high positioning accuracy make them particularly well-suited for dynamic handling and assembly processes where fast response times are critical. The combination of minimal physical size and robust sensing performance provides engineers with greater freedom in layout planning without sacrificing detection reliability.

Key Features and Technology

The IMM sensors leverage state-of-the-art ASIC technology to deliver advanced functionality, including a visual adjustment indicator via LED that signals when the secured sensing range has been reached. This feature significantly reduces installation time and improves accuracy during setup. The integration of IO-Link version 1.1 enables seamless communication with control systems, allowing real-time monitoring and diagnostics. Thanks to their threefold sensing ranges up to 6 mm, IMM sensors detect every object from a safe distance, ensuring consistent performance even in challenging environments. This technology supports both high dynamic processes and tight installation constraints, making the IMM series a reliable choice for precision detection applications.

Technical Characteristics

The IMM inductive proximity sensors feature a sensing range of up to 6 mm due to their threefold sensing capability. The smallest models have a diameter of just 3 mm and are only 12 mm long, enabling integration into minimal spaces without compromising performance. These sensors maintain full sensing range even in M8 and M12 mounting sizes, ensuring consistent detection regardless of installation constraints. With high positioning accuracy and precise switching behavior, they deliver reliable results during fast-moving operations. The visual adjustment indicator provides immediate feedback during setup, helping users confirm that the sensing range is properly secured—resulting in faster installations and reduced errors.

Configuration and Integration

The IMM sensors are designed for easy integration into existing automation systems through IO-Link version 1.1 communication, enabling direct connection to PLCs or HMIs for real-time data exchange. The visual adjustment indicator simplifies installation by providing an LED signal when the optimal sensing range is achieved, reducing setup time and ensuring correct positioning. This combination of intuitive feedback and standardized communication supports rapid deployment in both new and retrofit applications. With no compromise on sensing performance due to compact design, engineers can confidently install IMM sensors in tight spaces while maintaining full functionality and reliability.

Operating Environment

The IMM sensors are engineered for reliable operation in standard industrial environments. They perform effectively under typical temperature and humidity conditions found in manufacturing and assembly lines. The robust construction ensures stable performance even when exposed to mechanical vibrations or minor environmental fluctuations. While specific environmental ratings are not provided, the design emphasizes durability and consistent detection across a range of operational settings. Their compact size and precise switching behavior make them suitable for use in dynamic environments where reliability and response time are essential.

Industrial Applications

The IMM inductive proximity sensors are ideally suited for applications requiring high precision, minimal space, and reliable detection—such as automated assembly lines, robotic handling systems, and fast-moving production processes. Their ability to detect objects from a safe distance of up to 6 mm makes them ideal for use in tight installation spaces where traditional sensors would not fit. The combination of small size, high accuracy, and quick switching behavior ensures dependable performance during dynamic operations. Whether used in packaging, material handling, or quality control, the IMM series delivers consistent results with minimal maintenance needs.
