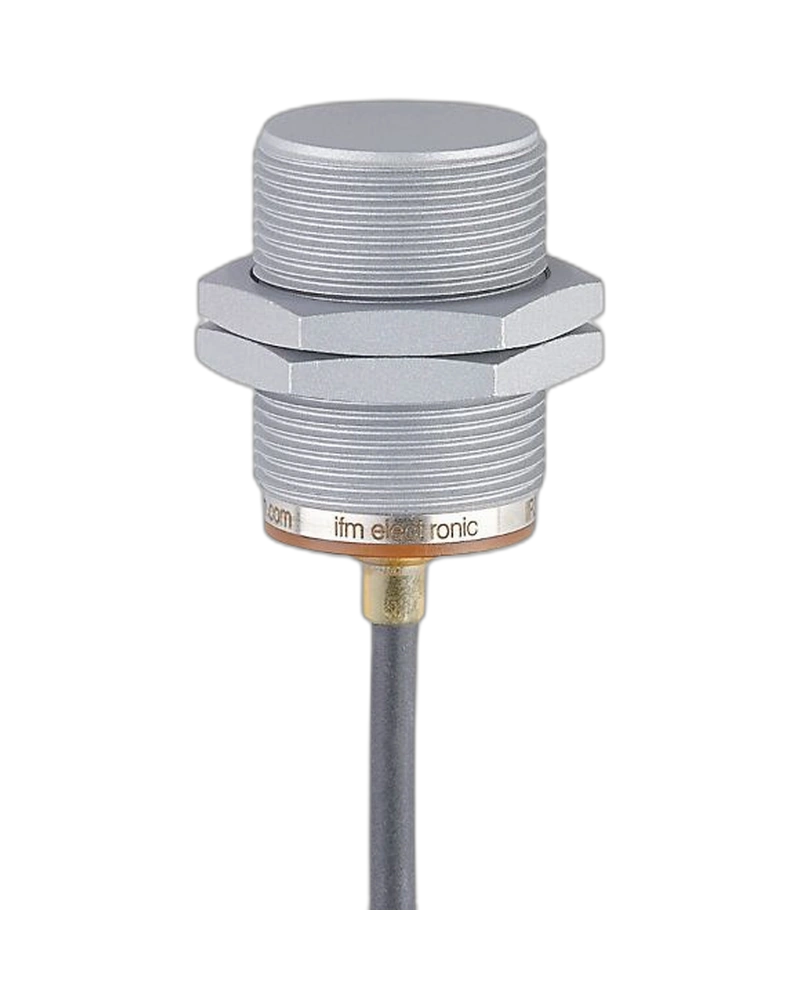

The IFM IIR212 is a full-metal inductive sensor designed for reliable detection of metallic targets in demanding industrial applications. The official IFM documentation specifies PNP normally-open output, a 15 mm sensing range, 10–30 V DC operation, and a full-metal housing. It is designed for welding applications and offers magnetic-field immunity, making it suitable for demanding industrial automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IIR212 is a robust full-metal inductive sensor designed for applications where reliable metallic target detection is required in demanding environments. According to IFM documentation, it features PNP normally-open output, a 15 mm sensing range, and a threaded M30 x 1.5 housing. Its full-metal construction and magnetic-field immunity make it particularly suitable for welding applications and industrial machinery.
The IIR212 is designed for demanding welding and automation environments where conventional sensors may be exposed to magnetic fields and mechanical stress. Its full-metal housing and magnetic-field immunity support reliable operation, while the 15 mm sensing range allows metallic targets to be detected without physical contact. The sensor is also specified for pressure applications at the sensing face up to 10 bar / 1 MPa.
The IIR212 is a strong choice for industrial applications requiring a rugged full-metal sensor with dependable inductive detection. IFM specifies 10–30 V DC operation, PNP normally-open output, reverse-polarity protection, short-circuit protection, and a 100 mA permanent current rating. Its suitability for welding applications makes it particularly useful in demanding machine environments.
Full-metal housing
15 mm sensing range
PNP output
Normally-open output function
10–30 V DC operating voltage
Magnetic-field immune
Suitable for welding applications
Short-circuit protection
Reverse-polarity protection
M30 x 1.5 threaded housing
Welding equipment
Welding automation
Industrial machinery
Metal object detection
Machine position monitoring
Production equipment
Conveyor systems
Material handling
Automated machine control
Heavy-duty factory automation
| Specification | Details |
|---|---|
| Product Code | IIR212 |
| Model | IIB3015BBPKG/AM/SC/2M/PUR |
| Product Type | Inductive full-metal sensor |
| Sensing Range | 15 mm |
| Electrical Design | PNP |
| Output Function | Normally open |
| Operating Voltage | 10...30 V DC |
| Current Consumption | < 10 mA |
| Housing Material | Full-metal |
| Housing Design | Threaded type |
| Connection | 2 m PUR cable |
| Connector | Cable connection |
| Protection Rating | Model-specific / refer to IFM datasheet |
| Protection Class | III |
| Switching Frequency | 2 Hz DC |
| Response Time | Model-specific / refer to IFM datasheet |
| Ambient Temperature | Model-specific / refer to IFM datasheet |
| Installation | Industrial / welding applications |
| Mounting | M30 x 1.5 threaded |
| LED Indicator | Two-colour yellow/green |
| Short-Circuit Protection | Yes |
| Overload Protection | Model-specific / refer to IFM datasheet |
| Reverse Polarity Protection | Yes |
| Weight | Model-specific / refer to IFM datasheet |
| Additional Information | Magnetic-field immune; pressure rating at sensing face 10 bar / 1 MPa |
