The nominal sensing distance is 3 mm.
The nominal sensing distance is 3 mm. A switching frequency of 3 kHz.
The thermal drift Sr is < 10%, with repeat accuracy of 5% (UB 24V Ta=23 °C ±5 °C).
For electrical integration, the output configuration is PNP NO. The output function is Normally open (NO).
The operating voltage is 10 - 30 VDC, with load current of ≤ 300 mA. No-load supply current is ≤ 10 mA and leakage current is limited to ≤ 0,12 mA.
Maximum ripple is ≤10%. Inductive load protection is Yes. Short-circuit protection is Yes. Reverse polarity protection is Yes.
Ingress protection is rated IP 67.
The housing is PA, while the active head uses PA. Dimensions are 37,1 x 16 x 10,3 and the connection is M8 Connector.
Weight is 7 g.
The operating temperature range is -25 °C…+70 °C.

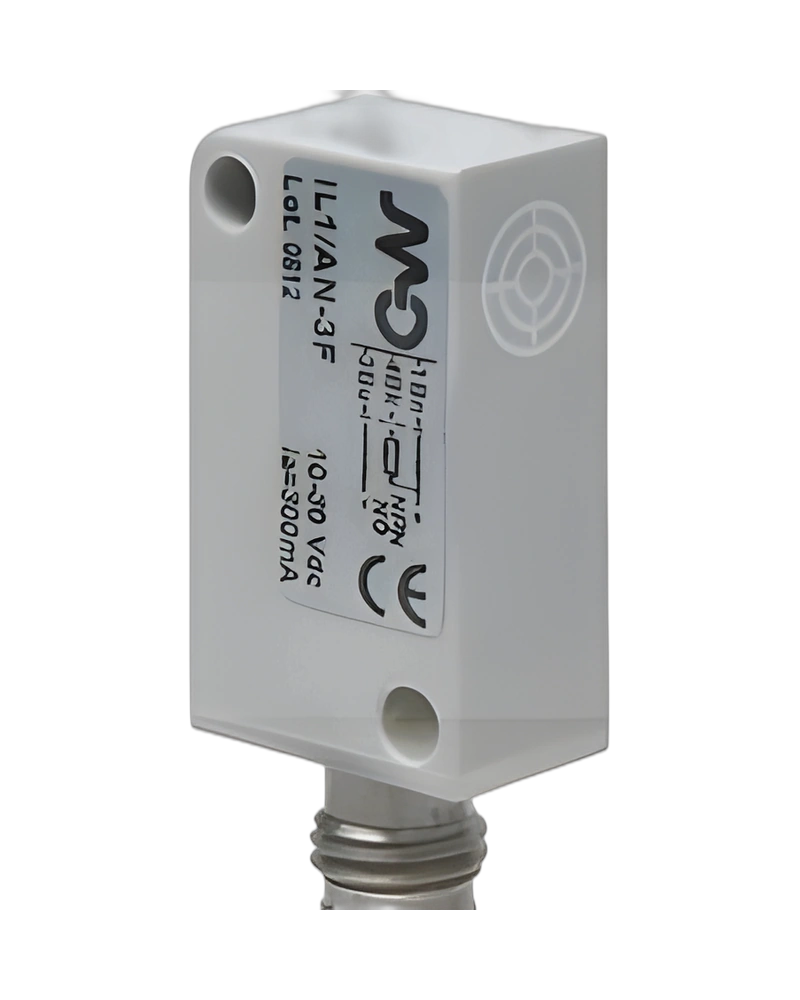

The manufacturer part number is IL1/AP-3F. This model is manufactured by M.D. Micro Detectors. Installation is Shielded.
Shielded is Operating temperature:. Time to availability is ≤ 100 ms.
For electrical integration, it provides output configuration PNP NO, operating voltage 10 - 30 VDC, switching frequency 3 kHz. The physical configuration includes PA housing, dimensions 37,1 x 16 x 10,3, M8 Connector connection. It is rated IP 67 for an operating temperature range of -25 °C…+70 °C.
| Specification | Details |
|---|---|
| Model | IL1/AP-3F |
| Output configuration | PNP NO |
| Manufacturer part number | IL1/AP-3F |
| Manufacturer | M.D. Micro Detectors |
| Output type | PNP |
| Output function | Normally open (NO) |
| Switching frequency | 3 kHz |
| Weight | 7 g |
| Active head material | PA |
| Housing material | PA |
| Installation | Shielded |
| Operating temperature | -25 °C…+70 °C |
| Dimensions | 37,1 x 16 x 10,3 |
| Connection | M8 Connector |
| Hysteresis | 1 … 20% |
| Nominal sensing distance | 3 mm |
| Operating distance | 0…2,4 mm |
| Standard target | 12x12 mm FE360 |
| Thermal drift Sr | < 10% |
| Repeat accuracy | 5% (UB 24V Ta=23 °C ±5 °C) |
| Degree of protection | IP 67 |
| Time to availability | ≤ 100 ms |
| Inductive load protection | Yes |
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes |
| Maximum ripple | ≤10% |
| Operating voltage | 10 - 30 VDC |
| Load current | ≤ 300 mA |
| No-load supply current | ≤ 10 mA |
| Leakage current | ≤ 0,12 mA |
