IFM IF6030 inductive analogue sensor with IO-Link for precise non-contact distance measurement. It features a 0.4–4 mm measuring range, linear 4–20 mA analogue output, configurable PNP/NPN operation and robust M12 metal housing for industrial automation applications
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IF6030 inductive analogue sensor, model IFK4004A1PKG/IO/US, is designed for accurate non-contact distance measurement of metallic targets in industrial automation systems. With a 0.4–4 mm measuring range and a linear 4–20 mA analogue output, the sensor provides reliable continuous measurement for machine monitoring and positioning applications.
• IFM IF6030 inductive analogue sensor
• Model: IFK4004A1PKG/IO/US
• Non-contact distance measurement
• 0.4–4 mm measuring range
• Linear 4–20 mA analogue current output
• IO-Link communication interface
• PNP/NPN electrical design, configurable
• Normally open / normally closed output, configurable
• 15–30 V DC operating voltage
• M12 × 1 threaded housing
• 70 mm housing length
• M12 connector connection
• Robust metal housing
• IP65, IP66, IP67, IP68 and IP69K protection
• -25 °C to +80 °C ambient operating temperature
• 200 Hz switching frequency
• Up to 500 Ω analogue output load
• Short-circuit and overload protection
• Reverse-polarity protection
• High repeatability and linearised output signal
The IF6030 uses inductive sensing technology to measure the distance of metallic targets without physical contact. Its 0.4–4 mm measuring range makes it suitable for precise position and distance monitoring in automated machinery.
The sensor provides a linear 4–20 mA analogue output. The output has a gradient of approximately 4.44 mA/mm, allowing the measured target distance to be transferred continuously to a PLC, controller or other compatible automation system.
IO-Link provides convenient communication and parameterisation of the sensor. The configurable PNP/NPN electrical design and configurable normally open/normally closed switching function provide flexibility during integration into industrial control systems.

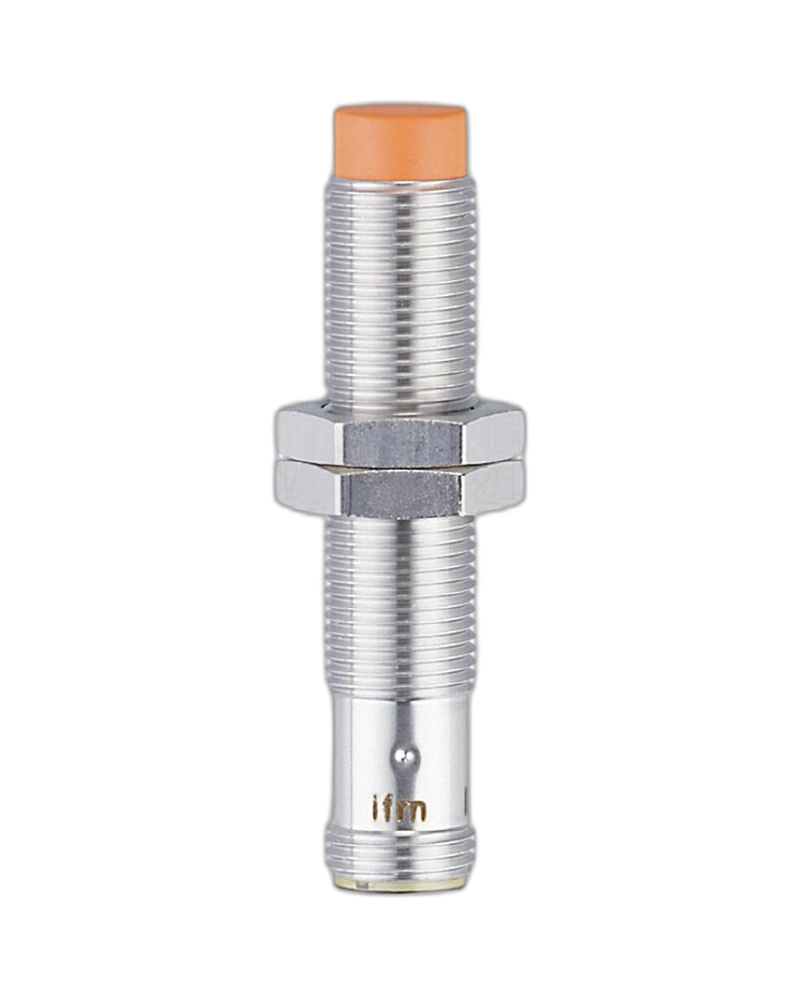

The IF6030 features an M12 × 1 threaded metal housing with a 70 mm length. Its robust construction and broad protection ratings make it suitable for demanding industrial environments where reliable sensing performance is required.
The IF6030 is suitable for continuous distance monitoring, position detection, machine automation, production equipment and other industrial applications requiring accurate non-contact measurement of metallic objects.
• Precise continuous distance measurement
• Non-contact detection reduces mechanical wear
• Linear 4–20 mA signal for automation systems
• IO-Link enables convenient parameterisation
• Configurable switching and electrical functions
• High repeatability for consistent measurements
• Robust construction for industrial environments
| Specification | Details |
| Brand | IFM |
| Product Code | IF6030 |
| Model | IFK4004A1PKG/IO/US |
| Sensor Type | Inductive analogue sensor |
| Sensing Principle | Inductive |
| Measuring Range | 0.4–4 mm |
| Analogue Output | 4–20 mA |
| Output Type | Linear analogue current output |
| Communication Interface | IO-Link |
| Electrical Design | PNP/NPN, configurable |
| Switching Function | Normally open / normally closed, configurable |
| Operating Voltage | 15–30 V DC |
| Current Consumption | <30 mA |
| Switching Frequency | 200 Hz |
| Analogue Output Load | Max. 500 Ω |
| Housing Type | Threaded |
