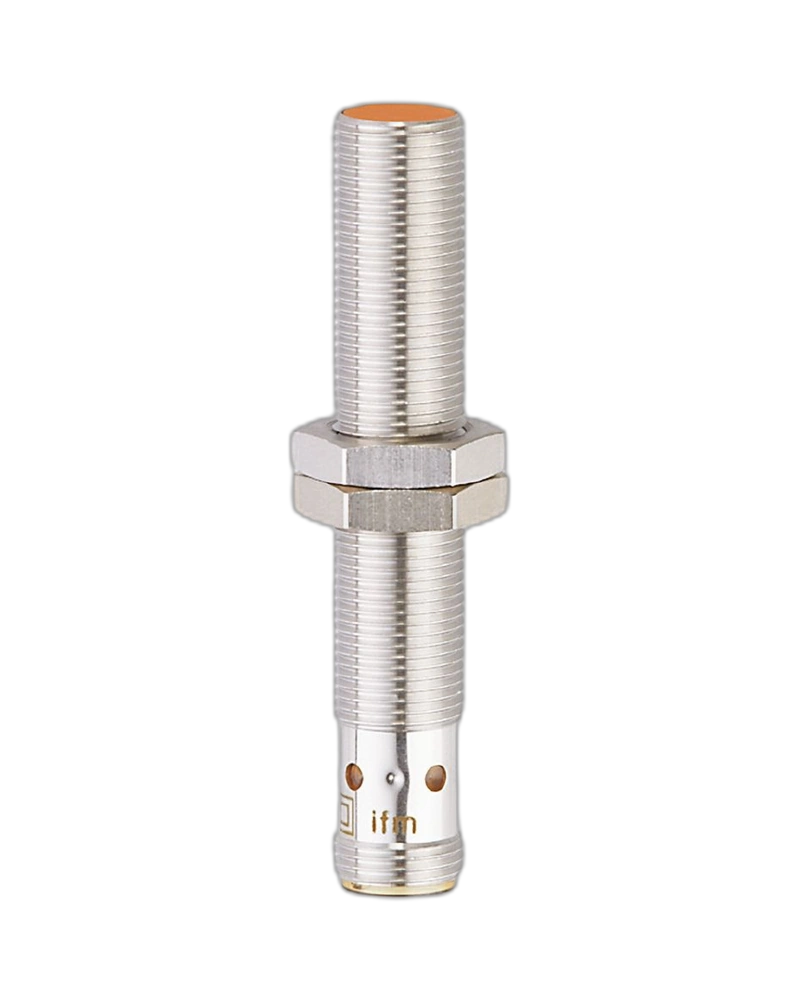

IFM IF6029 inductive analogue sensor with IO-Link, designed for precise non-contact distance measurement of metallic objects. It provides a linearised 0–10 V analogue output, high repeatability, configurable PNP/NPN operation and robust M12 metal housing for industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IF6029 inductive analogue sensor, model IFK4002A2PKG/IO/US, is designed for precise and reliable non-contact distance measurement of metallic objects. With a measuring range of 0.2–2 mm and a linearised 0–10 V analogue voltage output, it provides accurate distance information for demanding industrial automation applications.
• IFM IF6029 inductive analogue sensor
• Model: IFK4002A2PKG/IO/US
• Non-contact distance measurement
• Measuring range: 0.2–2 mm
• Linearised analogue voltage output: 0–10 V
• IO-Link communication interface
• PNP/NPN electrical design, parameterisable
• Normally open / normally closed output, parameterisable
• Operating voltage: 15–30 V DC
• M12 × 1 threaded housing
• Housing length: 70 mm
• Flush-mountable construction
• M12 connector connection
• Robust metal housing for industrial environments
• High repeatability
• Wide operating temperature range
• Reverse-polarity protection
• Suitable for industrial automation and distance-monitoring applications
The IF6029 provides accurate inductive distance measurement without physical contact. Its 0.2–2 mm measuring range and linearised 0–10 V output make it suitable for monitoring the position or distance of metallic targets in automated machinery and production systems.
IO-Link enables convenient communication and parameterisation of the sensor. The configurable PNP/NPN electrical design and normally open/normally closed output provide flexibility when integrating the sensor with industrial control systems.
The sensor features an M12 × 1 threaded metal housing with a 70 mm length and is designed for use in demanding industrial environments. Its robust construction and wide operating temperature range support reliable operation in industrial automation applications.
The IF6029 is suitable for non-contact position and distance monitoring, machine automation, production equipment, material handling systems and other applications requiring precise detection of metallic objects.
• Accurate non-contact distance measurement
• Linearised analogue output for continuous measurement
• High repeatability for consistent monitoring
• Flexible parameterisation through IO-Link
• Configurable electrical and switching functions
• Robust construction for industrial environments
| Specification | Details |
| Brand | IFM |
| Product Code | IF6029 |
| Model | IFK4002A2PKG/IO/US |
| Sensor Type | Inductive analogue sensor |
| Sensing Principle | Inductive |
| Measuring Range | 0.2–2 mm |
| Analogue Output | 0–10 V |
| Communication Interface | IO-Link |
| Electrical Design | PNP/NPN, parameterisable |
| Output Function | Normally open / normally closed, parameterisable |
| Operating Voltage | 15–30 V DC |
| Current Consumption | <30 mA |
| Housing Type | Threaded |
| Housing Size | M12 × 1 |
| Housing Length | 70 mm |
| Mounting | Flush |
| Connection | M12 connector |
| Housing Material | Brass |
| Protection | Reverse-polarity protection |
