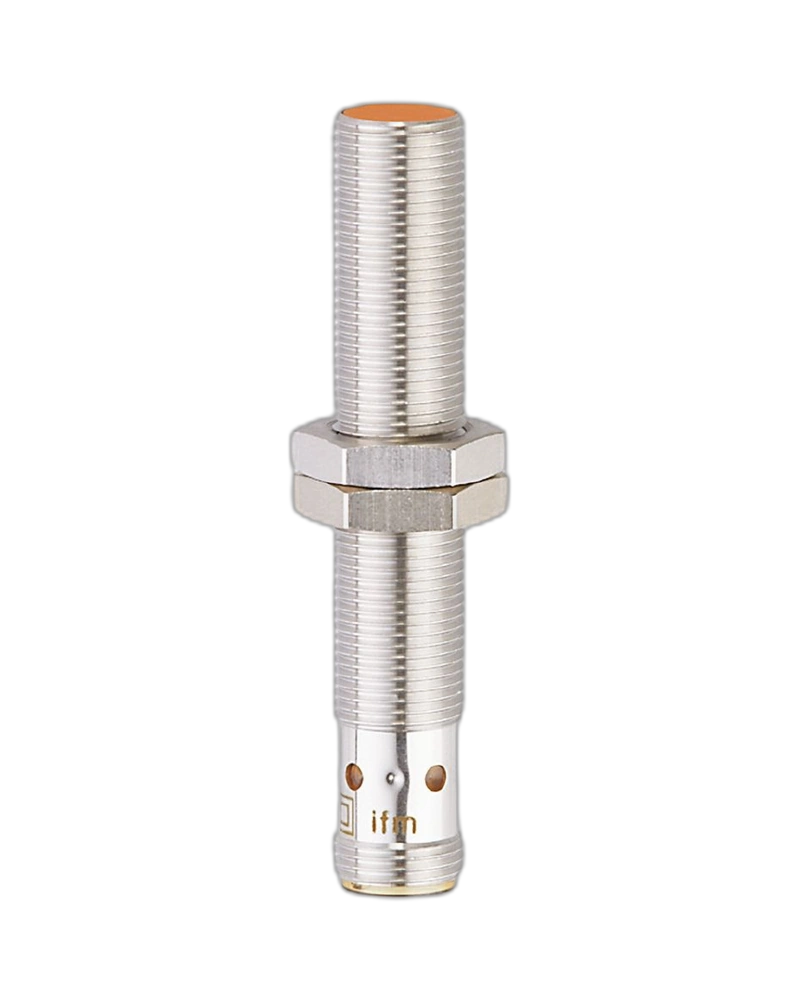

The IFM IF6028 inductive analogue sensor, model IFK4002A1PKG/IO/US, is designed for accurate non-contact distance measurement in industrial automation and machine monitoring applications. With a compact M12 × 1 threaded housing, a 0.2–2 mm measuring range, and a precise 4–20 mA analogue output, the sensor provides reliable measurement feedback for compatible control and automation systems.

The sensor combines analogue measurement capability with IO-Link communication, allowing convenient parameterisation, device identification, diagnostics, and access to additional process data. Its high repeatability and linearised output make it suitable for applications where consistent distance measurement is important.

Key Features

• IFM IF6028 inductive analogue sensor
• Model: IFK4002A1PKG/IO/US
• Non-contact distance measurement
• Measuring range: 0.2–2 mm
• Linear 4–20 mA analogue current output
• IO-Link communication interface
• PNP/NPN electrical design, parameterisable
• Normally-open / normally-closed switching function, parameterisable
• M12 × 1 threaded housing
• 70 mm housing length
• High measurement repeatability
• Robust metal housing
• 15–30 V DC operating voltage
• Less than 30 mA current consumption
• 200 Hz switching frequency
• 3-wire connection
• IP65, IP66, IP67, IP68 and IP69K protection
• -25 °C to +80 °C ambient operating temperature
• Reverse-polarity protection
• Short-circuit protection
• Overload protection

Precise Non-Contact Distance Measurement

The IF6028 is designed for contact-free distance measurement, allowing metallic targets to be monitored without mechanical contact. Its 0.2–2 mm measuring range and linearised analogue output support precise measurement applications in automated machinery and industrial equipment.

Analogue 4–20 mA Output

The sensor provides a 4–20 mA linear analogue output, making it suitable for transmitting measured distance information to compatible PLCs, controllers, monitoring equipment, and industrial automation systems. The specified output gradient is 8.889 mA/mm for the stated reference target and approach conditions.

IO-Link Communication

Integrated IO-Link COM2 communication provides convenient parameterisation and diagnostic capabilities. The IO-Link interface can provide process values, device status, identification information, switching information, operating-hour data, internal temperature, and other diagnostic data.

Robust Industrial Construction

The IF6028 features a robust metal housing designed for demanding industrial environments. Its wide operating temperature range and multiple IP protection ratings make it suitable for applications where resistance to dust, moisture, and industrial exposure is required.

Industrial Automation Applications

The sensor is suitable for precision distance measurement, machine monitoring, position-related applications, automated production equipment, and industrial process control. Its analogue and IO-Link capabilities make it a practical component for modern Industrial Automation Systems in UAE.

Operational Advantages

• Accurate non-contact distance measurement
• Linear 4–20 mA output for automation systems
• IO-Link communication for parameterisation and diagnostics
• High measurement repeatability
• Robust construction for industrial environments
• Wide operating temperature range
• Multiple protection ratings up to IP69K
• Suitable for integration with compatible PLC and control systems

The IFM IF6028 IFK4002A1PKG/IO/US is a precision inductive analogue sensor for industrial distance measurement and automation. It is an excellent choice for customers seeking Industrial Sensors Supplier UAE, Industrial Automation Components UAE, and reliable Industrial Automation Equipment UAE.
