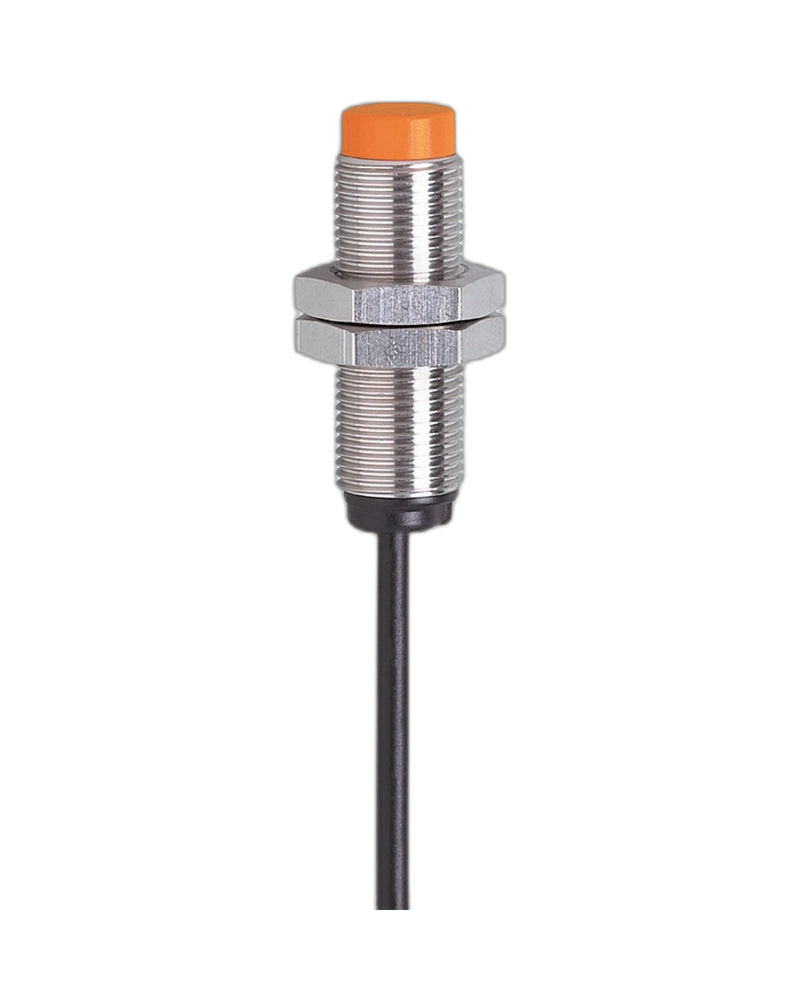

The IFM IF6027 inductive sensor, model IFB3002-BPKG/V2A/10-55V/6M/BH, is designed for reliable non-contact detection of metallic objects in industrial machinery and automated production systems. With a 2 mm sensing range, high switching frequency and durable stainless-steel housing, the sensor provides dependable detection for demanding Industrial Automation UAE applications.

The sensor features a DC PNP electrical design with a normally-open switching output and operates from a wide 10–55 V DC supply range. Its M12 × 1 threaded construction supports flush mounting, making it suitable for machine position monitoring, component detection and factory automation equipment.

Key Features

• IFM IF6027 inductive proximity sensor
• Model: IFB3002-BPKG/V2A/10-55V/6M/BH
• 2 mm sensing range
• Real sensing range: 2 ± 10%
• Operating distance: 0–1.6 mm
• Non-contact metallic object detection
• DC PNP electrical design
• Normally-open output
• 10–55 V DC operating voltage
• 1000 Hz switching frequency
• 150 mA short-term switching current
• 125 mA continuous switching current
• M12 × 1 threaded housing
• Flush-mountable construction
• Stainless-steel V2A housing
• 6 m PUR cable
• 3 × 0.34 mm² cable conductors
• IP67 protection rating
• Yellow LED switching-status indication
• Reverse-polarity protection
• Short-circuit protection
• Overload protection
• Suitable for demanding industrial environments

Sensing and Detection

The IF6027 uses inductive sensing technology to detect metallic targets without physical contact. Its 2 mm sensing range and 0–1.6 mm operating distance make it suitable for reliable presence and position detection of metal components in automated machinery.

Industrial Automation Applications

The sensor is suitable for machine position monitoring, component presence detection, conveyor equipment, automated production machinery, material handling systems and other factory automation applications where dependable metallic object detection is required.

Stainless-Steel Construction

The sensor features a V2A stainless-steel housing (1.4305 / 303) with an M12 × 1 threaded design. This robust construction makes the IF6027 suitable for demanding industrial environments and applications where durable sensor construction is important.

Electrical Performance

The IF6027 operates across a wide 10–55 V DC supply range and uses a PNP normally-open output. It provides a high 1000 Hz switching frequency, while the switching output supports up to 125 mA continuous current under the specified operating conditions.

Long 6 m Cable

The sensor is supplied with a 6 m PUR cable, providing extended connection length for machinery and installations where the sensor is positioned away from the control cabinet or connection point. The cable uses three 0.34 mm² conductors.

Protection and Status Indication

The IF6027 provides IP67 protection and incorporates reverse-polarity, short-circuit and overload protection. A yellow LED provides convenient switching-status indication during installation, commissioning and maintenance.

Operational Advantages

• Reliable non-contact metal detection
• High 1000 Hz switching frequency
• Wide 10–55 V DC operating range
• Durable stainless-steel housing
• Flush mounting for machine integration
• Extended 6 m PUR cable
• IP67 protection for industrial environments
• LED switching-status indication
• Suitable for factory automation and industrial machinery

The IFM IF6027 IFB3002-BPKG/V2A/10-55V/6M/BH is a reliable industrial proximity sensor for machine detection and automated production applications. It is a suitable choice for customers looking for Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE, and Industrial Automation Components UAE.
