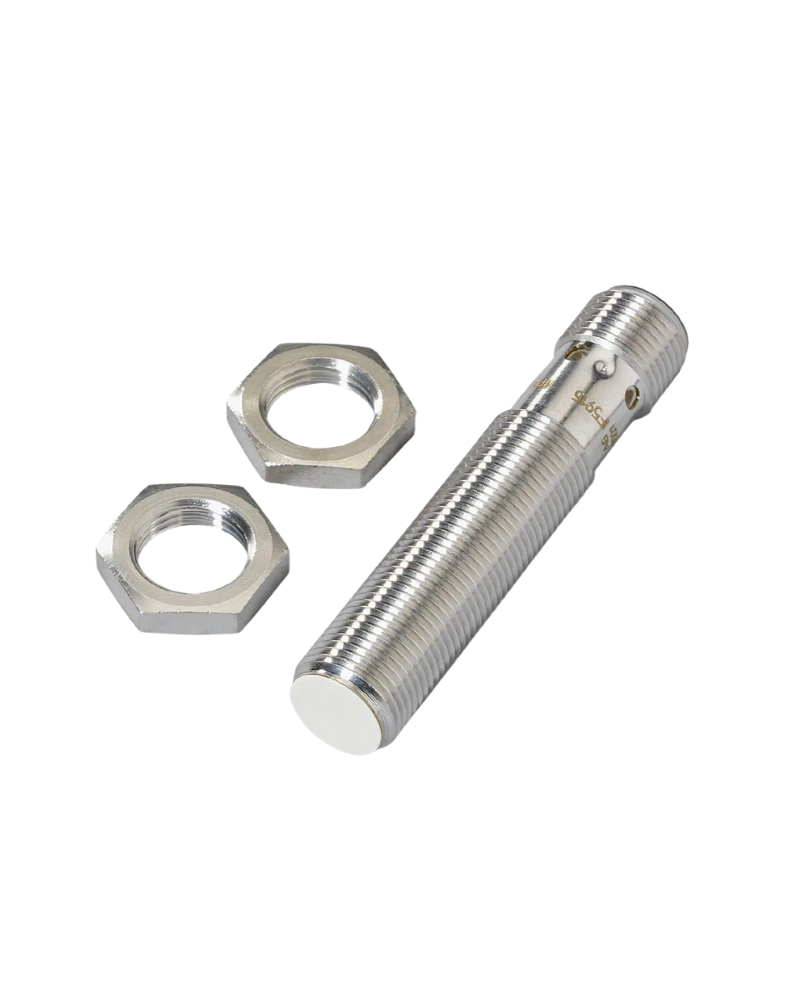

The IFM IF6026 IFK3007-BNKG/US is a 7 mm inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial machinery, factory automation, and machine position monitoring applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IF6026 inductive sensor, model IFK3007-BNKG/US, provides reliable and precise non-contact detection of metallic objects in industrial automation applications. With a 7 mm sensing range, NPN normally-closed output, and robust M12 × 1 threaded construction, this sensor is designed for dependable machine and process monitoring.
The sensor is suitable for industrial, mobile, cooling, and lubricating applications and is designed to provide reliable detection in demanding operating environments. Its increased sensing range and low sensor tolerances support stable object detection in automated machinery and factory equipment.
• IFM IF6026 inductive proximity sensor
• Model: IFK3007-BNKG/US
• 7 mm sensing range
• Real sensing range: 7 ± 10%
• Operating distance: 0–5.7 mm
• Inductive non-contact metallic object detection
• NPN electrical design
• Normally-closed output
• 10–36 V DC operating voltage
• 800 Hz switching frequency
• 250 mA permanent switching output current
• M12 × 1 threaded housing
• Non-flush mounting
• Brass housing with white-bronze coating
• PC sensing face/material
• M12 connector connection
• IP67 protection rating
• Yellow LED switching-status indication
• Reverse-polarity protection
• Short-circuit protection
• Overload protection
• Suitable for industrial automation and factory machinery
The IFK3007-BNKG/US uses inductive sensing technology to detect metallic targets without physical contact. Its 7 mm sensing range provides a practical detection distance for machine components, metal workpieces, positioning applications, and automated production equipment.
The sensor is designed for industrial applications and factory automation. It can be used for machine position monitoring, component presence detection, conveyor systems, automated production equipment, material handling machinery, and other applications requiring reliable metallic object detection.
The IF6026 features an NPN normally-closed electrical design, with an operating voltage range of 10–36 V DC and a permanent switching output current of 250 mA. The M12 × 1 threaded housing and non-flush mounting design provide flexible installation on industrial machinery.
The sensor provides IP67 protection and incorporates reverse-polarity, short-circuit, and overload protection for reliable operation. Its brass housing with white-bronze coating provides a durable construction for industrial environments.
A yellow LED provides convenient switching-status indication, allowing operators and maintenance personnel to visually confirm sensor operation during machine setup, commissioning, and troubleshooting.
• Reliable metallic object detection
• Non-contact sensing reduces mechanical wear
• 7 mm sensing range for machine monitoring
• Suitable for factory automation equipment
• Supports machine position and presence detection
• Compact M12 × 1 threaded construction
• IP67 protection for demanding industrial environments
• Suitable for industrial, mobile, cooling, and lubricating applications
The IFM IF6026 IFK3007-BNKG/US is a dependable industrial proximity sensor for automated machinery and production systems. It is a suitable choice for customers looking for Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE, and reliable Industrial Automation Components UAE.
| Feature | Specification |
| Product Type | Inductive Sensor |
| Manufacturer | IFM |
| Product Code | IF6026 |
| Model | IFK3007-BNKG/US |
| Sensing Principle | Inductive |
| Sensing Range | 7 mm |
| Real Sensing Range Sr | 7 ± 10% |
| Operating Distance | 0–5.7 mm |
| Electrical Design | NPN |
| Output Function | Normally Closed (NC) |
| Operating Voltage | 10–36 V DC |
| Permanent Switching Current | 250 mA |
| Switching Frequency | 800 Hz |
| Housing Type | Threaded |
| Thread Designation | M12 × 1 |
| Mounting | Non-flush mountable |
| Connection | 1 × M12 connector |
| Housing Material | Brass, white-bronze coated |
