The IFM IF6024 inductive sensor, model IFB35,5-APKG/O.LED, is designed for reliable non-contact detection of metallic objects. With a 5.5 mm sensing range, PNP normally-closed output, 10–36 V DC operation, 800 Hz switching frequency and IP67 protection, it is ideal for industrial machinery, machine position monitoring and factory automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

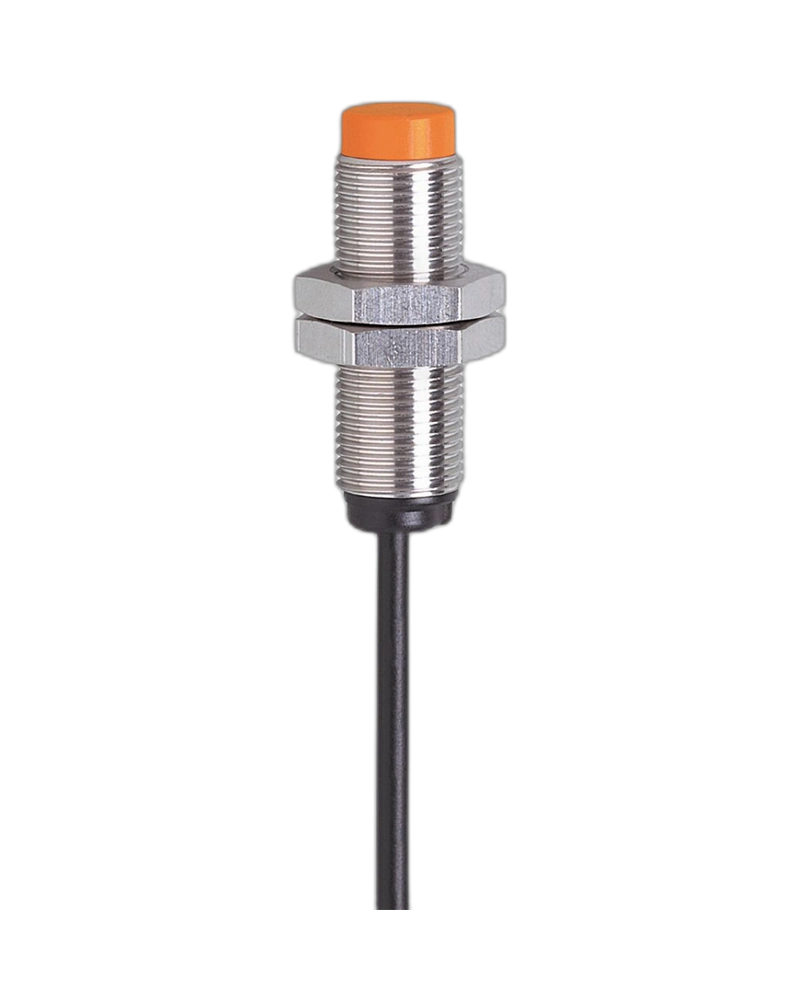

The IFM IF6024 inductive sensor, model IFB35,5-APKG/O.LED, is designed for dependable metallic object detection in industrial machinery, automated production equipment and factory automation systems. Its compact M12 × 1 threaded housing and approximately 38 mm housing length make it suitable for installations where space is limited.
The sensor provides a 5.5 mm nominal sensing range with a guaranteed sensing range of 0–4.45 mm. Its DC PNP normally-closed output allows connection to compatible PLCs, controllers and industrial automation systems for reliable machine monitoring and position detection.
• IFM IF6024 inductive proximity sensor
• Model: IFB35,5-APKG/O.LED
• 5.5 mm nominal sensing range
• Real sensing range: 5.5 ± 10%
• Guaranteed sensing range: 0–4.45 mm
• Non-contact metallic object detection
• DC PNP electrical design
• Normally-closed output
• 10–36 V DC operating voltage
• 800 Hz switching frequency
• 150 mA permanent switching current
• M12 × 1 threaded housing
• Approx. 38 mm housing length
• Non-flush mounting
• 2 m PVC connection cable
• 3 × 0.14 mm² cable conductors
• Brass housing with white-bronze coating
• PBT construction material
• IP67 protection rating
• 10 °C to +50 °C ambient operating temperature
• Reverse-polarity protection
• Short-circuit protection
• Overload protection
• Yellow LED switching indication
The IF6024 uses inductive sensing technology to detect metallic objects without physical contact. This contactless detection method helps reduce mechanical wear and provides dependable operation for repetitive industrial processes.
The 5.5 mm nominal sensing range makes the sensor suitable for detecting metallic components, machine parts and other suitable targets used in automated machinery.
The sensor features an M12 × 1 threaded housing with an approximate length of 38 mm. Its compact construction is suitable for machinery and equipment where installation space is restricted.
The brass housing with white-bronze coating and PBT construction provide a robust sensor design for suitable industrial environments.
The IF6024 operates with a 10–36 V DC supply and uses a DC PNP normally-closed output. Its 800 Hz switching frequency supports fast and repetitive object detection in automated machinery.
The 150 mA permanent switching current allows the sensor to be integrated with compatible industrial control and automation equipment.
The IF6024 features IP67 protection for dependable operation against dust and water ingress under specified conditions. Reverse-polarity, short-circuit and overload protection further support reliable electrical operation.
The sensor is designed for an ambient operating temperature range of 10 °C to +50 °C.
The integrated yellow LED provides clear visual indication of the switching status. This assists technicians during installation, commissioning, maintenance and troubleshooting.
The IF6024 can be used in a variety of industrial automation applications, including:
The PNP normally-closed output makes the IF6024 suitable for integration with compatible PLCs, controllers and industrial automation equipment. It can be used for machine position sensing, object presence detection and automated process control.
For businesses searching for an Industrial Sensors Supplier UAE or Proximity Sensors Supplier UAE, the IF6024 provides a compact and dependable sensing solution for industrial machinery and automation applications.
The IFM IF6024 combines reliable inductive sensing, compact construction and practical electrical protection features for industrial applications. Its 5.5 mm sensing range, PNP normally-closed output, 800 Hz switching frequency and IP67 protection make it a suitable choice for machine monitoring, metallic object detection and Industrial Automation UAE applications.
| Feature | Specification |
| Product Code | IF6024 |
| Manufacturer | IFM |
| Model | IFB35,5-APKG/O.LED |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive Proximity Sensor |
| Detection Principle | Inductive |
| Electrical Design | DC PNP |
| Output Function | Normally Closed (NC) |
| Operating Voltage | 10–36 V DC |
| Nominal Sensing Range | 5.5 mm |
| Real Sensing Range | 5.5 ± 10% |
| Guaranteed Sensing Range | 0–4.45 mm |
| Switching Frequency | 800 Hz |
| Permanent Switching Current | 150 mA |
| Housing Type | Threaded |
| Thread Size | M12 × 1 |
