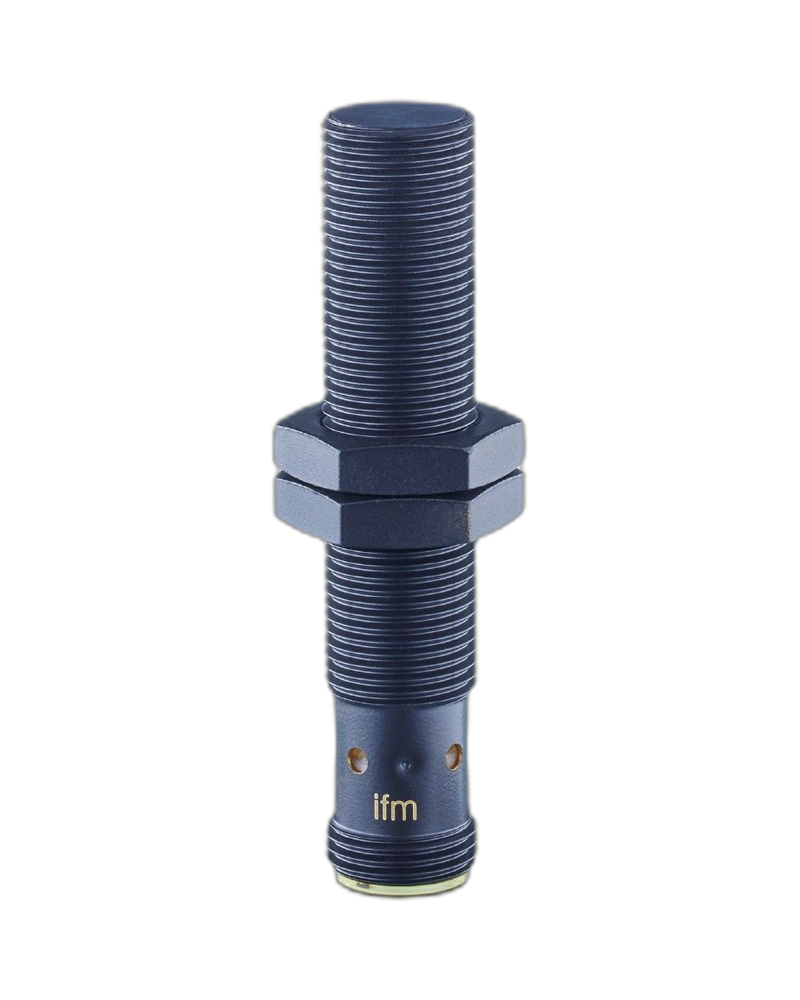

The IFM IF6015 inductive proximity sensor with model IFK3004BBPKG/SC/US-104 is designed for dependable non-contact detection of metallic objects in industrial machinery, production equipment and automated systems. Its compact threaded M12 × 1 construction, 4 mm sensing range and PNP normally-open output make it a practical sensing component for machine position detection, component presence monitoring and factory automation.

The sensor operates on 10–36 V DC and provides a 400 Hz switching frequency, allowing it to handle repetitive detection tasks in industrial automation systems. Its flush-mountable design enables convenient installation in compatible metal fixtures and machine assemblies.

Key Features

• IFM IF6015 inductive proximity sensor
• Model: IFK3004BBPKG/SC/US-104
• 4 mm nominal sensing range
• Real sensing range: 4 ± 10%
• Operating distance: 0–3.25 mm
• Inductive non-contact metal detection
• DC PNP electrical design
• Normally-open output function
• 10–36 V DC operating voltage
• 400 Hz switching frequency
• 250 mA switching output current
• M12 × 1 threaded housing
• Approx. 60 mm housing length
• Flush-mountable construction
• M12 connector connection
• Gold-plated connector contacts
• Brass housing with anti-stick coating
• Black PBT active face
• IP67 protection rating
• -25 °C to +70 °C ambient operating temperature
• Reverse-polarity protection
• Short-circuit protection
• Overload protection
• Yellow LED switching-status indication
• Suitable for machine position detection
• Suitable for metallic object detection
• Suitable for factory automation and industrial machinery

Design & Functionality

The IF6015 uses an inductive sensing principle, allowing metallic targets to be detected without physical contact. This non-contact operation reduces mechanical wear and makes the sensor suitable for repeated machine cycles, automated production processes and component monitoring.

With a 4 mm nominal sensing range, the sensor provides reliable detection when an appropriate metallic target enters the sensing zone. The real sensing range is specified as 4 ± 10%, with an operating distance of 0–3.25 mm. The actual detection distance can vary according to the material of the target.

Metal Target Detection

The IF6015 is suitable for detecting common metallic materials. Its correction factors are approximately:

• Steel: 1.0
• Stainless steel: 0.7
• Brass: 0.5
• Aluminium : 0.4
• Copper: 0.3

This makes the sensor useful for applications where machines need to identify the presence, position or movement of metallic components.

PNP Normally-Open Output

The sensor features a DC PNP normally-open output, allowing it to provide a switching signal to compatible PLCs, machine controllers and industrial automation systems.

The switching output supports a 250 mA permanent current rating, while integrated protection features help protect the sensor during normal industrial operation.

Industrial Automation Applications

The IF6015 can be integrated into a wide range of Industrial Automation UAE applications, including:

• Machine position monitoring
• Metallic component detection
• Automated assembly equipment
• Conveyor systems
• Production machinery
• Material handling equipment
• Packaging machinery
• Machine tool applications
• Presence and absence detection
• Factory automation systems

Its compact M12 × 1 threaded construction makes it suitable for installation in machinery where space and reliable positioning are important.

Flush-Mountable M12 Construction

The IF6015 features an M12 × 1 threaded metal housing with a length of approximately 60 mm. It is designed for flush mounting and uses an M12 A-coded connector with gold-plated contacts.

The brass housing with anti-stick coating and PBT active face provide a robust construction for industrial environments.

Protection & Reliability

The sensor has an IP67 protection rating, providing protection against dust ingress and water exposure under the applicable IP test conditions. It is specified for an ambient temperature range of -25 °C to +70 °C.

Integrated reverse-polarity, short-circuit and overload protection further support dependable operation in industrial automation applications.

LED Switching Indication

Four yellow LEDs provide visible switching-status indication, allowing operators and maintenance personnel to quickly identify the sensor's switching condition during machine setup, inspection and troubleshooting.

Integration with Industrial Automation Systems

The IF6015 can be used as part of Industrial Automation Components UAE and Factory Automation Components where accurate metallic object detection is required. Its PNP output and DC operating range allow connection to compatible industrial control systems.

For businesses looking for an Industrial Sensors Supplier UAE, the IF6015 provides a compact solution for machine sensing, position detection and metallic object monitoring.

Operational Advantages

• Non-contact metallic object detection
• 4 mm sensing range
• PNP normally-open switching output
• 10–36 V DC operating voltage
• 400 Hz switching frequency
• 250 mA switching output current
• Flush-mountable M12 × 1 housing
• M12 connector connection
• IP67 protection
• -25 °C to +70 °C operating temperature
• Reverse-polarity protection
• Short-circuit protection
• Overload protection
• Visible LED switching indication
• Suitable for PLC-based automation systems
• Suitable for machine position monitoring

The IFM IF6015 IFK3004BBPKG/SC/US-104 is a reliable inductive proximity sensor for industrial machinery and automation applications. Its combination of 4 mm sensing, PNP normally-open output, 400 Hz switching frequency, flush-mountable M12 housing and IP67 protection makes it a strong choice for metallic object detection and machine position monitoring.
