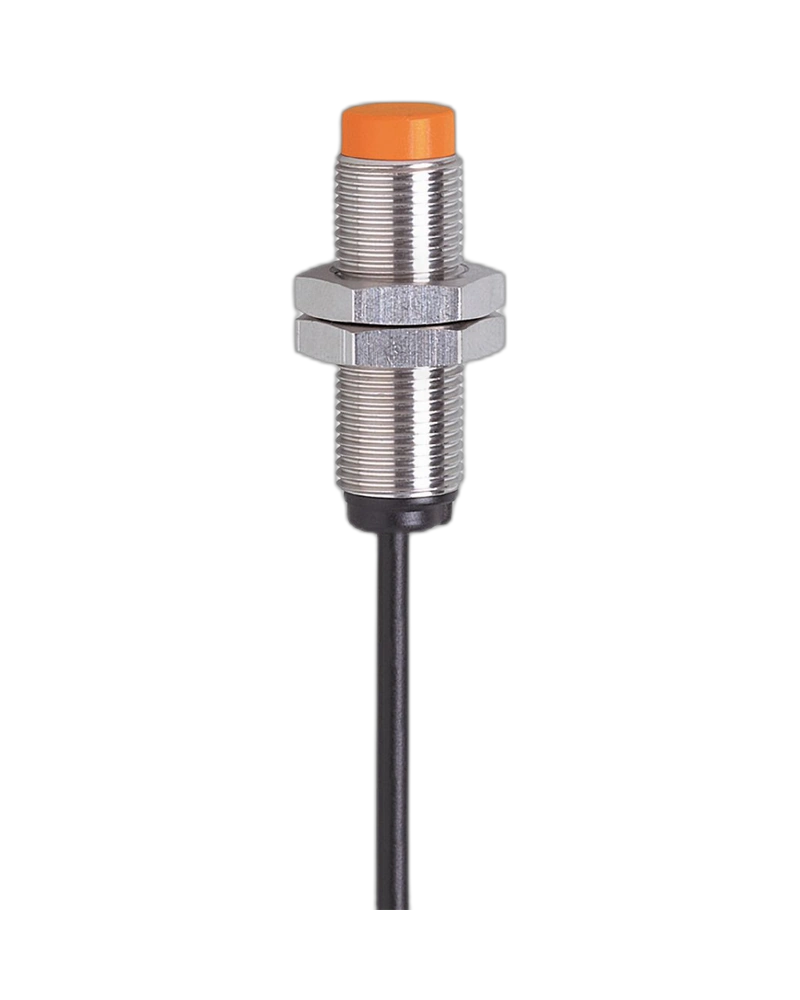

The IF6014 IFB35,5-BPKG/2M/PVC/OLED is an IFM inductive proximity sensor designed for precise non-contact detection of metallic objects in industrial automation and machinery. It features a 5.5 mm sensing range, PNP normally-open output, 10–36 V DC operation, 800 Hz switching frequency, compact M12 × 1 housing and IP67 protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IF6014 IFB35,5-BPKG/2M/PVC/OLED by IFM is a compact inductive proximity sensor designed for reliable and precise detection of metallic objects in industrial machinery, factory automation and production systems. Its particularly short housing makes it an excellent choice for applications where installation space is restricted while dependable position and object detection are required.
Using inductive sensing technology, the IF6014 detects suitable metallic targets without requiring physical contact. This non-contact operating principle makes the sensor suitable for repetitive detection tasks and helps avoid the mechanical wear associated with conventional contact switches.
The sensor provides a 5.5 mm nominal sensing range, with a real sensing range of 5.5 ± 10% mm and a guaranteed operating range of 0 to 4.45 mm. This makes it suitable for detecting metallic machine components, workpieces, fixtures, moving parts and other suitable targets in automated processes.
The IF6014 features a DC PNP normally-open output and operates with a 10–36 V DC supply voltage. Its electrical configuration allows integration with compatible PLCs, controllers and industrial automation equipment. The sensor has a maximum switching-output voltage drop of 2.5 V and a permanent switching output current rating of 150 mA.
A major advantage of the IF6014 is its very high switching frequency of 800 Hz. This enables the sensor to support fast and repetitive detection tasks in production machinery, conveyors, automated assembly equipment and other high-speed industrial applications.
The sensor features a short M12 × 1 threaded housing with a length of approximately 38 mm. This particularly compact design makes it suitable for machines and equipment where conventional sensors may not fit due to restricted installation space. IFM specifically describes the product as suitable for use in limited spaces and for precise position detection on machines.
The IF6014 is designed for non-flush mounting. Correct installation clearance should therefore be maintained according to the manufacturer's mounting requirements to ensure reliable sensing performance.
The sensor's housing is made from brass with a white-bronze coating, with PBT used as part of the sensor construction. This robust construction is intended for demanding industrial environments.
The IF6014 has an IP67 protection rating, providing protection against dust and water ingress under the specified conditions. It is designed for an ambient temperature range of 10 °C to +50 °C according to the available product specifications.
The product is supplied with a 2 m PVC cable containing three 0.14 mm² conductors. This provides a direct wired connection for suitable industrial control installations. A visual switching indicator is included through the sensor's LED arrangement, supporting easier installation and commissioning.
The IF6014 is a suitable choice for businesses searching for Industrial Sensors, Proximity Sensors, Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE, and Sensor Supplier UAE for industrial automation, machine control and factory equipment.
• IFM IF6014 inductive proximity sensor
• Model: IFB35,5-BPKG/2M/PVC/OLED
• 5.5 mm nominal sensing range
• Real sensing range: 5.5 ± 10%
• Guaranteed sensing range: 0–4.45 mm
• DC PNP electrical design
• Normally-open output
• 10–36 V DC operating voltage
• 800 Hz switching frequency
• 150 mA switching output current
• M12 × 1 threaded housing
• Approx. 38 mm housing length
• Particularly short housing
• Non-flush mounting
• 2 m PVC connection cable
• 3 × 0.14 mm² conductors
• Brass white-bronze-coated housing
• PBT construction material
• IP67 protection
• 10 °C to +50 °C ambient operating temperature
• Short-circuit protection
• Overload protection
• Reverse-polarity protection
• LED switching indication
The IF6014 operates using the inductive proximity sensing principle. The sensor detects metallic targets by monitoring changes in its electromagnetic sensing field.
When a suitable metallic object enters the detection zone, the sensor switches its PNP output. The resulting signal can be supplied to a compatible PLC, controller or machine-control system.
Because detection occurs without physical contact, the sensor is suitable for repetitive industrial applications where components need to be detected many times during a production cycle.
The IF6014 has a 5.5 mm nominal sensing range. The real sensing range is specified as 5.5 ± 10% mm, while the guaranteed operating range is 0 to 4.45 mm.
Actual detection performance can depend on the target's material, dimensions, shape and installation conditions.
The specified correction factors are:
These correction factors should be considered when designing an application involving different metallic target materials.
One of the most useful characteristics of the IF6014 is its 800 Hz switching frequency.
This high switching rate makes the sensor suitable for fast repetitive detection applications, including:
The high switching frequency makes the IF6014 particularly useful where a sensor needs to respond rapidly to repeated target movements.
The IF6014 features an M12 × 1 threaded housing with a length of approximately 38 mm. Its particularly short construction is designed for applications where installation space is limited.
This makes the sensor useful for compact machines, fixtures and automation assemblies where a longer sensor body could interfere with surrounding components.
The compact housing can be particularly valuable for Industrial automation companies in UAE developing custom machinery and factory automation equipment.
The IF6014 uses a PNP normally-open output.
When a metallic target is detected, the output changes state and can provide a signal to compatible industrial control equipment.
This configuration is suitable for applications involving:
The IF6014 can be integrated into a wide range of Industrial Automation Solutions in UAE.
The sensor can detect metallic machine components and moving parts to provide accurate position feedback.
It can verify whether metallic components or workpieces are present at specific positions within an automated machine.
The sensor can detect suitable metallic products or components as they move through a defined sensing location.
With its 800 Hz switching frequency, the IF6014 can be considered for fast repetitive detection and counting applications.
The sensor can provide feedback to confirm component position during automated assembly sequences.
The IF6014 can be integrated into machinery where repeated non-contact detection of metal components is required.
It can be used in suitable packaging equipment for position detection and machine-cycle monitoring.
The IF6014 can function as part of larger Industrial Automation Systems in UAE, providing proximity feedback to compatible PLCs and controllers.
It can be combined with other Industrial Automation Components UAE, such as:
For Industrial Automation Suppliers UAE, the IF6014 provides a compact, high-speed inductive sensing solution for machine builders, automation integrators and manufacturing facilities.
The IF6014 is supplied with a 2 m PVC cable containing three 0.14 mm² conductors.
The cable provides a direct connection to compatible industrial control equipment.
The sensor operates from 10–36 V DC and has a current consumption of approximately 15 mA at 24 V.
Electrical compatibility between the sensor and connected PLC or controller should be confirmed before installation.
The IF6014 provides an IP67 protection rating, helping protect the sensor against dust and water ingress under the specified test conditions.
The specified ambient operating temperature is 10 °C to +50 °C.
The sensor also incorporates:
These features help support dependable electrical operation when the sensor is correctly installed and used within its specified operating limits.
The IF6014 uses a brass housing with a white-bronze coating, combined with PBT construction material. This gives the sensor a robust design for industrial machinery and factory environments.
The threaded M12 × 1 body allows straightforward mechanical installation using suitable mounting hardware. Two securing nuts are supplied with the product.
The IF6014 includes LED indication for monitoring sensor switching status.
This visual feedback can help technicians during:
The LED indication makes it easier to confirm sensor response during machine setup.
For customers searching for an Industrial Sensors Supplier UAE, the IF6014 offers a compact inductive proximity sensor for high-speed metallic object detection.
It is also relevant to searches for:
The sensor is suitable for machine builders, system integrators, manufacturing companies and industrial maintenance applications.
The IF6014 can form part of an Industrial Equipment & Supplies in UAE portfolio for customers requiring industrial sensing and automation components.
It can support machinery classified under Industrial Equipment in UAE, particularly equipment involving automated production, conveyors, assembly systems, packaging machinery and material handling.
The sensor can also complement broader Industrial Electrical Equipment, Electrical Products in UAE and factory automation components.
The IF6014 IFB35,5-BPKG/2M/PVC/OLED is a compact and high-speed IFM inductive proximity sensor designed for precise metallic object detection. With a 5.5 mm sensing range, 800 Hz switching frequency, PNP normally-open output, M12 × 1 / 38 mm housing, 10–36 V DC operation, 2 m PVC cable and IP67 protection, it is well suited to machine position detection, high-speed counting, conveyors, assembly equipment and factory automation.
| Feature | Specification |
| Product Code | IF6014 |
| Manufacturer | IFM |
| Model / Part Number | IFB35,5-BPKG/2M/PVC/OLED |
| Product Type | Inductive Sensor |
| Sensor Category | Inductive / Proximity Sensor |
| Detection Principle | Inductive |
| Operating Voltage | 10–36 V DC |
| Nominal Supply Voltage | 24 V DC |
| Current Consumption | 15 mA at 24 V |
| Guaranteed Operating Range | 0–4.45 mm |
| Housing Type | Threaded Cylindrical |
