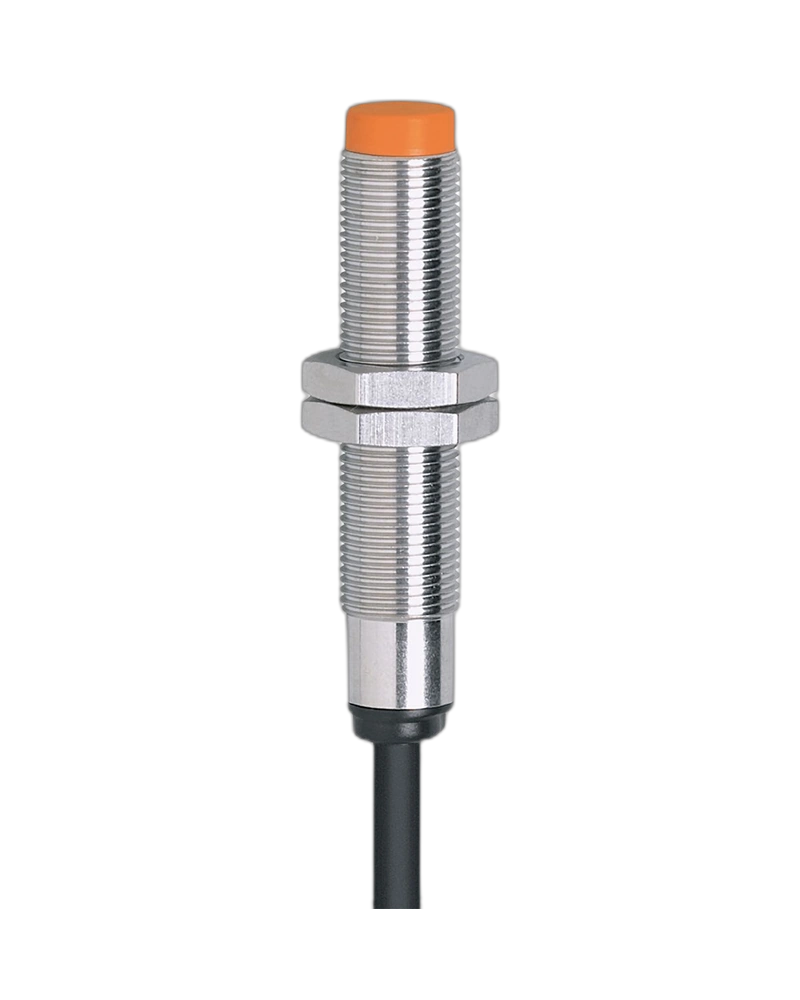

The IF6001 IFB3004-BPKG/PULLDOWN 2 KOHM is an IFM inductive proximity sensor designed for precise non-contact detection of metallic objects in industrial automation and machinery. It features a 4 mm sensing range, PNP normally-open output, 18–32 V DC operation, 2 kΩ internal pull-down resistance, 200 Hz switching frequency and IP67 protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IF6001 IFB3004-BPKG/PULLDOWN 2 KOHM inductive sensor by IFM is designed for reliable and precise non-contact detection of metallic objects in industrial machinery, factory automation and machine-control applications. Its particularly short housing makes it suitable for installations where available mounting space is limited, while its robust metal construction supports reliable operation in demanding industrial environments.
The IF6001 uses inductive proximity sensing technology to detect metallic targets without physical contact. This makes it suitable for applications where the presence, position or movement of metal components needs to be monitored repeatedly. Non-contact detection can help reduce mechanical wear associated with conventional contact-based switches and provide dependable feedback to automated control systems.
The sensor provides a 4 mm nominal sensing range, with a real sensing range of 4 ± 10% mm and an operating distance of 0 to 3.25 mm. This sensing performance makes the IF6001 suitable for detecting metal components, machine parts, workpieces and other metallic targets in automated production and machinery applications.
The IF6001 uses a DC PNP electrical design with a normally-open output function. It operates from an 18–32 V DC supply and has an internal 2 kΩ pull-down resistance. This configuration is suitable for compatible industrial control architectures and provides a defined output arrangement for machine automation applications.
With a 200 Hz switching frequency, the IF6001 is suitable for repetitive proximity detection in machinery, conveyors, production systems and automated material-handling equipment. Its switching output can provide feedback to compatible PLCs and industrial controllers.
One of the key characteristics of this sensor is its particularly short housing. The IFM documentation specifies an M12 × 1 threaded housing with a 38 mm length, making the IF6001 useful for installations where sensor space is restricted. Unlike flush-mountable versions, the IF6001 is designed for non-flush mounting, so appropriate installation clearances should be maintained according to the manufacturer's requirements.
The housing is made from brass with a white-bronze coating, while the sensing face uses polycarbonate (PC). This robust construction is intended for industrial environments and machine applications where reliable sensing performance is required.
The IF6001 provides an IP67 protection rating and can operate across an ambient temperature range of -25 °C to +80 °C. These characteristics make it suitable for a broad range of industrial automation and machinery environments.
The sensor is supplied with a 2 m PVC cable with three 0.34 mm² conductors, providing a direct wired connection for suitable industrial control installations. A yellow LED switching-status indicator provides visual feedback during installation, commissioning and maintenance.
The IF6001 is a suitable choice for businesses looking for Industrial Sensors, Proximity Sensors, Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE and reliable sensing components for industrial automation equipment.
• IFM IF6001 inductive proximity sensor
• Model: IFB3004-BPKG/PULLDOWN 2 KOHM
• 4 mm sensing range
• Real sensing range: 4 ± 10%
• Operating distance: 0–3.25 mm
• DC PNP electrical design
• Normally-open output
• 18–32 V DC operating voltage
• 2 kΩ internal pull-down resistance
• 200 Hz switching frequency
• 125 mA continuous current rating
The IF6001 works according to the inductive proximity sensing principle. When a metallic target enters the sensor's detection zone, the sensor detects the change in its electromagnetic field and switches its output without requiring physical contact with the target.
This operating principle makes the IF6001 suitable for repeated detection tasks in industrial machinery. It can monitor machine components, metal workpieces, moving parts and other suitable metallic targets while remaining physically separated from the detected object.
The sensor's 4 mm sensing range provides a practical detection distance for many machine-control applications. The real sensing range is specified as 4 ± 10% mm, while the operating distance is 0–3.25 mm.
The IF6001 is specifically designed with a particularly short housing. Its M12 × 1 threaded body has a specified length of 38 mm, making it suitable for machinery and equipment where installation space is limited.
This compact construction can be useful for machine builders and Industrial automation companies in UAE working with compact equipment, fixtures and machine assemblies.
The sensor is non-flush mountable, meaning the sensing face must be installed according to the required mounting conditions rather than being completely embedded within the surrounding metal. Correct mounting is important for achieving the specified sensing performance.
The IF6001 features a DC PNP normally-open output.
When the sensor detects a suitable metallic target, the output switches according to its normally-open configuration. This allows the sensor to provide a detection signal to compatible PLC inputs, controllers and industrial automation equipment.
The PNP output configuration can be used for applications such as:
A distinguishing characteristic of the IFB3004-BPKG/PULLDOWN 2 KOHM version is its integrated 2 kΩ pull-down resistance.
The internal pull-down resistor forms part of the sensor's electrical design and can be useful when integrating the sensor into compatible control circuits. This product-specific characteristic should be considered when selecting the sensor for a particular PLC, controller or machine-control application.
The IF6001 provides a 4 mm sensing range and a real sensing range of 4 ± 10%. Its specified correction factors vary depending on the metallic target material.
The manufacturer's specifications list the following correction factors:
Target geometry, size, material and installation conditions should be considered when designing the sensing application.
The IF6001 can be integrated into a wide range of Industrial Automation Solutions in UAE.
The sensor can detect metallic machine components and provide position feedback to a compatible control system.
It can detect the presence or absence of metallic workpieces during automated production and assembly operations.
The IF6001 can provide switching signals when suitable metallic products or components pass a defined sensing location on a conveyor.
The sensor can be incorporated into automated machines requiring non-contact detection of machine components or workpieces.
It can help confirm whether metallic components are present at specific stages of an automated assembly sequence.
The IF6001 can provide detection feedback in suitable automated transfer and material-handling applications.
Its switching output can be used as an input for counting metallic objects passing through a production or handling process.
The IF6001 can function as part of larger Industrial Automation Systems in UAE, supplying proximity feedback to compatible PLCs, controllers and machine-control systems.
It can be integrated alongside other Industrial Automation Components UAE, including PLCs, control panels, actuators, motors, switches, drives and additional sensors.
For Industrial Automation Suppliers UAE, this product provides a compact inductive sensing option for machine builders, automation integrators and manufacturing facilities.
Its PNP normally-open output and 18–32 V DC operating range should be matched with the electrical requirements of the intended control system.
The IF6001 is supplied with a 2 m PVC cable containing three 0.34 mm² conductors. The cable provides a direct wired connection to the industrial control system.
The three-wire configuration is suitable for the sensor's DC PNP electrical design. Proper wiring and compatibility with the connected PLC or controller should be verified before installation.
The IF6001 provides IP67 protection, helping protect the sensor from dust and water ingress under the specified testing conditions.
It operates across an ambient temperature range of -25 °C to +80 °C, providing a wide operating range for industrial machinery and factory environments.
The sensor also includes:
These features help support reliable operation when the sensor is correctly installed and operated within its specified electrical limits.
The IF6001 uses a brass housing with a white-bronze coating and a polycarbonate sensing face. This construction is designed for industrial applications and demanding machine environments.
Its short metal housing provides a practical balance between compact installation and robust construction, making it suitable for industrial equipment where sensors may be exposed to normal machine operating conditions.
A yellow LED provides switching-status indication on the IF6001.
This visual indication can assist technicians during installation, commissioning and maintenance by making it easier to determine whether the sensor is responding to a detected target.
For businesses searching for an Industrial Sensors Supplier UAE, the IF6001 provides a practical inductive proximity sensing solution for machine automation and industrial equipment.
It is also suitable for customers searching for Proximity Sensors Supplier UAE, Sensor Supplier UAE, Automation Products Supplier UAE and Industrial Automation Equipment UAE.
The product can be considered for both new machine installations and suitable replacement applications where a short, non-flush M12 inductive sensor is required.
The IF6001 can form part of an Industrial Equipment & Supplies in UAE portfolio for companies supplying automation and electrical components to manufacturing and engineering customers.
As an industrial sensing component, it can support Industrial Equipment in UAE used in machine automation, production systems, conveyors, assembly equipment and material-handling applications.
It can also complement broader Industrial Electrical Equipment and Electrical Products in UAE used in industrial control and automation systems.
The IF6001 IFB3004-BPKG/PULLDOWN 2 KOHM is a compact IFM inductive proximity sensor designed for precise non-contact metal detection in industrial automation and machinery. Its 4 mm sensing range, PNP normally-open output, internal 2 kΩ pull-down resistance, short 38 mm housing, 2 m cable and IP67 protection make it a practical solution for machine position detection, component monitoring, conveyors and factory automation.
| Feature | Specification |
| Product Code | IF6001 |
| Manufacturer | IFM |
| Model / Part Number | IFB3004-BPKG/PULLDOWN 2 KOHM |
| Product Type | Inductive Sensor |
| Sensor Category | Inductive / Proximity Sensor |
| Electrical Design | DC PNP |
| Output Function | Normally Open (NO) |
| Operating Voltage | 18–32 V DC |
| Nominal Supply Voltage | 24 V DC |
| Current Consumption | < 15 mA |
| Internal Pull-Down Resistance | 2 kΩ |
| Sensing Range | 4 mm |
| Real Sensing Range (Sr) | 4 ± 10% mm |
| Operating Distance | 0–3.25 mm |
