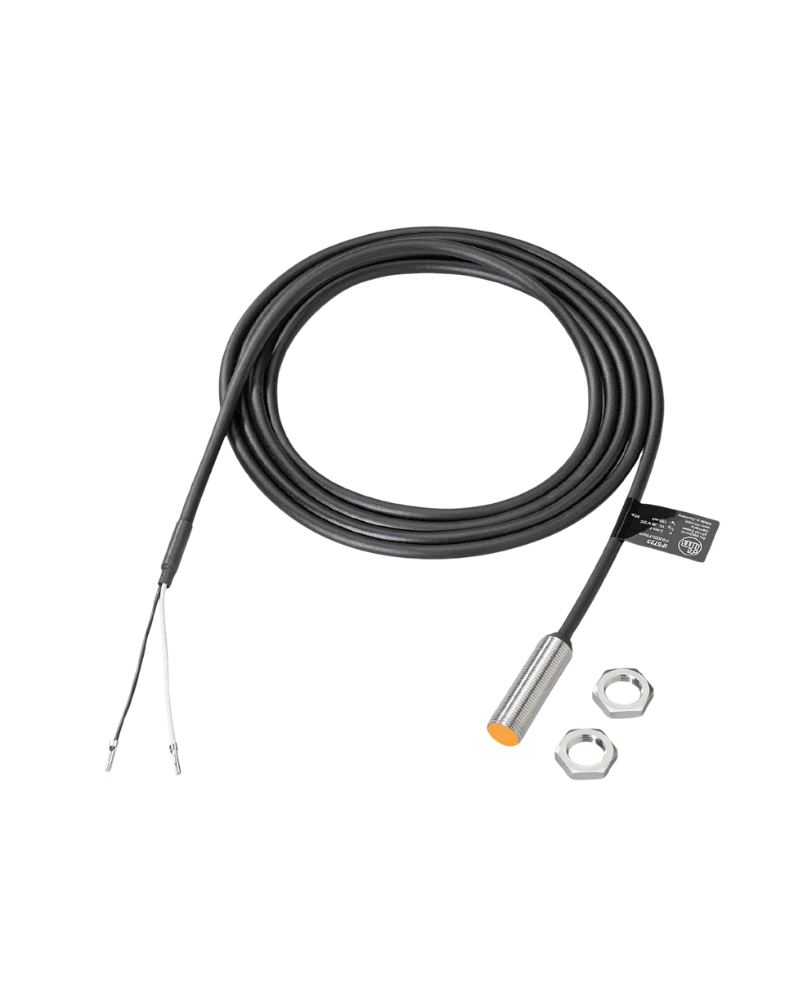

The IF5998 IFB3002-ANKG is an IFM inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation and factory applications. With a 2 mm sensing range, NPN normally-open output, 10–30 V DC operation, 500 Hz switching frequency and IP67 protection, it is suitable for machinery, conveyors and automated production systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IF5998 IFB3002-ANKG inductive sensor by IFM is designed for reliable and repeatable non-contact detection of metallic objects in industrial automation, machinery and factory production environments. Its compact threaded construction provides a practical sensing solution for applications where dependable proximity detection and straightforward machine integration are required.
Using inductive sensing technology, the IF5998 detects metallic targets without direct physical contact. This makes it suitable for repetitive industrial applications where the presence, position or movement of metal components needs to be monitored. The non-contact sensing principle can help reduce mechanical wear compared with conventional contact-based switching devices.
The IF5998 provides a 2 mm sensing range and is designed for reliable detection of suitable metallic targets within its specified operating distance. This makes it suitable for applications involving machine components, metal workpieces, fixtures and other metallic objects used in automated production processes.
The sensor uses a DC NPN electrical design with a normally-open output, providing a compatible switching signal for suitable industrial control systems. It operates from a 10–30 V DC supply and provides a switching frequency of up to 500 Hz, making it suitable for repetitive detection tasks in production machinery and automated equipment.
The IF5998 features a compact M12 × 1 threaded housing with a short overall construction. Its flush-mountable design allows the sensor to be installed into suitable metal machine structures while maintaining a practical installation profile.
The sensor is constructed with a robust metal housing and is designed for industrial operating conditions. Its IP67 protection rating provides protection against dust and water ingress under the specified conditions, while its -25 °C to +70 °C ambient operating temperature range allows it to be used across a broad range of factory and machinery environments.
The IF5998 incorporates short-circuit, overload and reverse-polarity protection, helping provide dependable electrical operation when correctly installed in an industrial automation system.
A visible yellow LED switching-status indicator provides convenient feedback during installation, commissioning and maintenance. The sensor uses an M12 connector, allowing connection to compatible industrial sensor cables and automation equipment.
The IF5998 is a suitable solution for businesses looking for Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE and a reliable Sensor Supplier UAE for machine automation, production equipment and factory automation applications.
The IF5998 operates using an inductive proximity sensing principle. When a metallic object enters the sensor's sensing zone, the sensor detects the target without making physical contact and switches its output.
This non-contact operation makes the sensor suitable for applications involving repeated detection of machine components, metal workpieces, moving parts and production materials.
The sensor can therefore be used where reliable presence or position detection is required without introducing mechanical contact between the sensor and the target.
The IF5998 uses an M12 × 1 threaded construction, providing a practical mounting format for industrial machinery and automation equipment.
Its compact design allows it to be incorporated into areas where installation space may be limited. The flush-mountable configuration is particularly useful for applications where the sensor needs to be installed within or close to a machine's metal structure.
For machine builders and Industrial automation companies in UAE, the compact design provides flexibility when designing equipment with restricted sensor mounting locations.
The IF5998 uses a DC NPN normally-open output configuration.
When a suitable metallic target is detected, the sensor changes its output state, allowing the detection signal to be processed by a compatible PLC, controller or industrial automation system.
This configuration can be used for:
The IF5998 is designed to detect metallic targets without physical contact. This makes it suitable for repetitive applications where a machine needs to determine whether a metal component or object is present at a particular position.
Typical target materials may include steel, stainless steel, brass, aluminium and copper, although the actual sensing performance depends on the target material, size, geometry and installation conditions.
The sensor should be installed according to the manufacturer's specified mounting and sensing requirements to achieve reliable detection performance.
The IF5998 can be incorporated into a wide range of Industrial Automation Solutions in UAE.
Machine Position Detection
The sensor can detect the position of metallic machine parts, slides, fixtures and moving components.
Metal Component Detection
It can identify the presence or absence of metallic workpieces during manufacturing and assembly processes.
Conveyor Systems
The sensor can provide switching signals when metal objects pass through a defined detection point on an automated conveyor.
Production Equipment
The IF5998 can be integrated into production machines that require reliable proximity detection for machine-control functions.
Assembly Machinery
It can help verify the presence or position of metal components during automated assembly operations.
Material Handling
The sensor can be used for detecting metallic components in automated transfer and material-handling equipment.
Counting Applications
The switching output can be used as an input for counting metal objects moving through a production or handling process.
The IF5998 can operate as part of broader Industrial Automation Systems in UAE, providing proximity feedback to compatible PLCs and industrial controllers.
It can be combined with other Industrial Automation Components UAE, including PLCs, control panels, actuators, motors, switches, drives and additional sensors.
For Industrial Automation Suppliers UAE, this sensor can serve as a compact automation component for machine builders, system integrators and industrial manufacturing facilities.
The IF5998 is designed for industrial applications and provides an IP67 protection rating, helping protect the sensor from dust and water ingress under the specified conditions.
Its -25 °C to +70 °C operating temperature range provides flexibility for many indoor factory and machinery environments.
The sensor also incorporates reverse-polarity, short-circuit and overload protection, helping support reliable operation within a properly designed industrial electrical installation.
The IF5998 includes a yellow LED switching-status indication, allowing technicians to visually confirm sensor switching during installation, testing and maintenance.
This can simplify troubleshooting by providing a direct visual indication when the sensor detects a suitable target.
For customers searching for an Industrial Sensors Supplier UAE, the IF5998 offers a practical inductive proximity sensing solution for industrial machinery and factory automation.
It is also relevant for customers searching for Proximity Sensors Supplier UAE, Sensor Supplier UAE, Automation Products Supplier UAE and Industrial Automation Equipment UAE.
The sensor can be used for new automation projects as well as suitable replacement applications where a compact inductive sensor is required.
The IF5998 can form part of an Industrial Equipment & Supplies in UAE portfolio for companies supplying industrial automation and electrical products to manufacturing and engineering businesses.
Its compact design and industrial protection make it suitable for integration into a wide range of Industrial Equipment in UAE, including automated machinery, production equipment and material-handling systems.
The IF5998 IFB3002-ANKG is a compact inductive proximity sensor designed for reliable non-contact metal detection in industrial automation applications. Its M12 threaded design, NPN normally-open output, 10–30 V DC operation and IP67 protection make it suitable for machinery, production equipment, conveyors and factory automation systems.
| Feature | Specification |
| Product Code | IF5998 |
| Manufacturer | IFM |
| Model / Part Number | IFB3002-ANKG |
| Product Type | Inductive Sensor |
| Operating Voltage | 10–30 V DC |
| Current Consumption | < 10 mA |
| Real Sensing Range | Approx. 2 ± 10% mm |
| Permanent Current Rating | 200 mA |
| Voltage Drop | Up to approx. 2.5 V |
| Hysteresis | Approx. 3–15% of Sr |
| Connection | M12 connector |
| Ambient Temperature | -25 °C to +70 °C |
| Switching Frequency | 500 Hz |
| Mounting | Flush mountable |
