The IF5997 IFB3004BANKG/US-104 is an IFM inductive proximity sensor designed for reliable non-contact metal detection in industrial automation and factory applications. With a 4 mm sensing range, NPN normally-open output, 10–30 V DC operation, 500 Hz switching frequency and IP67 protection, it is ideal for machinery, conveyors and automated production systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IF5997 IFB3004BANKG/US-104 inductive sensor by IFM is engineered for reliable and precise non-contact detection of metallic objects in industrial automation, machinery and factory production applications. Its particularly short housing makes it an excellent choice for installations where mounting space is restricted while reliable metal detection and repeatable switching performance are required.
The sensor uses inductive proximity sensing technology to detect metal objects without physical contact. This makes it suitable for applications where components, machine parts, workpieces or moving metallic objects need to be detected repeatedly during automated processes. By eliminating the need for mechanical contact with the target, the sensor can provide a practical solution for continuous machine operation.
The IF5997 offers a 4 mm sensing range with a real sensing range of 4 ± 10% mm and an operating distance of up to 3.24 mm. Its increased sensing range is particularly useful for applications where reliable detection at a greater distance is required while maintaining a compact sensor design.
The sensor features a DC NPN electrical design with a normally-open output. This configuration enables the IF5997 to provide a reliable switching signal to compatible PLCs, industrial controllers and automation systems. The sensor operates on a 10–30 V DC supply and supports a switching frequency of up to 500 Hz, making it suitable for repetitive detection tasks in industrial machinery and automated production equipment.

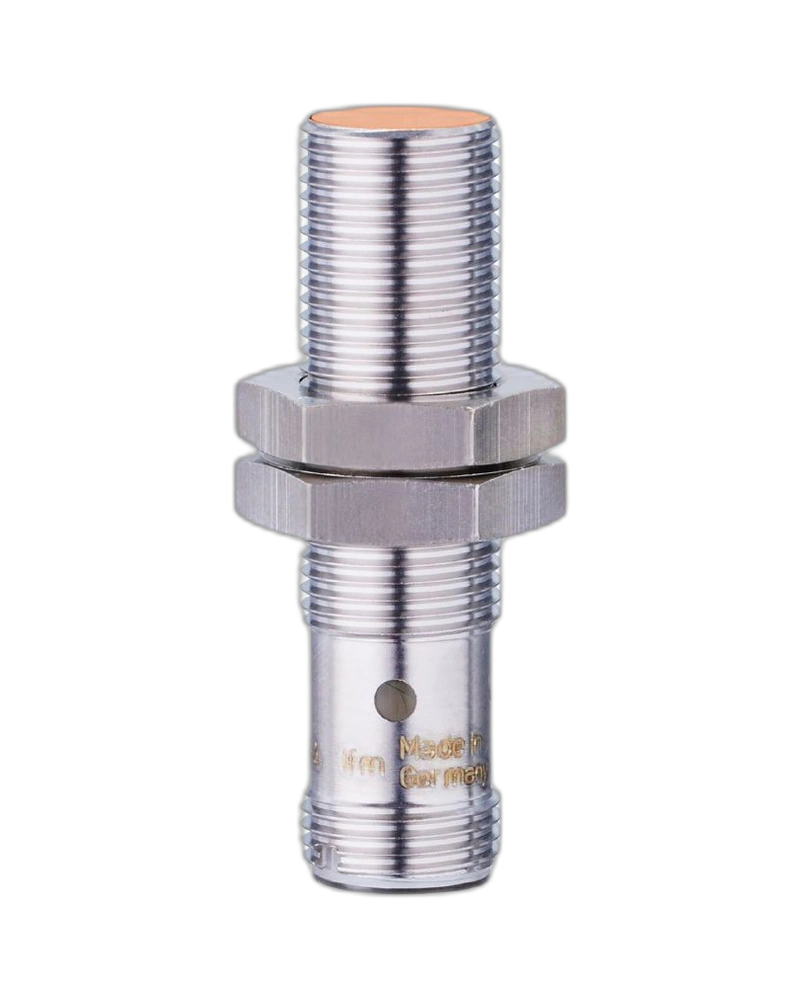

One of the main advantages of the IF5997 is its particularly short M12 × 1 threaded housing, with an overall length of only 45 mm. This compact form factor makes the sensor suitable for machine structures, fixtures and equipment where installation space is limited. The sensor is designed for flush mounting, providing a clean and practical installation in compatible metal machine structures.
The sensor has a robust metal housing made from brass with a white-bronze coating, while the sensing face uses orange PBT material. The LED window is made from PEI, and the supplied lock nuts are also manufactured from brass with a white-bronze coating. These construction characteristics support reliable operation in demanding industrial environments.
The IF5997 provides an IP67 protection rating, helping protect the sensor against dust and water ingress. It is designed for an ambient temperature range of -25 °C to +70 °C, making it suitable for a broad range of industrial machinery and factory environments.
The sensor uses an M12 A-coded connector with gold-plated contacts. Four yellow LEDs provide clear switching-status indication, helping operators and maintenance personnel identify the sensor's operating state during installation, commissioning and troubleshooting.
The IF5997 is an excellent option for businesses looking for Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE and a dependable Sensor Supplier UAE for industrial machinery and factory automation applications.
The IF5997 works using an inductive sensing principle, detecting metallic objects without direct physical contact. When a suitable metal target enters the sensor's detection zone, the sensor switches its NPN normally-open output.
This non-contact detection method makes the IF5997 suitable for repeated industrial detection tasks. It can monitor the presence or position of metal components, machine parts and workpieces without requiring a mechanical switch to touch the detected object.
The sensor's M12 × 1 threaded construction and 45 mm short housing make it particularly useful in machines where conventional sensors with longer housings may be difficult to install. Its flush-mountable construction also allows it to be integrated neatly into suitable machine structures.
The IF5997 provides a 4 mm nominal sensing range, giving it a longer detection distance than many compact proximity sensors.
Its real sensing range is specified as 4 ± 10% mm, with an operating distance of 0–3.24 mm. This increased sensing capability can help maintain reliable detection when a small amount of additional sensing distance is required in automated machinery.
The sensor's correction factors vary according to the metal being detected:
These values should be considered when designing applications involving different metallic target materials.
The IF5997 uses a DC NPN normally-open output, making it suitable for compatible industrial control systems.
When the sensor detects a suitable metallic target, its switching output changes state and can provide a detection signal to a PLC or automation controller.
This makes the sensor suitable for applications requiring:
The IF5997 is designed with a particularly short housing for applications where installation space is restricted.
Its M12 × 1 threaded body and 45 mm overall length make it a practical option for compact machinery, fixtures and automation equipment. This short construction can simplify sensor placement in areas where a longer sensor body would interfere with surrounding machine components.
For machine builders and Industrial automation companies in UAE, the compact design can provide additional flexibility when designing automated equipment and machine-control systems.
The IF5997 can be incorporated into a wide range of Industrial Automation Solutions in UAE.
Machine Position Detection
The sensor can detect the position of metallic moving parts, slides, machine components and mechanical fixtures.
Metal Component Detection
It can detect the presence or absence of metal workpieces and components during manufacturing and assembly processes.
Conveyor Automation
The sensor can monitor metallic objects moving along conveyor systems and provide switching signals to the control system.
Counting Applications
It can be used to detect individual metal objects passing a sensing point for automated counting and production monitoring.
Assembly Machinery
The IF5997 can confirm whether a metal component is present at a particular stage of an automated assembly process.
Material Handling Equipment
The sensor can provide object-detection feedback in automated material handling and transfer systems.
Production Machinery
It can support machine-control functions where reliable proximity detection of metallic components is required.
The IF5997 can operate as part of larger Industrial Automation Systems in UAE, providing proximity feedback to PLCs and industrial controllers.
It can be incorporated alongside other Industrial Automation Components UAE, such as PLCs, control panels, actuators, switches, drives and other industrial sensors.
For Industrial Automation Suppliers UAE, the IF5997 offers a compact and dependable sensing component for machine builders, system integrators and manufacturing facilities.
Its NPN normally-open output makes it suitable for compatible control architectures where this type of switching configuration is required.
The IF5997 is designed for industrial environments and provides an IP67 protection rating. This helps protect the sensor from dust and water ingress under the specified operating conditions.
The operating temperature range of -25 °C to +70 °C provides flexibility for a wide range of machinery and factory applications.
The sensor also incorporates reverse-polarity, short-circuit and overload protection, supporting dependable electrical operation when installed according to the manufacturer's requirements.
The IF5997 uses an M12 A-coded connector with gold-plated contacts, providing a practical connection solution for industrial sensor cabling.
Four yellow LEDs provide clear indication of the switching status. This visual feedback can make installation and maintenance easier by allowing technicians to quickly identify whether the sensor is responding to a detected target.
For customers searching for an Industrial Sensors Supplier UAE, the IF5997 provides a practical inductive sensing solution for metal detection, machine automation and factory applications.
It is also relevant for businesses searching for Proximity Sensors Supplier UAE, Sensor Supplier UAE, Automation Products Supplier UAE and Industrial Automation Equipment UAE.
The sensor can be used for both new machine construction and suitable replacement requirements where a compact M12 inductive proximity sensor is required.
The IF5997 can support Industrial Automation UAE requirements across manufacturing, engineering, machine building, packaging, material handling and factory production environments.
For companies involved in industrial automation, the sensor provides a straightforward way to add reliable non-contact metal detection to automated equipment.
It can also form part of an Industrial Equipment & Supplies in UAE portfolio, particularly for businesses supplying industrial electrical and automation components to manufacturing and engineering customers.
The IF5997 IFB3004BANKG/US-104 is a compact, robust and reliable inductive proximity sensor designed for metal detection in industrial automation. Its short M12 × 1 housing, 4 mm sensing range, NPN normally-open output and IP67 protection make it suitable for machinery, conveyors, production equipment and factory automation applications.
| Feature | Specification |
| Product Code | IF5997 |
| Manufacturer | IFM |
| Model / Part Number | IFB3004BANKG/US-104 |
| Electrical Design | DC NPN |
| Output Function | Normally Open (NO) |
| Sensing Range | 4 mm |
| Real Sensing Range (Sr) | 4 ± 10% mm |
| Operating Distance | 0–3.24 mm |
| Housing Type | Threaded |
| Sensing Face | PBT, orange |
| Permanent Current Rating | 200 mA |
| Maximum Voltage Drop | 2.5 V |
| Hysteresis | 3–15% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
| Ambient Temperature | -25 °C to +70 °C |
| Weight | Approx. 24.3 g |
| Pack Quantity | 1 piece |
