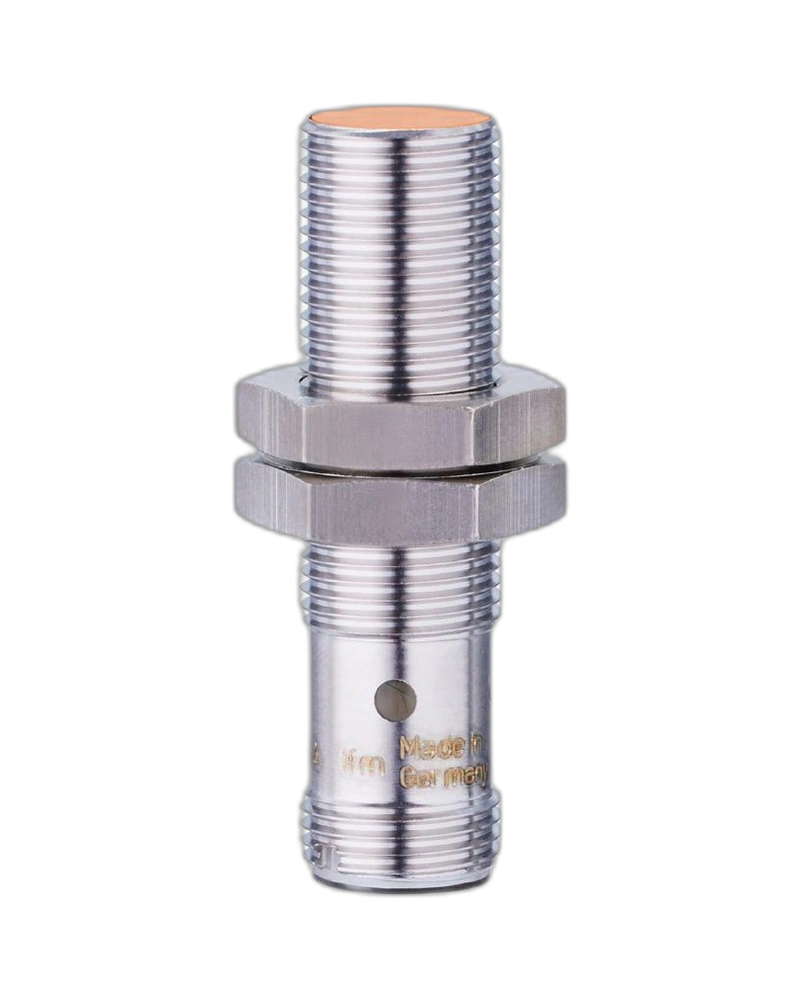

The IFM IFB2002-FRKG/US-104-IRF Inductive Sensor provides reliable non-contact metal detection for industrial automation applications. With a 2 mm sensing range, selectable PNP/NPN output, 10–36 V DC operation, and IP67 protection, it is suitable for automated machinery and production systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IFB2002-FRKG/US-104-IRF Inductive Sensor is designed for accurate and reliable metal object detection in Industrial Automation UAE applications. Its compact M12 x 1 threaded design and 2 mm sensing range make it suitable for machine monitoring, position detection, and automated production systems.
With PNP/NPN selectable output and normally open/normally closed operation, the sensor can be easily integrated with PLCs and industrial control systems. It operates from 10–36 V DC and supports a switching frequency of up to 1200 Hz.
The IP67 protection rating, short-circuit protection, and overload protection provide dependable performance in demanding industrial environments, making it a suitable choice for Industrial Sensors and Proximity Sensors applications.
• 2 mm sensing range
• M12 x 1 threaded design
• PNP/NPN selectable electrical design
• Normally open / normally closed selectable
• 10–36 V DC operating voltage
• Switching frequency up to 1200 Hz
• Flush-mountable installation
• IP67 protection rating
• Short-circuit protection
• Overload protection
• Yellow LED switching indication
• M12 A-coded connector
• Reliable non-contact metal detection
Ideal for factory automation, conveyor systems, assembly machinery, packaging equipment, machine tools, material handling systems, position detection, object counting, and automated production lines.
| Specification | Details |
|---|---|
| Product Model | IFB2002-FRKG/US-104-IRF |
| Part Number | IF5994 |
| Manufacturer | IFM Electronic |
| Product Type | Inductive Proximity Sensor |
| Sensing Range | 2 mm |
| Real Sensing Range (Sr) | 2 ± 10% mm |
| Operating Distance | 0–1.6 mm |
| Electrical Design | PNP/NPN |
| Output Function | Normally Open / Normally Closed, Selectable |
| Operating Voltage | 10–36 V DC |
| Switching Frequency | 1200 Hz |
| Permanent Current Rating | 150 mA |
| Maximum Leakage Current | 0.8 mA |
| Maximum Voltage Drop | 4.6 V |
| Short-Circuit Protection | Yes, pulsed |
| Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
| Mounting | Flush Mountable |
| Thread | M12 x 1 |
| Housing Material | Brass, white-bronze coated |
| Protection Rating | IP67 |
| Ambient Temperature | -25°C to +80°C |
| Connection | M12 connector |
| Connector Coding | A-coded |
| Status Indicator | 4 × 90° yellow LED |
| Dimensions | M12 x 1 / L = 45 mm |
| Weight | 24.6 g |
