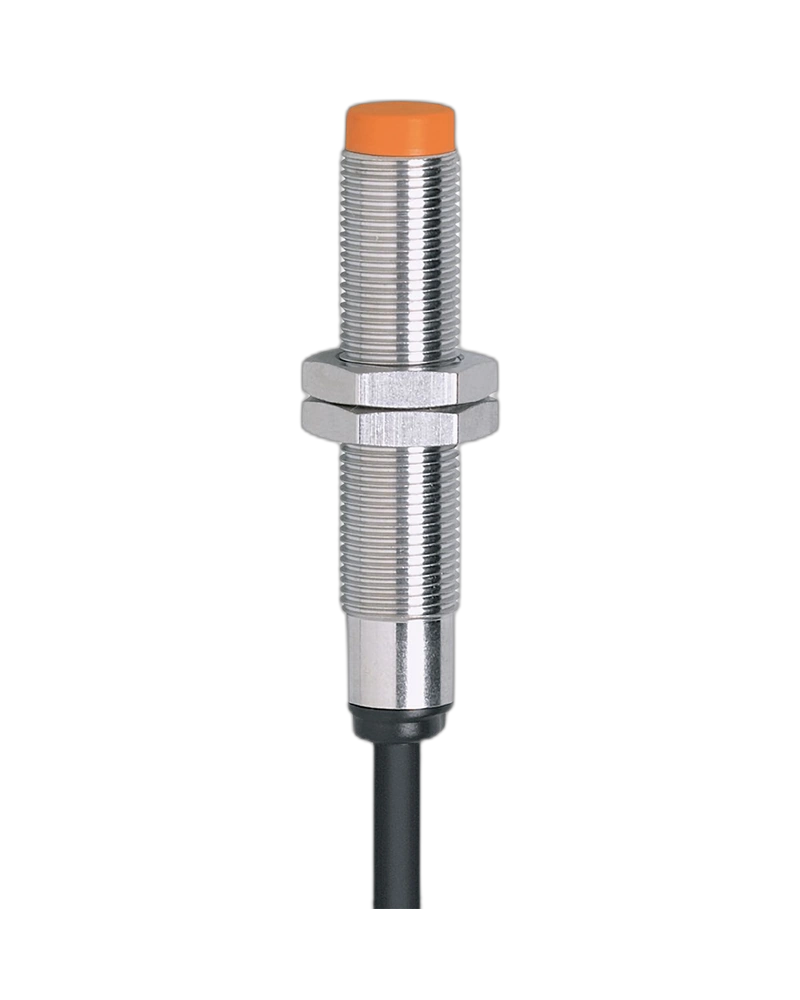

The IF5959 IFK3002-BPKG/IE-KAB inductive sensor by IFM is engineered for reliable and precise non-contact detection of metal objects in industrial automation and machine control applications. Designed for applications where accurate presence, position and movement detection are required, this compact inductive proximity sensor provides dependable switching performance without physical contact with the detected object.

Featuring a 2 mm sensing range and a flush-mountable design, the IF5959 is suitable for detecting metallic components, machine parts, workpieces and moving objects in automated production environments. Its inductive sensing principle allows metal objects to be detected reliably without mechanical wear, making it a practical choice for continuous industrial operations.

The sensor uses a DC PNP electrical design with a normally-open output, allowing straightforward integration with PLCs, industrial controllers and other automation equipment. With an operating voltage of 10–36 V DC and a switching frequency of up to 1200 Hz, the IF5959 is suitable for fast and repetitive detection tasks in production machinery and automated processes.

Its M12 × 1 metal-threaded housing provides a compact and practical installation solution. The flush-mountable construction allows the sensor to be integrated neatly into machine structures, fixtures and automated equipment. The housing is made from white-bronze-coated brass and polycarbonate, providing a robust construction for industrial applications.

The IF5959 is rated IP67, offering protection against dust and temporary water exposure. With an ambient operating temperature range of -25 °C to +80 °C, the sensor can be used across a broad range of industrial environments. These characteristics make it suitable for machinery, manufacturing lines, material handling systems, conveyors and general factory automation.

The sensor is supplied with a 2 m PVC cable with 3 × 0.14 mm² conductors, providing a convenient wired connection for industrial installations. A yellow LED output-status indicator allows operators and maintenance personnel to quickly identify the switching status during installation, commissioning and troubleshooting.

Key Features

• Reliable inductive non-contact metal detection
• 2 mm sensing range
• Flush-mountable construction
• M12 × 1 metal-threaded housing
• DC PNP electrical design
• Normally-open output function
• 10–36 V DC operating voltage
• Up to 1200 Hz switching frequency
• 250 mA switching current rating
• Short-circuit and overload protection
• IP67 protection rating
• -25 °C to +80 °C ambient operating temperature
• Yellow LED output-status indication
• 2 m PVC connection cable
• 3 × 0.14 mm² cable conductors
• Suitable for PLC and industrial control integration

Design & Functionality

The IF5959 uses inductive sensing technology to detect metallic objects without requiring physical contact. When a metal object enters the sensor's sensing field, the sensor responds by changing its output state. This makes it suitable for applications requiring repeated detection of machine components, workpieces or moving metallic objects.

The 2 mm sensing range provides precise detection for compact industrial applications. The sensor is designed for flush mounting, helping maintain a clean installation within machinery and automation equipment.

Its DC PNP normally-open output is suitable for integration with industrial control systems. The sensor can provide detection signals to PLCs, controllers and other compatible automation equipment, making it a useful component within larger Industrial Automation Systems in UAE.

Reliable Metal Detection

The IF5959 is designed specifically for detecting metal objects. Its correction factor varies according to the detected material, with mild steel having a correction factor of 1, stainless steel approximately 0.7, brass approximately 0.5, aluminium approximately 0.4 and copper approximately 0.3.

This makes the sensor useful for a range of industrial applications where different metal components need to be detected during manufacturing, assembly, handling or automated processing.

Industrial Automation Applications

The IF5959 can be incorporated into a wide range of Industrial Automation Solutions in UAE. Its compact design and reliable switching performance make it suitable for applications such as:

Machine Position Detection:
Detect the position of moving machine components, slides, fixtures and mechanical parts and provide feedback to an automation controller.

Metal Component Detection:
Detect metal workpieces and components as they move through automated manufacturing and assembly processes.

Conveyor Automation:
Monitor metallic products or components moving along conveyor systems and provide signals for counting, sorting, stopping or subsequent processing.

Assembly Machinery:
Confirm the presence or position of metallic components during automated assembly operations.

Material Handling:
Detect metal objects in automated material handling equipment and production lines.

Production Monitoring:
Provide repeatable sensing signals for automated production and machine monitoring systems.

Machine Safety and Control Feedback:
Support machine-control functions where reliable position or presence feedback from metal components is required.

Integration with Industrial Automation Equipment

The IF5959 can be used as part of a broader range of Industrial Automation Components UAE, working alongside PLCs, industrial controllers, control panels, actuators, switches and other sensors.

For automation engineers, system integrators and machine builders, inductive proximity sensors provide an effective method of detecting metal components without mechanical contact. This can help reduce mechanical wear associated with traditional contact-based switches and support reliable operation in automated production environments.

The sensor is particularly suitable for customers looking for Industrial Sensors, Proximity Sensors, and dependable automation sensing equipment for machinery and factory environments.

Protection & Industrial Reliability

The IF5959 has an IP67 protection rating, helping protect the sensor from dust and water ingress in suitable industrial installations. Its operating temperature range of -25 °C to +80 °C allows it to operate across a broad range of factory and machinery environments.

The sensor also incorporates short-circuit and overload protection, providing additional protection for the electrical output during operation. Its yellow LED output indication simplifies installation checks and maintenance procedures.

Suitable for Industrial Automation UAE

Businesses searching for Industrial Automation UAE products can use the IF5959 as a compact and dependable metal-detection solution for automated machinery and production systems.

For Industrial Automation Supplier in UAE requirements, this type of inductive proximity sensor can be used across manufacturing, engineering, machine-building, packaging, material handling and factory automation applications.

It is also suitable for customers looking for an Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE, Sensor Supplier UAE, or Automation Products Supplier UAE for industrial sensing requirements.

Why Choose the IF5959?

The IF5959 combines compact construction, reliable metal detection and practical electrical integration in a single industrial sensor. Its 2 mm sensing range, PNP normally-open output, fast switching frequency and IP67 protection make it suitable for demanding automation applications.

Whether used for machine position detection, component presence sensing, conveyor monitoring or automated production processes, the IF5959 provides a dependable sensing solution for industrial equipment and factory automation.

For companies purchasing Industrial Equipment & Supplies in UAE and Industrial Automation Equipment UAE, the IF5959 can be an effective sensing component for improving machine feedback, process monitoring and automated control.
