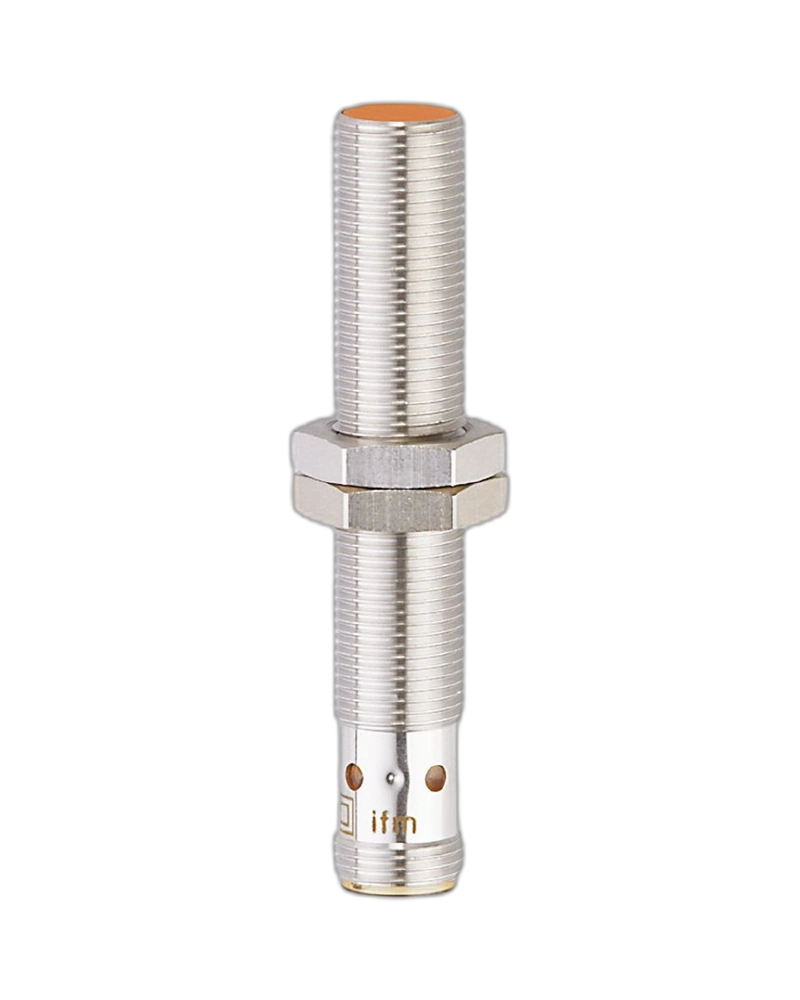

The IF5957 inductive sensor offers reliable non-contact metal detection for industrial automation, machine tools, and position sensing applications. Its 4 mm sensing range, PNP normally closed output, and IP68 protection make it suitable for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IF5957 Inductive Sensor provides dependable metal detection for Industrial Automation UAE and factory automation applications. It enables machines to detect metal objects accurately without physical contact.
The M12 threaded housing and robust construction make this sensor suitable for Industrial Automation Systems in UAE, machine tools, conveyors, assembly equipment, and production machinery. Its IP68 protection supports operation in harsh industrial conditions.
Ideal for machine tools, conveyors, factory automation, assembly machinery, packaging systems, material handling equipment, position detection, object counting, and automated production lines.
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IF5957 |
| Sensor Technology | Inductive Proximity Sensor |
| Manufacturer Part No. | IFK3004BAPKG/US-104 |
| Sensing Range | 4 mm |
| Mounting Type | Flush Mountable |
| Housing | Threaded |
| Thread Size | M12 x 1 |
| Length | 60 mm |
| Electrical Design | PNP |
| Output Function | Normally Closed |
| Operating Voltage | 10–30 V DC |
| Switching Frequency | 700 Hz |
| Switching Current | Up to 200 mA |
| Connection | M12 Connector |
| Protection Rating | IP68 |
| Number of Wires | 3-wire |
| Ambient Temperature | -25 to +70 °C |
| Application | Industrial Automation / Machine Tools |
