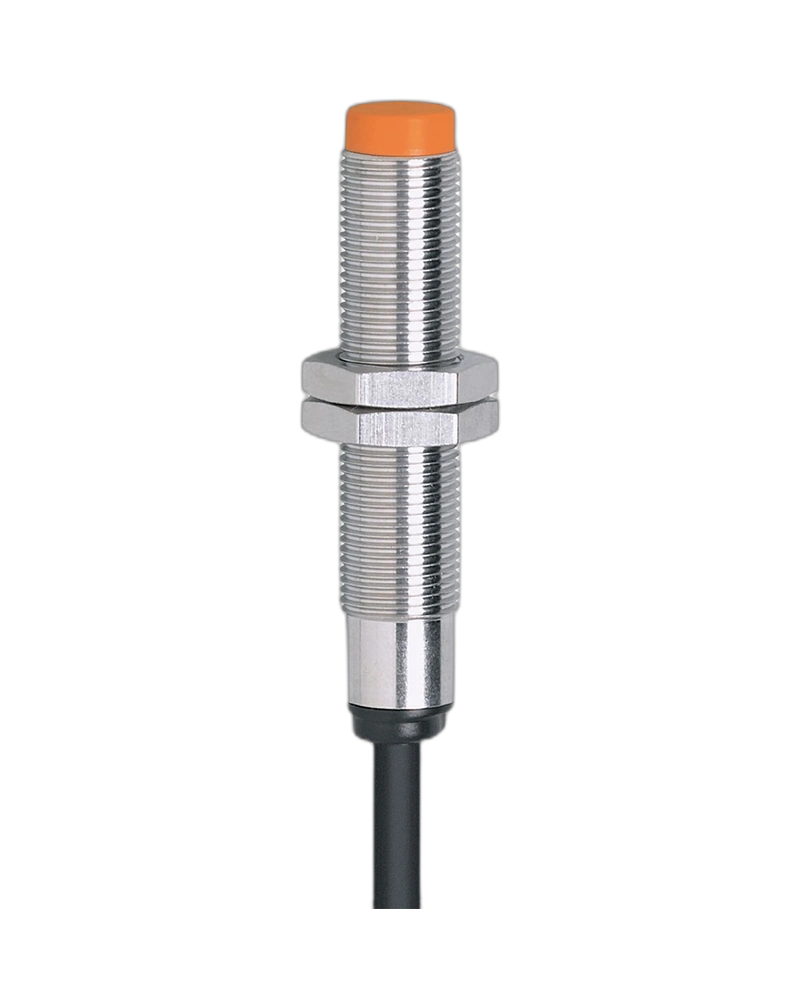

The IF5955 inductive sensor provides accurate non-contact metal detection for industrial automation, machine positioning, and production equipment. Its compact M12 housing, 2 mm sensing range, and high switching frequency support fast and reliable automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IF5955 Inductive Sensor is engineered for dependable object detection in Industrial Automation UAE applications. It detects metal targets without physical contact and supports accurate machine positioning, object sensing, and automated process control.
With a flush-mount M12 design, PNP normally open output, and 3-meter PUR cable, the sensor can be integrated into Industrial Automation Systems in UAE, machinery, conveyors, assembly equipment, and production lines. Its 1000 Hz switching frequency supports fast detection operations.
Suitable for factory automation, machine tools, conveyor systems, assembly lines, packaging machinery, material handling, position sensing, object counting, and industrial equipment monitoring.
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IF5955 |
| Sensor Technology | Inductive Proximity Sensor |
| Manufacturer Part No. | IFB3002-BPKG/V2A/10-55V/3M/BH |
| Sensing Range | 2 mm |
| Mounting Type | Flush Mountable |
| Housing | Threaded |
| Thread Size | M12 x 1 |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–55 V DC |
| Switching Frequency | 1000 Hz |
| Switching Current | Up to 125 mA continuous |
| Connection | 3 m PUR Cable |
| Protection Rating | IP67 |
| Number of Wires | 3-wire |
| Housing Material | V2A / Stainless Steel |
| Application | Industrial Automation / Factory Automation |
