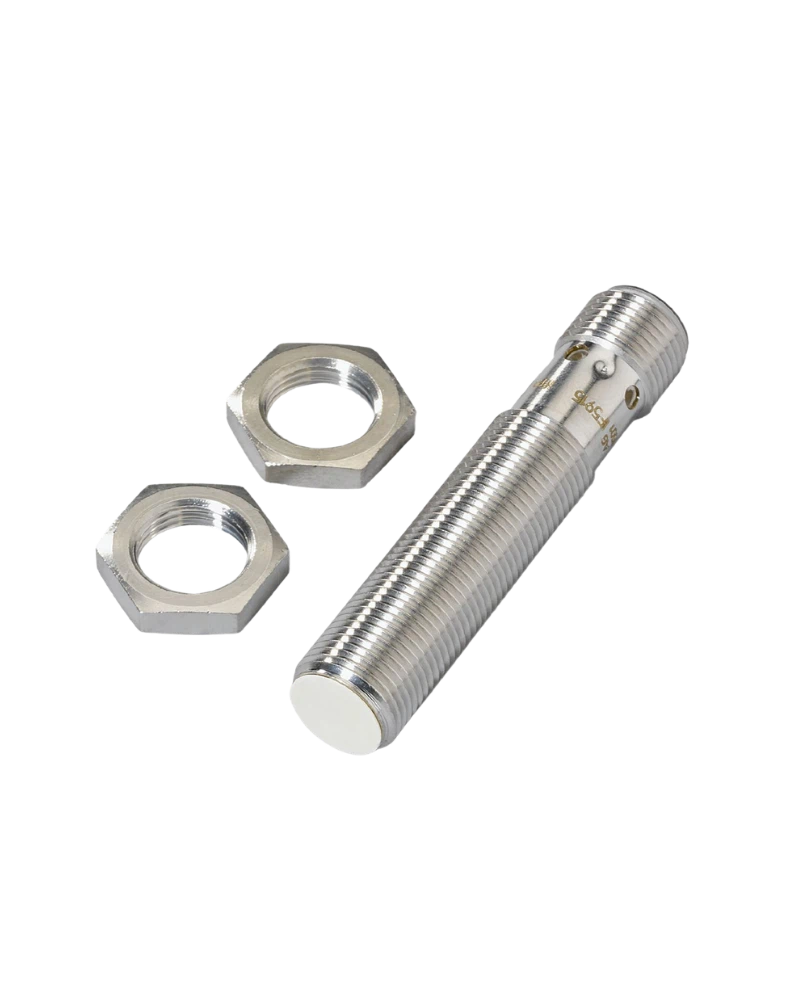

The IF5939 IFM inductive sensor, model IFK3007-ANKG/US-104-DNS, is designed for reliable non-contact detection of metal objects in industrial machinery and automated production systems. Its M12 x 1 threaded metal housing, increased sensing range, and non-flush mounting design provide dependable position detection where consistent machine operation is required.

With a 7 mm sensing range, 10–36 V DC operating voltage, NPN normally open output, and switching frequency of up to 800 Hz, the sensor supports fast and repeatable detection in industrial automation environments. Its IP67 protection, reverse-polarity protection, short-circuit protection, and overload protection make it suitable for demanding factory conditions.

Key Features

• 7 mm sensing range for reliable metal detection
• Increased sensing range for dependable position monitoring
• M12 x 1 threaded metal housing
• NPN normally open switching output
• 10–36 V DC operating voltage
• Switching frequency up to 800 Hz
• 250 mA switching output current
• IP67 protection for industrial environments
• M12 connector for convenient electrical connection
• Yellow LED for clear output-status indication
• Reverse-polarity, short-circuit, and overload protection
• Non-flush mounting configuration
• Operating temperature range of -25°C to +70°C
• Supplied with two mounting nuts

Design & Functionality

The IF5939 features a M12 x 1 threaded construction with a 60 mm overall length, making it suitable for compact machine installations where reliable proximity detection is required. The housing uses brass with a white-bronze coating and PES sensing material, providing a durable construction for industrial use.

Its increased sensing range allows the sensor to detect suitable metallic targets without physical contact, helping reduce mechanical wear and supporting reliable machine-position monitoring. The sensor provides a real sensing range of 7 mm ±10% and a guaranteed operating distance of 0–5.7 mm.

Application

The IF5939 is suitable for machine position detection, automated production equipment, material handling systems, conveyor equipment, assembly machinery, and factory automation applications where dependable metal-object detection is required.

Its fast 800 Hz switching frequency makes it suitable for applications involving repeated machine movements and high-speed detection cycles. The NPN normally open output enables integration with compatible PLCs and industrial control systems.

Performance & Reliability

Designed for continuous industrial operation, the IF5939 combines a long sensing range with robust electrical protection and IP67 environmental protection. The sensor operates from -25°C to +70°C and complies with relevant EMC requirements including EN 60947-5-2 and EN 55011 Class B.

The yellow LED output indication provides convenient visual confirmation of switching status, while the M12 connector simplifies installation and maintenance. These characteristics make the IF5939 a practical choice for businesses sourcing Industrial Sensors and Proximity Sensors Supplier UAE solutions for automated machinery.

Industrial Automation Applications

• Machine position and end-position detection
• Conveyor and material handling systems
• Automated assembly machines
• Factory automation equipment
• Packaging and production machinery
• Metal object detection
• Machine monitoring and control
• Industrial automation components
• PLC-based control systems

The IF5939 IFM inductive sensor provides reliable, non-contact metal detection with a 7 mm sensing range, rugged M12 construction, fast switching performance, and IP67 protection. It is a dependable choice for industrial automation systems requiring accurate and repeatable proximity sensing.
