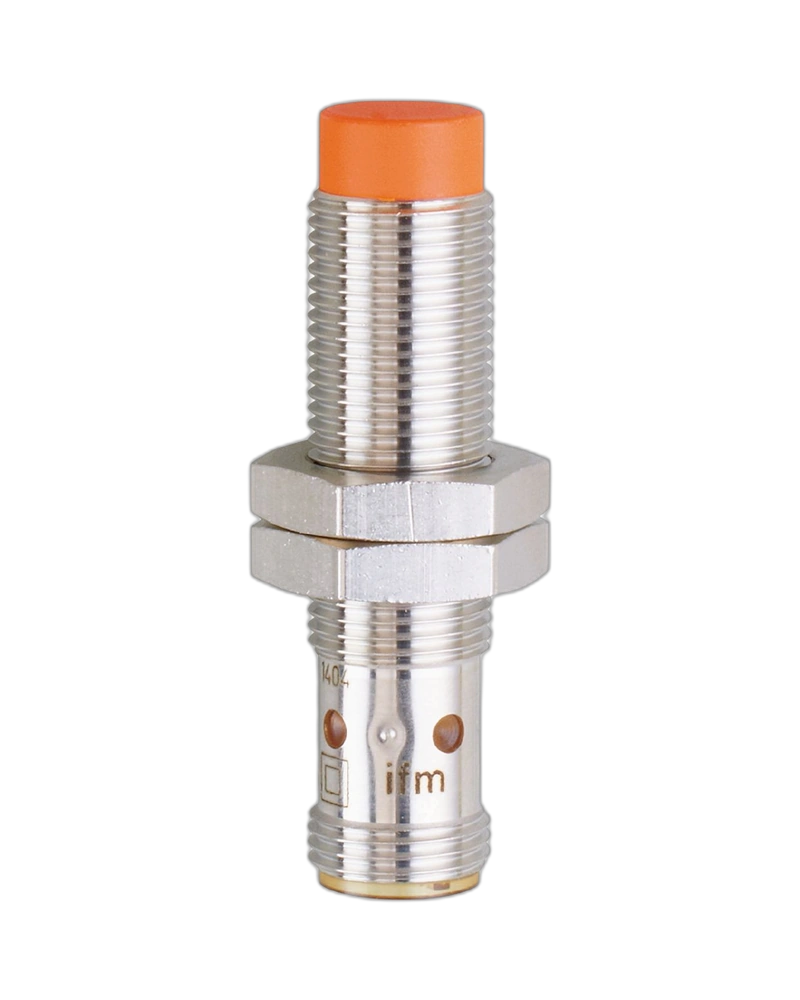

The IF5930 inductive sensor by ifm electronic is a reliable M12 proximity sensor designed for precise, non-contact detection of metallic objects in industrial automation and factory applications. With a 4 mm sensing range, PNP normally open output, M12 connector and IP67 protection, it provides dependable switching performance in demanding industrial environments. It is an ideal choice for businesses looking for an Industrial Sensors Supplier UAE for machine automation, positioning and object detection applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
4 mm sensing range
PNP normally open switching output
M12 x 1 threaded housing
Non-flush mounting design
10–30 V DC operating voltage
Up to 1,400 Hz switching frequency
IP67 protection rating
M12 connector with gold-plated contacts
Yellow LED switching-status indication
Reverse polarity, short-circuit and overload protection
Robust brass housing with white-bronze coating
Suitable for industrial applications and factory automation
The IFK3004-BPKG/US-104 is an M12 threaded inductive proximity sensor designed for reliable detection of metallic targets without physical contact. Its 4 mm sensing range and PNP normally open output enable consistent object detection and switching in automated machinery. The sensor uses a non-flush mounting arrangement and an M12 connector for practical installation and connection to industrial control systems.
The sensor operates on 10–30 V DC and supports a switching frequency of up to 1,400 Hz, making it suitable for fast-moving machine and production-line applications. Its IP67 protection helps protect the device against dust and temporary water exposure, while the robust metal construction supports reliable operation in industrial environments.
The IF5930 is suitable for machine tools, conveyor systems, assembly equipment, production lines and automated material-handling systems where reliable metal-object detection is required. Its compact M12 form factor makes it suitable for position sensing, end-position detection and object presence monitoring.
As part of Industrial Automation Components UAE, this inductive sensor can be integrated with PLCs, control systems and other automation equipment to support accurate and repeatable machine operation.
The 4 mm sensing range provides dependable detection of metallic targets, while the PNP normally open output delivers a straightforward switching signal to compatible control equipment. With switching frequencies of up to 1,400 Hz, the sensor is suitable for applications requiring frequent and repeatable target detection.
The IP67-rated construction provides protection for industrial installations where dust and moisture may be present. The sensor also incorporates short-circuit and overload protection, while the M12 connector provides a secure electrical connection for automation installations.
Reliable non-contact metal detection
Fast and repeatable switching
Compact M12 threaded construction
Easy integration with PLC-based automation systems
Suitable for machine and factory automation
IP67 protection for demanding industrial environments
Clear LED indication of switching status
The IF5930 IFK3004-BPKG/US-104 is a dependable inductive proximity sensor for industrial detection and automation applications. Its 4 mm sensing range, PNP normally open output, M12 connection and rugged IP67 construction make it a practical solution for machine builders and companies seeking reliable Proximity Sensors Supplier UAE solutions
| Specification | Details |
|---|---|
| Product Code | IF5930 |
| Product Type | Inductive sensor |
| Model | IFK3004-BPKG/US-104 |
| Sensor Type | Inductive proximity sensor |
| Electrical Design | PNP |
| Output Function | Normally open |
| Sensing Range | 4 mm |
| Mounting | Non-flush |
| Housing Type | Cylindrical, threaded |
| Thread | M12 x 1 |
| Length | 70 mm |
| Operating Voltage | 10–30 V DC |
| Current Consumption | <10 mA |
| Switching Frequency | Up to 1,400 Hz |
| Output Current | Up to 200 mA |
| Protection Rating | IP67 |
| Connector | M12, A-coded |
| Contacts | Gold-plated |
| Switching Status | 4 × yellow LED |
| Housing Material | Brass, white-bronze coated |
| Sensing Face Material | PBT |
| Ambient Temperature | -25°C to +80°C |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
| Application | Industrial applications / factory automation |
| Mounting Nuts Supplied | 2 |
| Weight | Approx. 29.6 g |
