The IF5929 IFK3002-BPKG/US-104 is a compact M12 x 1 inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation applications. It features a 2 mm sensing range, PNP normally open output, 10–30 V DC operating voltage, 1200 Hz switching frequency, and IP67 protection for dependable performance in industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IF5929 inductive sensor is engineered for accurate and repeatable detection of metal objects without physical contact. Its threaded M12 x 1 housing and compact 70 mm design make it suitable for machinery, production equipment, conveyor systems, assembly lines, and factory automation applications.
With a 2 mm sensing range and PNP normally open switching output, the sensor can be integrated into common industrial control systems. Its 10–30 V DC supply range, 1200 Hz switching frequency, short-circuit protection, overload protection, and IP67 enclosure provide reliable operation in demanding industrial environments.
2 mm sensing range
M12 x 1 threaded housing
70 mm overall length
Flush-mountable design
PNP electrical design
Normally open output function
10–30 V DC operating voltage
1200 Hz switching frequency
M12 connector with gold-plated contacts
IP67 protection rating
Short-circuit protection
Overload protection
Reverse polarity protection
4 yellow LED switching-status indicators
-25°C to +80°C ambient operating temperature

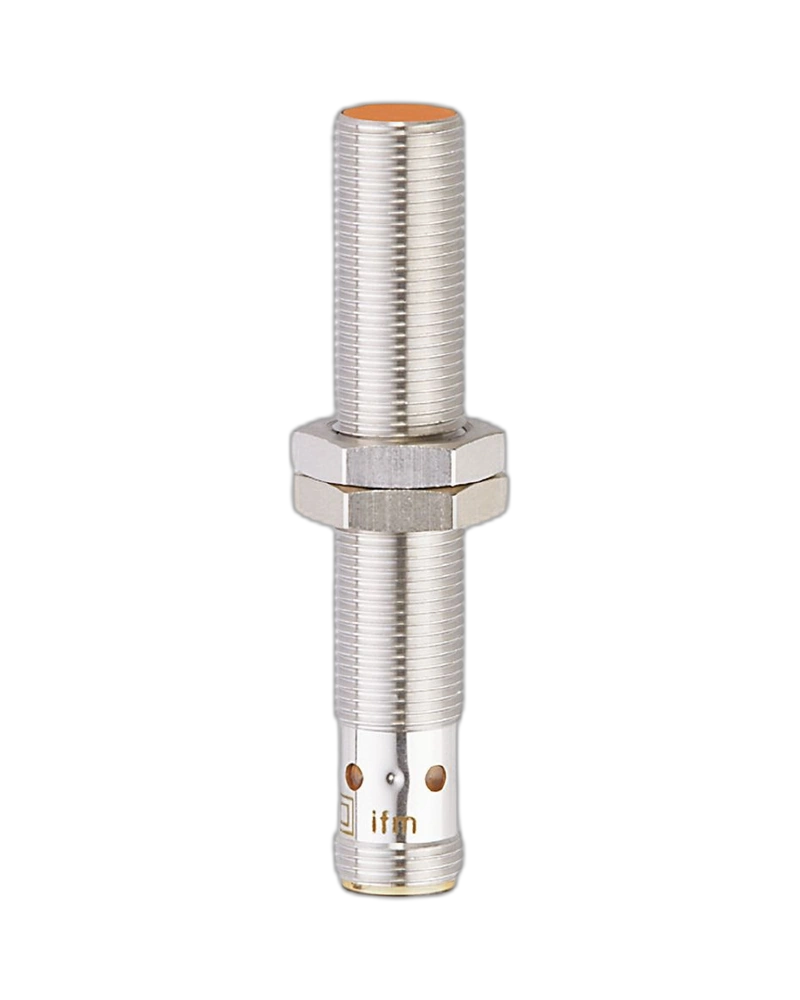

The IF5929 features a robust threaded M12 x 1 housing with a 70 mm overall length. Its flush-mountable construction allows the sensor to be installed neatly into industrial machinery while maintaining consistent metal detection. The inductive sensing principle enables non-contact detection, helping reduce mechanical wear and supporting dependable machine monitoring.
The sensor provides a nominal sensing range of 2 mm and a real sensing range of 2 mm ±10%. Its operating distance is 0–1.62 mm. The correction factor depends on the target material, with mild steel used as the reference material.
The IF5929 operates on 10–30 V DC and has a current consumption of less than 10 mA. Its PNP normally open output supports a continuous switching current of up to 200 mA. With a switching frequency of up to 1200 Hz, it is suitable for fast industrial detection and automation processes.
Built-in reverse polarity, short-circuit, and overload protection help protect the sensor during operation. The IP67 protection rating provides resistance against dust and water exposure, while the -25°C to +80°C ambient temperature range allows use across a wide variety of industrial environments.
The IF5929 uses an M12 connector with gold-plated contacts for a secure and durable electrical connection. Its threaded M12 x 1 construction and supplied lock nuts make installation practical on industrial machinery, automation equipment, and production systems.
The IF5929 is suitable for:
Factory automation systems
Production and assembly machinery
Conveyor systems
Material handling equipment
Packaging machinery
Machine tools
Automated production lines
Metal object detection
Machine position monitoring
Industrial equipment
Reliable non-contact metal detection
Compact M12 x 1 threaded construction
2 mm sensing range for precise proximity detection
Fast 1200 Hz switching frequency
PNP normally open output
Flush-mountable installation
IP67 protection for industrial environments
Gold-plated connector contacts
Built-in electrical protection
The IF5929 is a reliable choice for businesses seeking Industrial Sensors, Proximity Sensors, and Industrial Automation Components UAE. Its compact construction, precise 2 mm sensing range, fast switching response, and IP67 protection make it suitable for factory automation and industrial equipment applications.
| Specification | Details |
|---|---|
| Product Code | IF5929 |
| Model | IFK3002-BPKG/US-104 |
| Sensor Type | Inductive sensor |
| Application | Industrial applications / factory automation |
| Sensing Range | 2 mm |
| Real Sensing Range | 2 mm ±10% |
| Operating Distance | 0–1.62 mm |
| Installation | Flush-mountable |
| Thread | M12 x 1 |
| Housing Length | 70 mm |
| Electrical Design | DC PNP |
| Output Function | Normally open |
| Operating Voltage | 10–30 V DC |
| Current Consumption | <10 mA |
| Maximum Voltage Drop | <2.5 V |
| Continuous Current Rating | 200 mA |
| Switching Frequency | 1200 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
| Protection Rating | IP67 |
| Ambient Temperature | -25°C to +80°C |
| Connection | M12 connector |
| Contact Type | Gold-plated contacts |
| Output Status Indication | 4 x yellow LED |
| Housing Material | Brass, white bronze coated |
| Sensing Face | PBT, orange |
| LED Window | PEI |
| Lock Nuts | Brass, white bronze coated |
| Weight | Approx. 30.6 g |
| Standard | EN 60947-5-2 |
| Correction Factor – Mild Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.5 |
| Correction Factor – Aluminium | 0.4 |
| Correction Factor – Copper | 0.3 |
| Hysteresis | 3–15% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
