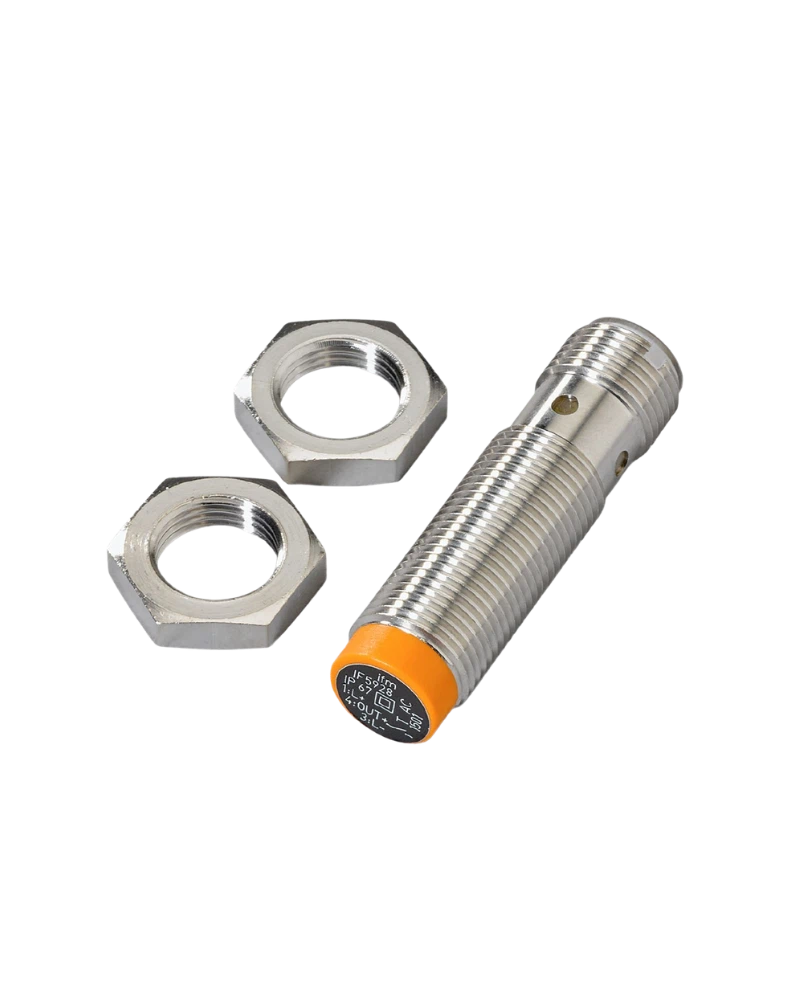

The IF5928 IFB3004-BPKG/US-104 is a compact M12 x 1 inductive proximity sensor designed for reliable non-contact detection of metal objects in industrial automation and factory applications. With a 4 mm sensing range, PNP normally-open output, 10–30 V DC operating voltage, 1400 Hz switching frequency, IP67 protection, and gold-plated M12 connector contacts, it provides dependable performance in demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IF5928 inductive sensor is designed for accurate and repeatable detection of metallic objects without physical contact. Its M12 x 1 threaded metal housing and non-flush mounting design make it suitable for machinery, production equipment, conveyor systems, assembly lines, and other factory automation applications.
The sensor provides a 4 mm sensing range and uses a PNP normally-open switching output. Its 10–30 V DC supply range supports common industrial control systems, while short-circuit and overload protection help improve operational reliability.
4 mm sensing range
M12 x 1 threaded housing
Non-flush mounting
PNP electrical design
Normally-open switching output
10–30 V DC operating voltage
1400 Hz switching frequency
M12 quick-disconnect connector
Gold-plated contacts
IP67 protection rating
Short-circuit protection
Overload protection
Reverse polarity protection
Four yellow LED output status indicators
Operating temperature from -25°C to +80°C
The IF5928 features a cylindrical M12 x 1 threaded housing with a compact 45 mm length. Its non-flush installation allows reliable detection of metallic targets within a 4 mm sensing range. The sensor is designed for industrial applications and factory automation, providing stable switching performance for machine and process monitoring.
The sensor has a nominal sensing range of 4 mm, with a real sensing range of 4 mm ±10%. Its operating distance is specified from 0 to 3.24 mm. Correction factors vary according to the target material, with mild steel serving as the reference material.
The IF5928 operates from 10–30 V DC and has a current consumption of less than 10 mA. Its PNP normally-open output supports a continuous switching current of up to 200 mA, with a maximum voltage drop of less than 2.5 V. The 1400 Hz switching frequency makes the sensor suitable for fast-moving automation processes.
The sensor includes reverse polarity, short-circuit, and overload protection for dependable operation in industrial control applications. Its IP67 protection rating helps protect the device against dust and temporary water immersion. The operating temperature range of -25°C to +80°C provides flexibility across a broad range of industrial environments.
The IF5928 uses an M12 connector with gold-plated contacts for a secure and durable electrical connection. The compact threaded construction and supplied lock nuts allow straightforward mounting on industrial machinery and automation equipment.
The IF5928 is suitable for metal detection and position monitoring in:
Factory automation systems
Production and assembly machinery
Conveyor systems
Material handling equipment
Packaging machinery
Machine tools
Industrial equipment
Automated production lines
Metal object detection applications
Reliable non-contact metal detection
Compact M12 x 1 threaded construction
4 mm sensing range for precise detection
Fast 1400 Hz switching frequency
PNP normally-open output for industrial control systems
IP67 protection for demanding environments
Gold-plated contacts for reliable connection
Built-in electrical protection
The IF5928 is a dependable choice for businesses looking for Industrial Sensors, Proximity Sensors, and Industrial Automation Components UAE. Its compact M12 construction, 4 mm sensing range, fast switching performance, and robust IP67 protection make it well suited for factory automation and industrial equipment applications.
| Specification | Details |
|---|---|
| Product Code | IF5928 |
| Model | IFB3004-BPKG/US-104 |
| Sensor Type | Inductive sensor |
| Application | Industrial applications / factory automation |
| Sensing Range | 4 mm |
| Real Sensing Range | 4 mm ±10% |
| Operating Distance | 0–3.24 mm |
| Installation | Non-flush |
| Thread | M12 x 1 |
| Housing Length | 45 mm |
| Electrical Design | DC PNP |
| Output Function | Normally open |
| Operating Voltage | 10–30 V DC |
| Current Consumption | <10 mA |
| Maximum Voltage Drop | <2.5 V |
| Continuous Current Rating | 200 mA |
| Switching Frequency | 1400 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
| Protection Rating | IP67 |
| Ambient Temperature | -25°C to +80°C |
| Connection | M12 connector |
| Contact Type | Gold-plated contacts |
| Output Status Indication | 4 x yellow LED |
| Housing Material | Brass, white bronze coated |
| Active Face | PBT, orange |
| LED Window | PEI |
| Lock Nuts | Brass, white bronze coated |
| Weight | 0.025 kg |
| Standard | EN 60947-5-2 |
| Included Accessories | 2 lock nuts |
| Correction Factor – Mild Steel | 1 |
| Correction Factor – Stainless Steel | Approx. 0.7 |
| Correction Factor – Brass | Approx. 0.5 |
| Correction Factor – Aluminium | Approx. 0.4 |
| Correction Factor – Copper | Approx. 0.3 |
| Hysteresis | 3–15% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
