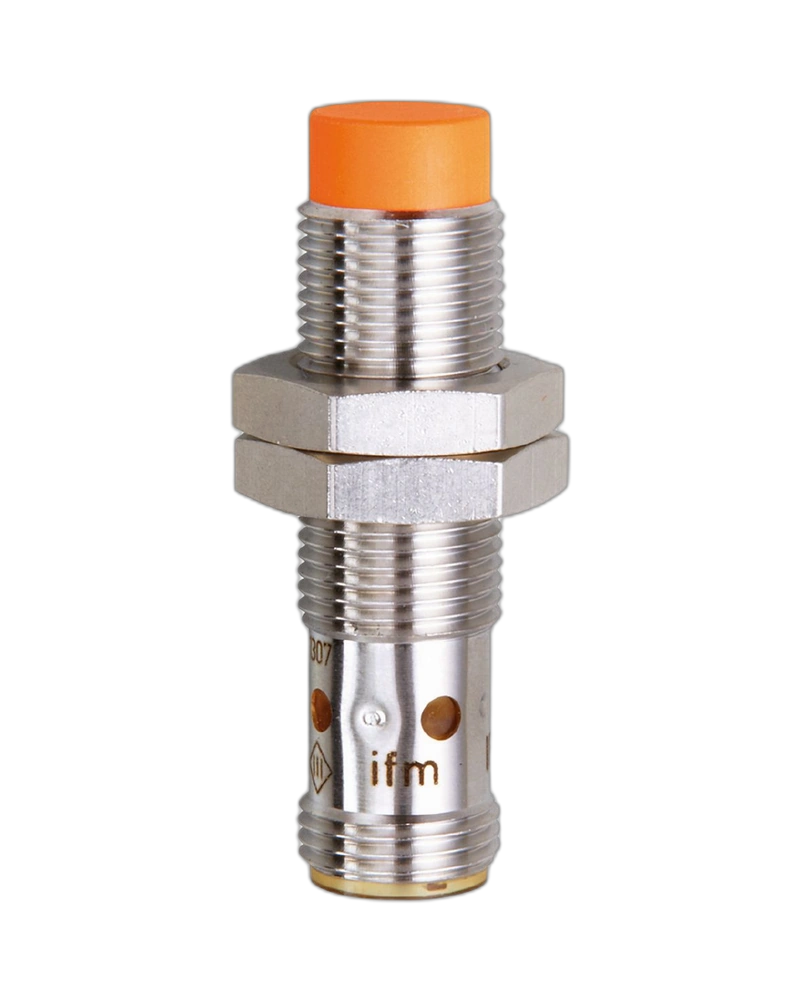

The IFM IFB3002-BPKG/US-104 Inductive Sensor provides fast and reliable metal detection with a 2 mm sensing range and PNP normally open output. Its 1200 Hz switching frequency, IP67 protection, and robust metal housing make it suitable for demanding automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IFB3002-BPKG/US-104 Inductive Sensor is designed for reliable metal object detection in Industrial Automation UAE applications.
Its 2 mm sensing range and flush-mountable M12 housing provide accurate detection for automated machinery, conveyors, and production systems. The PNP normally open output allows easy integration with PLCs and industrial control equipment.
With a high 1200 Hz switching frequency, IP67 protection, and robust metal construction, the sensor provides dependable performance for high-speed industrial automation processes.
• 2 mm sensing range
• PNP normally open output
• 10–36 V DC operation
• Switching frequency up to 1200 Hz
• M12 x 1 threaded housing
• Flush mountable
• IP67 protection
• Robust metal housing
• Short-circuit and overload protection
• Yellow LED switching indication
• Gold-plated contacts
Ideal for factory automation, conveyor systems, assembly machines, packaging equipment, position detection, high-speed counting, material handling, and industrial production lines.
| Specification | Details |
|---|---|
| Product Model | IFB3002-BPKG/US-104 |
| Part Number | IF5927 |
| Product Type | Inductive Proximity Sensor |
| Sensing Range | 2 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Current Consumption | 15 mA at 24 V |
| Switching Frequency | 1200 Hz |
| Permanent Current Rating | 250 mA |
| Operating Distance | 0–1.6 mm |
| Mounting | Flush mountable |
| Thread | M12 x 1 |
| Dimensions | M12 x 1 / L = 45 mm |
| Protection Rating | IP67 |
| Ambient Temperature | -25°C to +80°C |
| Connection | M12 connector |
| Contacts | Gold-plated |
| Housing Material | Brass, white-bronze coated |
| Status Indicator | 4 × Yellow LED |
| Weight | 24.8 g |
