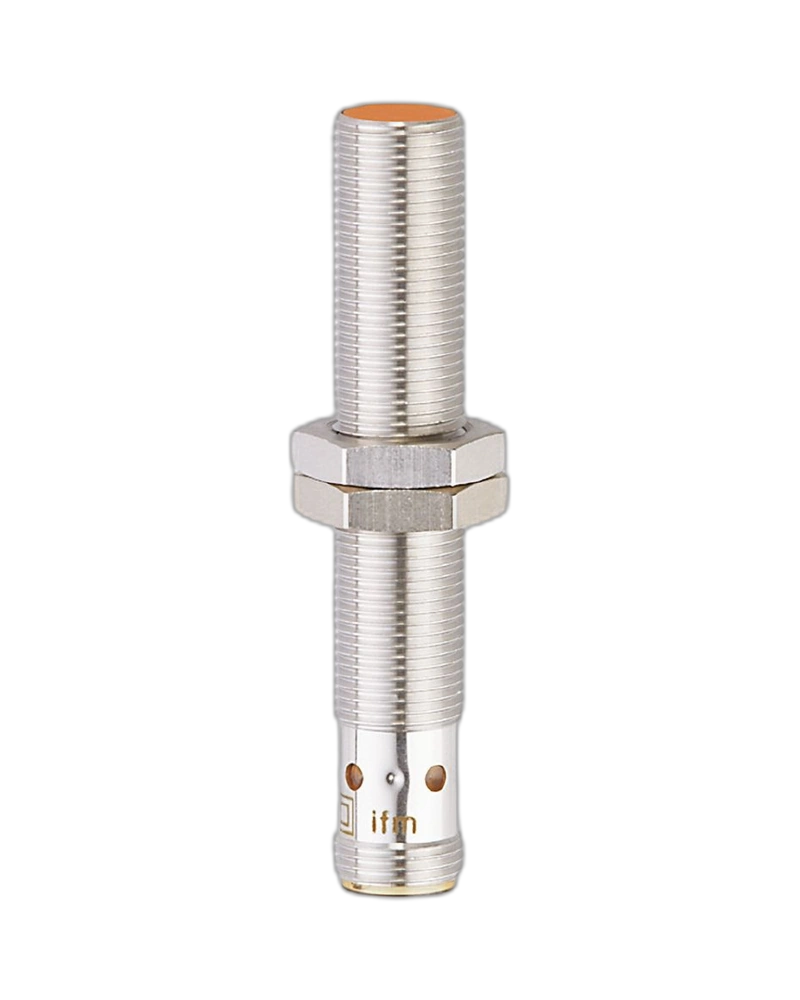

The IFM IFK3002-BPKG/US-104 Inductive Sensor provides precise non-contact metal detection with a 2 mm sensing range and PNP normally open output. Its compact M12 design, gold-plated contacts, and IP67 protection make it suitable for industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IFK3002-BPKG/US-104 Inductive Sensor is designed for reliable metal detection in Industrial Automation UAE and factory automation applications.
With a compact M12 x 1 threaded housing and 2 mm sensing range, it provides accurate detection for machinery, conveyors, and automated production systems.
The sensor operates from 10–30 V DC and supports a switching frequency of up to 1000 Hz. Its flush-mountable design, gold-plated contacts, and IP67 protection provide dependable industrial performance.
• 2 mm sensing range
• PNP normally open output
• 10–30 V DC operation
• Switching frequency up to 1000 Hz
• M12 x 1 threaded housing
• Flush mountable
• Gold-plated contacts
• IP67 protection
• Short-circuit protection
• Overload protection
• Yellow LED switching indication
Ideal for factory automation, conveyor systems, assembly machinery, packaging equipment, position detection, object counting, and industrial control systems.
| Specification | Details |
|---|---|
| Product Model | IFK3002-BPKG/US-104 |
| Part Number | IF5925 |
| Product Type | Inductive Proximity Sensor |
| Sensing Range | 2 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–30 V DC |
| Current Consumption | < 10 mA |
| Switching Frequency | 1000 Hz |
| Permanent Current Rating | 200 mA |
| Operating Distance | 0–1.62 mm |
| Mounting | Flush mountable |
| Thread | M12 x 1 |
| Dimensions | M12 x 1 / L = 60 mm |
| Protection Rating | IP67 |
| Ambient Temperature | -25°C to +80°C |
| Connection | M12 connector |
| Contacts | Gold-plated |
| Status Indicator | 4 × Yellow LED |
| Weight | 29 g |
