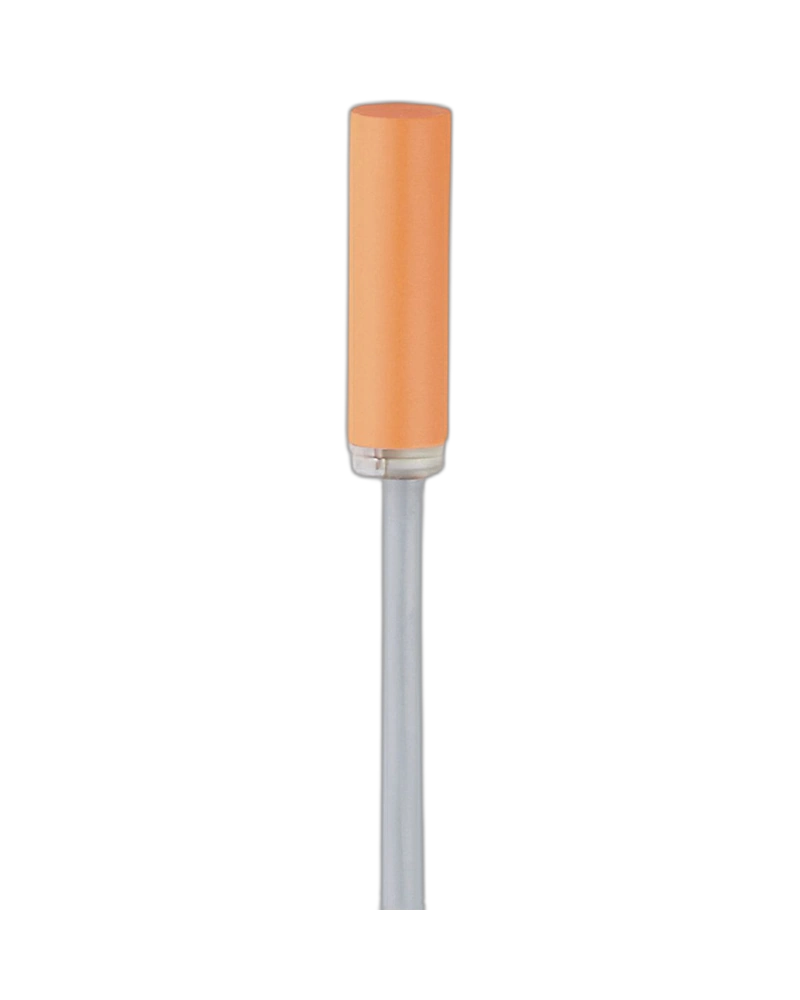

The IFM IFG2005-ARKG/5M/UP RT Inductive Sensor is a compact sensor with a 5 mm sensing range for reliable metal detection in industrial automation. Its PNP/NPN design, 5 m cable, and IP67 protection provide flexible installation and dependable operation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IFG2005-ARKG/5M/UP RT Inductive Sensor is designed for reliable object detection in Industrial Automation UAE and factory automation applications.
Its 5 mm sensing range and non-flush mounting design provide dependable detection of metallic objects in conveyors, machines, and production systems. The PNP/NPN electrical design allows flexible connection to automation controllers.
The sensor operates from 10–36 V DC and supports a switching frequency of up to 1000 Hz, making it suitable for fast industrial processes.
• 5 mm sensing range
• PNP/NPN electrical design
• Normally open output
• 10–36 V DC operation
• Switching frequency up to 1000 Hz
• Compact Ø11 mm plastic housing
• Non-flush mountable
• 5 m cable
• IP67 protection
• Yellow LED status indication
Ideal for factory automation, conveyor systems, packaging machinery, assembly lines, machine monitoring, position detection, and industrial automation equipment.
| Specification | Details |
|---|---|
| Product Model | IFG2005-ARKG/5M/UP RT |
| Part Number | IF5923 |
| Product Type | Inductive Proximity Sensor |
| Sensing Range | 5 mm |
| Electrical Design | PNP/NPN |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Minimum Load Current | 4 mA |
| Permanent Current Rating | 150 mA |
| Switching Frequency | 1000 Hz |
| Operating Distance | 0–4.05 mm |
| Mounting | Non-flush mountable |
| Housing | Ø11 mm plastic |
| Material | PBT |
| Cable Length | 5 m |
| Protection Rating | IP67 |
| Ambient Temperature | -25°C to +80°C |
| Status Indicator | Yellow LED |
