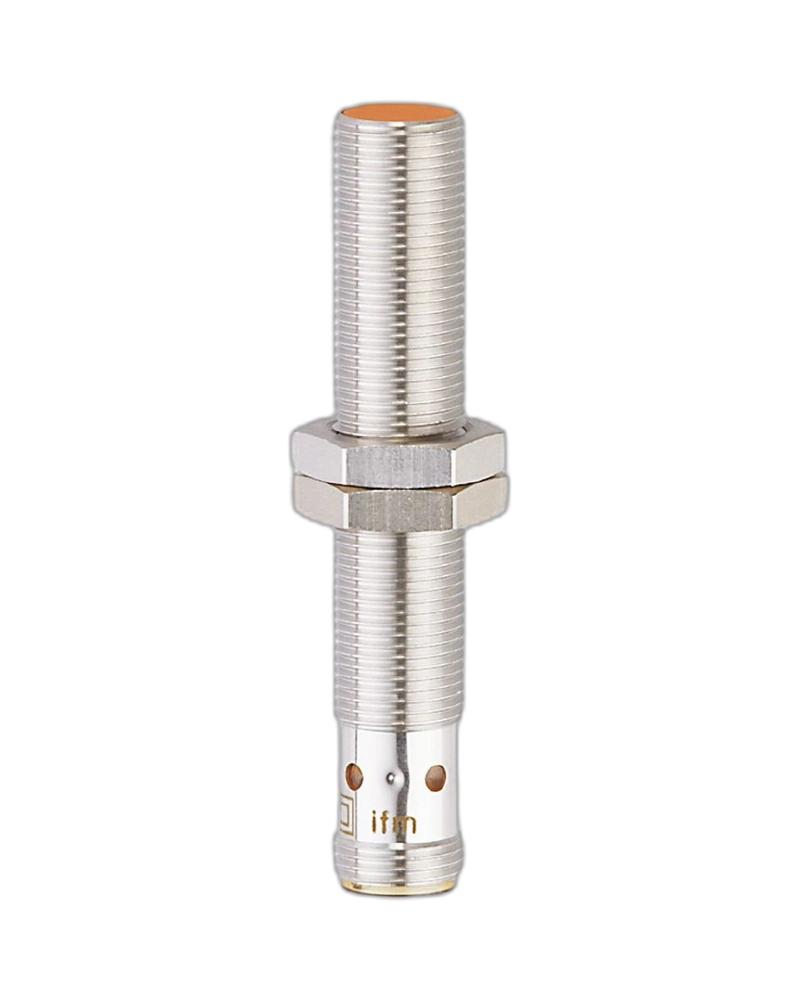

The IFM IFK3004BBPKG/US-104 Inductive Sensor is a robust proximity sensor designed for reliable metal detection with a 4 mm sensing range. Its PNP output, extended sensing range, and IP67 protection make it suitable for demanding industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IFK3004BBPKG/US-104 Inductive Sensor provides dependable metal detection for Industrial Automation UAE applications, particularly in machine tools and metalworking systems.
With a 4 mm sensing range, flush-mountable construction, and PNP normally open output, it supports accurate position and object detection.
The sensor features a 70 mm M12 housing, gold-plated contacts, and IP67 protection. Its robust construction makes it suitable for industrial equipment operating in demanding environments.
• 4 mm sensing range
• PNP normally open output
• 10–30 V DC operation
• 250 Hz switching frequency
• M12 x 1 threaded housing
• 70 mm housing length
• Flush mountable
• Gold-plated contacts
• IP67 protection
• Shock and vibration resistant design
Ideal for machine tools, metalworking, factory automation, conveyor systems, assembly machinery, position monitoring, and industrial production equipment.
| Specification | Details |
|---|---|
| Product Model | IFK3004BBPKG/US-104 |
| Part Number | IF5917 |
| Product Type | Inductive Proximity Sensor |
| Sensing Range | 4 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–30 V DC |
| Current Consumption | < 10 mA |
| Switching Frequency | 250 Hz |
| Permanent Current Rating | 200 mA |
| Operating Distance | 0–3.24 mm |
| Mounting | Flush mountable |
| Thread | M12 x 1 |
| Dimensions | M12 x 1 / L = 70 mm |
| Protection Rating | IP67 |
| Ambient Temperature | -25°C to +70°C |
| Connection | M12 connector |
| Contacts | Gold-plated |
| Status Indicator | 4 × Yellow LED |
| Weight | Approx. 30 g |
