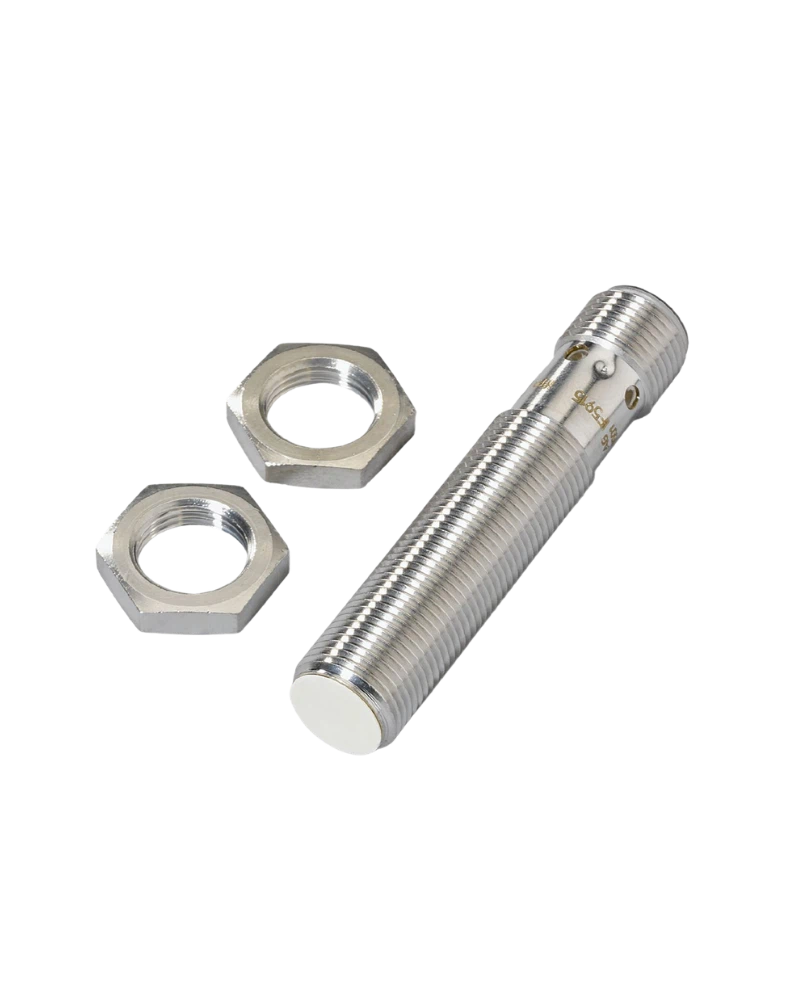

The IFM IFK3004BBPKG/US-104 Inductive Sensor provides reliable non-contact metal detection with a 4 mm sensing range and PNP normally open output. Its extended sensing range, gold-plated contacts, and M12 design support dependable industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IFK3004BBPKG/US-104 Inductive Sensor is designed for reliable metal detection in Industrial Automation UAE and factory automation systems.
Its 4 mm sensing range provides increased detection distance, while the PNP normally open output enables easy integration with PLCs and industrial control equipment.
The sensor operates at 10–30 V DC and supports a switching frequency of up to 700 Hz. Its robust threaded housing and gold-plated contacts provide reliable performance in industrial environments.
• 4 mm sensing range
• Increased sensing range
• PNP normally open output
• 10–30 V DC operation
• 700 Hz switching frequency
• M12 x 1 threaded housing
• Flush mountable
• Gold-plated contacts
• IP67 protection
• Short-circuit and overload protection
Ideal for machine tools, metalworking, factory automation, conveyor systems, position detection, assembly machinery, and industrial equipment.
| Specification | Details |
|---|---|
| Product Model | IFK3004BBPKG/US-104 |
| Part Number | IF5915 |
| Product Type | Inductive Proximity Sensor |
| Sensing Range | 4 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–30 V DC |
| Current Consumption | < 10 mA |
| Switching Frequency | 700 Hz |
| Permanent Current Rating | 200 mA |
| Operating Distance | 0–3.24 mm |
| Mounting | Flush mountable |
| Thread | M12 x 1 |
| Dimensions | M12 x 1 / L = 60 mm |
| Protection Rating | IP67 |
| Ambient Temperature | -25°C to +80°C |
| Housing Material | Brass, white-bronze coated |
| Contacts | Gold-plated |
| Status Indicator | Yellow LED |
| Weight | Approx. 27–28 g |
