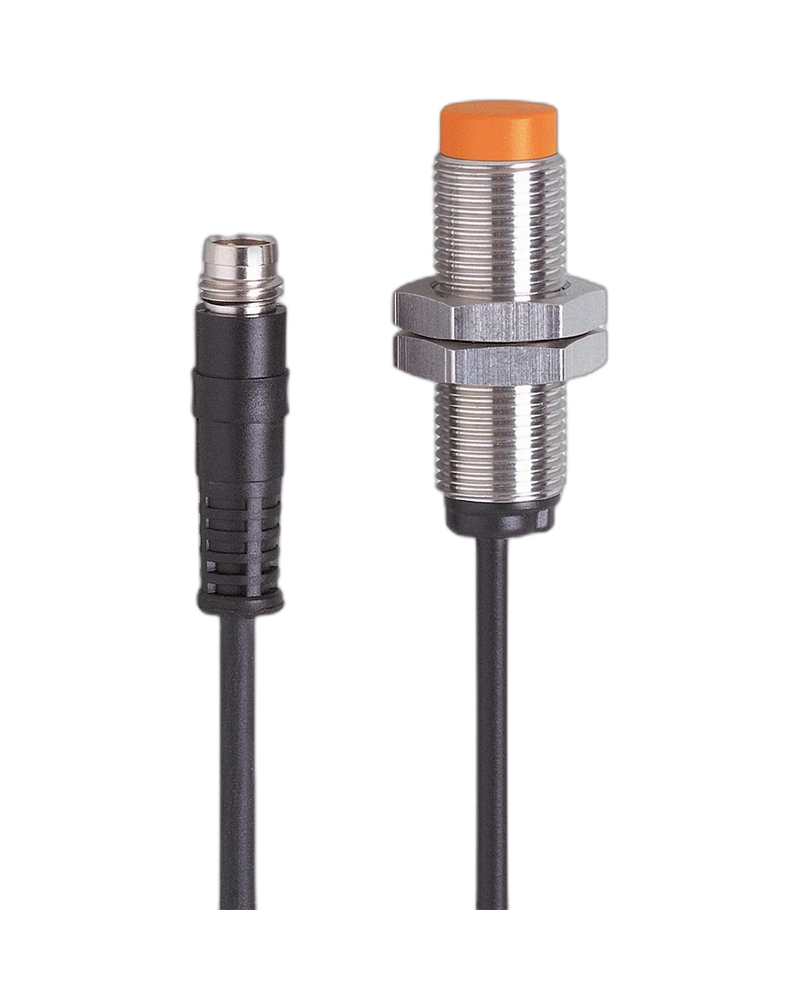

The IFM IFB35,5-BPKG/0,185M/AS-610-TPS Inductive Sensor offers reliable metal detection with a 5.5 mm sensing range in a particularly short M12 housing. Its PNP output, flexible PUR cable, and IP67 protection make it suitable for compact automation installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFB35,5-BPKG/0,185M/AS-610-TPS Inductive Sensor is designed for reliable detection where installation space is restricted. It is suitable for Industrial Automation UAE applications requiring a compact and robust sensing solution.
With a 5.5 mm sensing range, PNP normally open output, and short M12 x 1 housing, it provides dependable metal detection in automated machinery.
The sensor includes a 0.185 m flexible PUR cable and M8 connector, making it suitable for compact machine installations and industrial control applications.
• 5.5 mm sensing range
• PNP normally open output
• 10–36 V DC operation
• Switching frequency up to 800 Hz
• M12 x 1 threaded housing
• Non-flush mountable
• 0.185 m flexible PUR cable
• M8 connector
• IP67 protection
• Compact housing for restricted spaces
Ideal for factory automation, compact machinery, conveyors, assembly systems, machine monitoring, position detection, and industrial automation equipment.
| Specification | Details |
|---|---|
| Product Model | IFB35,5-BPKG/0,185M/AS-610-TPS |
| Part Number | IF5913 |
| Product Type | Inductive Proximity Sensor |
| Sensing Range | 5.5 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Current Consumption | 15 mA at 24 V |
| Switching Frequency | 800 Hz |
| Permanent Current Rating | 150 mA |
| Mounting | Non-flush mountable |
| Thread | M12 x 1 |
| Housing Length | 38 mm |
| Cable Length | 0.185 m |
| Cable Material | PUR |
| Connector | M8 |
| Protection Rating | IP67 |
| Ambient Temperature | 10°C to +50°C |
| Status Indicator | Yellow LED |
| Housing Material | Metal |
