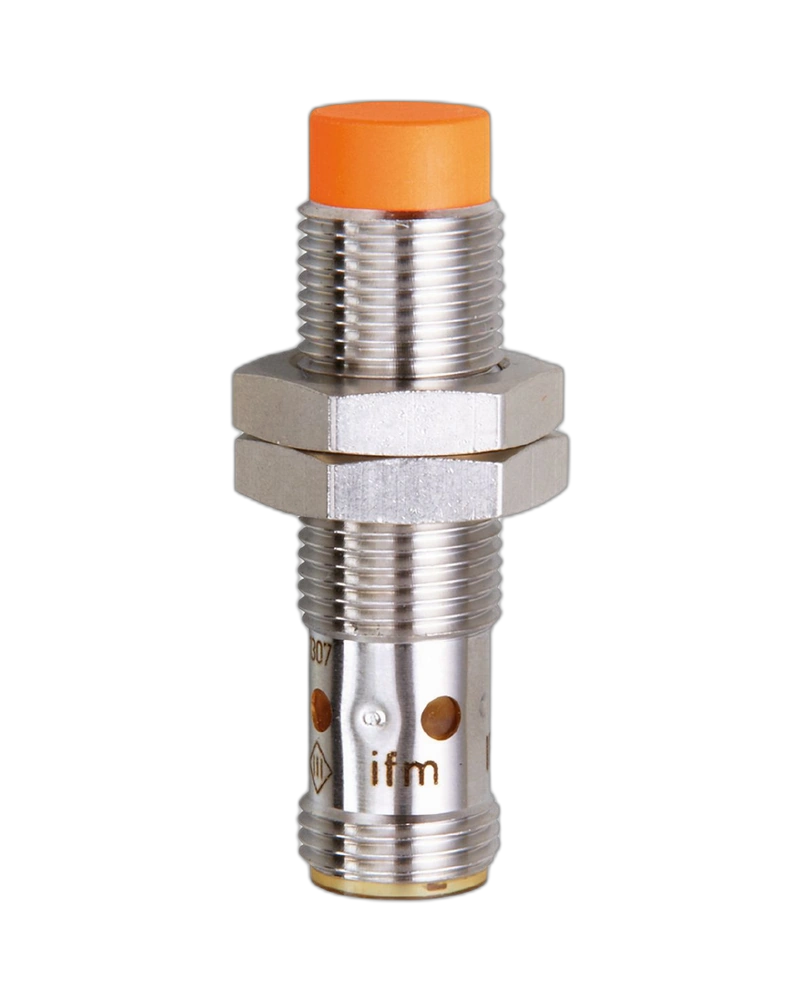

The IFM IFB3004BBPKG/US-104 Inductive Sensor provides dependable metal detection with a 4 mm sensing range and PNP normally open output. Its compact M12 housing, gold-plated contacts, and IP67 protection make it suitable for industrial automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IFB3004BBPKG/US-104 Inductive Sensor is designed for accurate metal object detection in Industrial Automation UAE applications.
With a 4 mm sensing range and flush-mountable M12 construction, it supports reliable position and presence detection in automated machinery. The sensor operates at 10–30 V DC with a switching frequency of up to 250 Hz.
Its robust brass housing, gold-plated contacts, and IP67 protection provide reliable operation in industrial environments.
• 4 mm sensing range
• PNP normally open output
• 10–30 V DC operation
• 250 Hz switching frequency
• M12 x 1 threaded housing
• Flush mountable
• IP67 protection
• Gold-plated contacts
• Short-circuit protection
• Overload protection
Ideal for factory automation, conveyors, assembly machinery, packaging equipment, position detection, and industrial production lines.
| Specification | Details |
|---|---|
| Product Model | IFB3004BBPKG/US-104 |
| Part Number | IF5909 |
| Product Type | Inductive Proximity Sensor |
| Sensing Range | 4 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–30 V DC |
| Current Consumption | < 10 mA |
| Switching Frequency | 250 Hz |
| Permanent Current Rating | 200 mA |
| Operating Distance | 0–3.24 mm |
| Mounting | Flush mountable |
| Thread | M12 x 1 |
| Protection Rating | IP67 |
| Ambient Temperature | -25°C to +70°C |
| Connection | M12 A-coded connector |
| Contacts | Gold-plated |
| Housing Material | Brass, white-bronze coated |
| Status Indicator | 4 × Yellow LED |
| Dimensions | M12 x 1 / L = 45 mm |
| Weight | 24.7 g |
