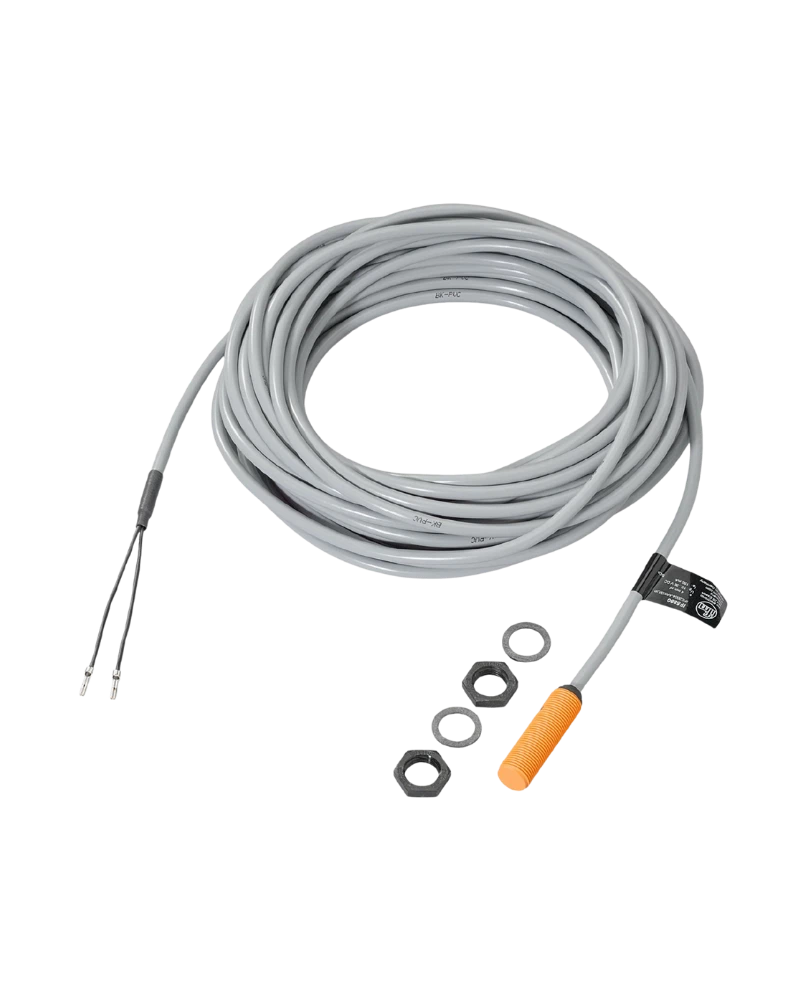

The IFM IFC2004-ARKG/UP/6M Inductive Sensor offers reliable non-contact metal detection with a 4 mm sensing range and flexible PNP/NPN output. Its 6 m PVC cable and IP67 protection support reliable industrial automation installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IFC2004-ARKG/UP/6M Inductive Sensor is designed for dependable object detection in Industrial Automation UAE applications.
Its 4 mm sensing range, non-flush mounting design, and selectable PNP/NPN electrical configuration provide flexible integration with industrial control systems. The sensor operates from 10–36 V DC and supports switching frequencies up to 1500 Hz.
The integrated 6 m PVC cable, IP67 protection, and compact M12 housing make it suitable for conveyors, production lines, and Industrial Automation Components UAE.
• 4 mm sensing range
• PNP/NPN selectable design
• Normally open output
• 10–36 V DC operation
• Switching frequency up to 1500 Hz
• M12 x 1 threaded housing
• Non-flush mountable
• 6 m PVC cable
• IP67 protection
• Short-circuit and overload protection
Ideal for conveyor systems, factory automation, machine monitoring, material handling, production lines, and industrial equipment.
| Specification | Details |
|---|---|
| Product Model | IFC2004-ARKG/UP/6M |
| Part Number | IF5908 |
| Product Type | Inductive Proximity Sensor |
| Sensing Range | 4 mm |
| Electrical Design | PNP/NPN |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Current Consumption | < 10 mA |
| Switching Frequency | 1500 Hz |
| Permanent Current Rating | 150 mA |
| Operating Distance | 0–3.25 mm |
| Mounting | Non-flush mountable |
| Thread | M12 x 1 |
| Cable Length | 6 m |
| Cable Material | PVC |
| Protection Rating | IP67 |
| Ambient Temperature | -25°C to +80°C |
| Housing Material | PBT |
| Status Indicator | Yellow LED |
| Weight | 195 g |
