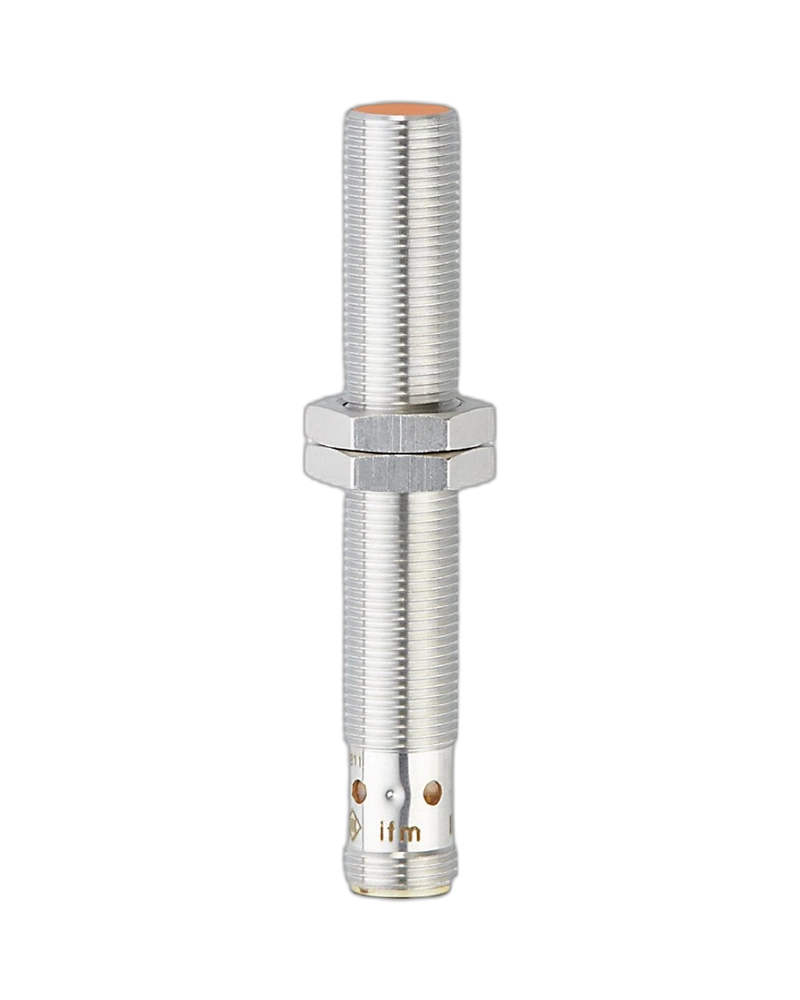

The IFM IFK3004BBPKG/US-104 Inductive Sensor provides reliable metal detection with a 4 mm sensing range and PNP normally open output. Its IP68 coolant protection makes it suitable for machine tools and metalworking applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IFK3004BBPKG/US-104 Inductive Sensor is designed for dependable detection in Industrial Automation UAE and machine automation applications.
Its 4 mm sensing range, flush-mountable M12 housing, and PNP output provide accurate detection of metallic objects. The sensor operates at 10–30 V DC with a switching frequency of 700 Hz.
Designed for harsh industrial environments, it features gold-plated contacts, IP68 coolant protection, and oil/coolant resistance, making it suitable for industrial equipment and metalworking applications.
• 4 mm sensing range
• PNP normally open output
• 10–30 V DC operation
• 700 Hz switching frequency
• M12 x 1 threaded housing
• Flush mountable
• IP68 coolant protection
• Gold-plated contacts
• Oil and coolant resistant
• Yellow LED switching indication
Ideal for machine tools, metalworking, factory automation, conveyor systems, position monitoring, and industrial production equipment.
| Specification | Details |
|---|---|
| Product Model | IFK3004BBPKG/US-104 |
| Part Number | IF5906 |
| Product Type | Inductive Proximity Sensor |
| Sensing Range | 4 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–30 V DC |
| Current Consumption | < 10 mA |
| Switching Frequency | 700 Hz |
| Permanent Current Rating | 200 mA |
| Operating Distance | 0–3.24 mm |
| Mounting | Flush mountable |
| Thread | M12 x 1 |
| Protection Rating | IP68, Coolant |
| Ambient Temperature | -25°C to +70°C |
| Connection | M12 connector |
| Contacts | Gold-plated |
| Status Indicator | 4 × Yellow LED |
| Dimensions | M12 x 1 / L = 60 mm |
| Weight | 27.8 g |
