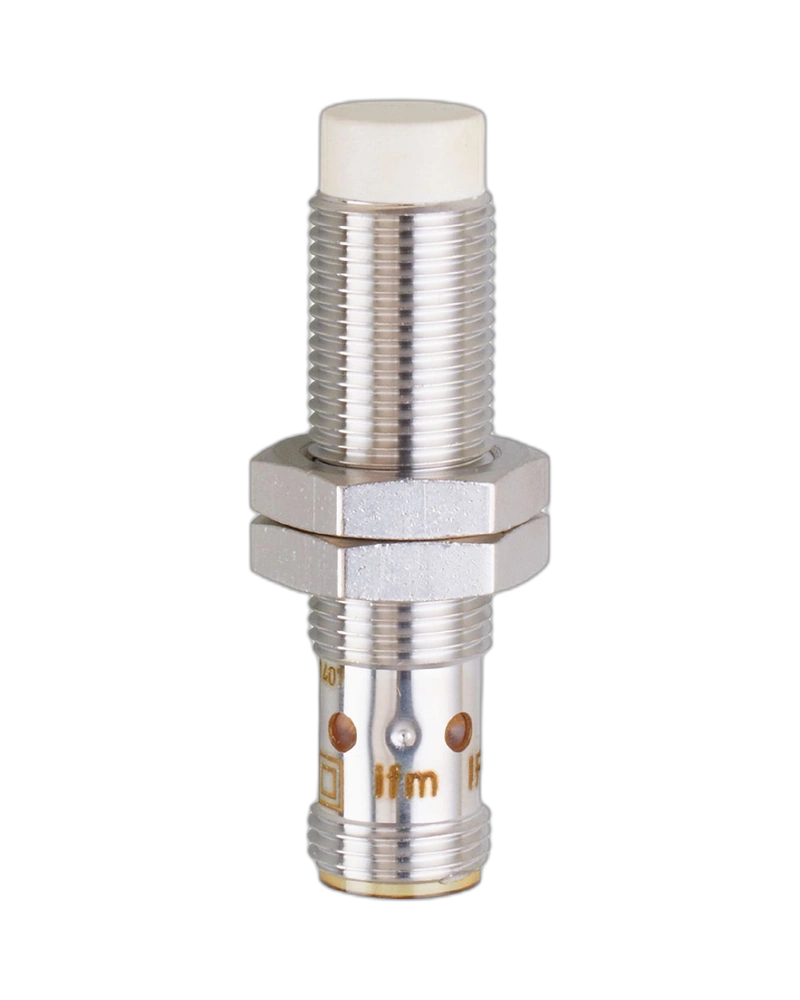

The IFM IFK3007-BPKG/US-104 Inductive Sensor is designed for reliable non-contact metal detection with a 7 mm sensing range. Its robust M12 design, PNP output, and IP68 coolant protection make it suitable for demanding industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IFK3007-BPKG/US-104 Inductive Sensor provides reliable metal detection for Industrial Automation UAE applications, particularly in machine tools and metalworking environments.
With an extended 7 mm sensing range, flush-independent installation, and PNP normally open output, it supports accurate object and position detection. The sensor operates on 10–30 V DC and offers a switching frequency of up to 700 Hz.
Its robust metal housing, gold-plated contacts, and IP68 protection for coolant environments make it suitable for demanding Industrial Sensors and factory automation applications.
• 7 mm sensing range
• PNP normally open output
• 10–30 V DC operation
• Switching frequency up to 700 Hz
• M12 x 1 threaded housing
• Non-flush mountable
• IP68 protection for coolant environments
• Gold-plated contacts
• Short-circuit and overload protection
• Yellow LED switching indication
Ideal for machine tools, metalworking, factory automation, conveyor systems, position detection, and industrial production equipment.
| Specification | Details |
|---|---|
| Product Model | IFK3007-BPKG/US-104 |
| Part Number | IF5905 |
| Product Type | Inductive Proximity Sensor |
| Sensing Range | 7 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–30 V DC |
| Current Consumption | < 10 mA |
| Switching Frequency | 700 Hz |
| Permanent Current Rating | 200 mA |
| Operating Distance | 0–5.67 mm |
| Mounting | Non-flush mountable |
| Thread | M12 x 1 |
| Protection Rating | IP68, Coolant |
| Ambient Temperature | -25°C to +70°C |
| Connection | M12 connector |
| Housing Material | Brass, white-bronze coated |
| Status Indicator | 4 × Yellow LED |
| Weight | 27.4 g |
