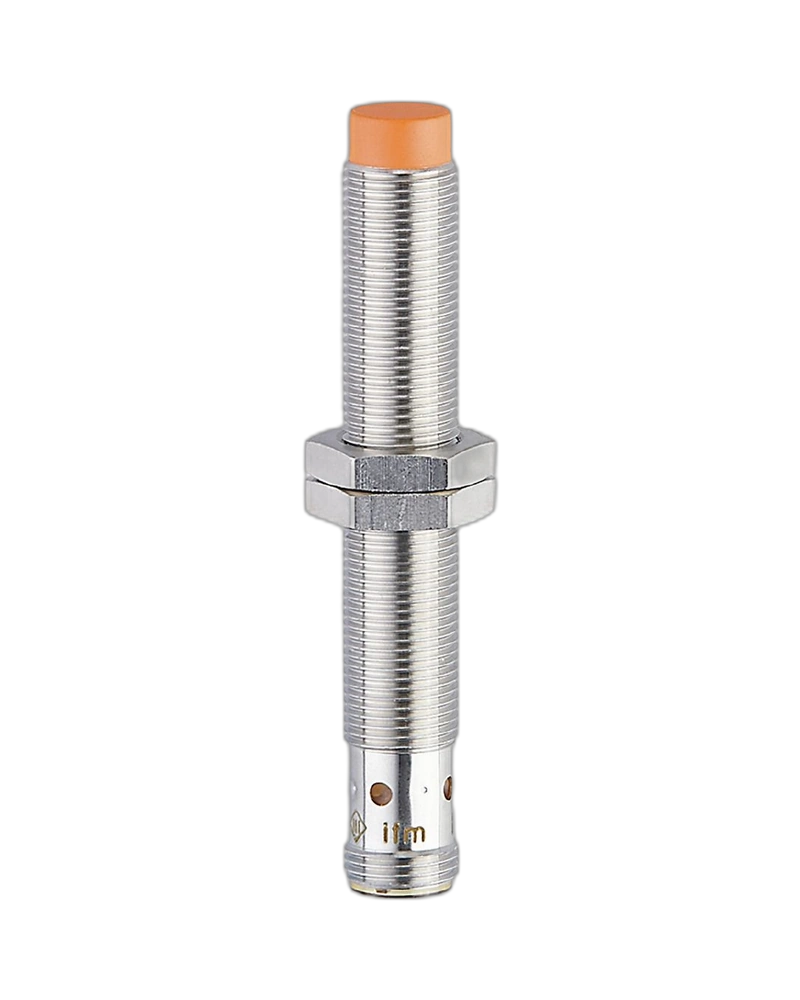

The IFM IFK4004-CPKG/US-104 Inductive Sensor provides reliable metal detection with a 4 mm sensing range and complementary PNP output. Its M12 connector, gold-plated contacts, and IP67 protection make it suitable for industrial automation and machine monitoring applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IFK4004-CPKG/US-104 Inductive Sensor is designed for dependable metal detection in Industrial Automation UAE applications.
Its 4 mm sensing range and non-flush M12 housing provide reliable object and position detection for automated machinery and production systems. The complementary PNP output supports flexible control applications.
Operating from 10–30 V DC with a switching frequency of up to 1200 Hz, the sensor supports reliable automated processes. Its gold-plated contacts and IP67 protection provide dependable industrial performance.
• 4 mm sensing range
• PNP complementary output
• 10–30 V DC operation
• Switching frequency up to 1200 Hz
• M12 x 1 threaded housing
• Non-flush mountable
• Gold-plated contacts
• IP67 protection
• Short-circuit and overload protection
• Yellow LED switching indication
Ideal for factory automation, conveyor systems, assembly machinery, packaging equipment, machine monitoring, position detection, and industrial production lines.
| Specification | Details |
|---|---|
| Product Model | IFK4004-CPKG/US-104 |
| Part Number | IF5904 |
| Product Type | Inductive Proximity Sensor |
| Sensing Range | 4 mm |
| Electrical Design | PNP |
| Output Function | Complementary |
| Operating Voltage | 10–30 V DC |
| Current Consumption | < 10 mA at 24 V |
| Switching Frequency | 1200 Hz |
| Permanent Current Rating | 200 mA |
| Operating Distance | 0–3.24 mm |
| Mounting | Non-flush mountable |
| Thread | M12 x 1 |
| Dimensions | M12 x 1 / L = 70 mm |
| Housing Material | Brass, white-bronze coated |
| Protection Rating | IP67 |
| Ambient Temperature | -25°C to +80°C |
| Connection | M12 connector |
| Contacts | Gold-plated |
| Status Indicator | 4 × Yellow LED |
| Weight | Approx. 30 g |
