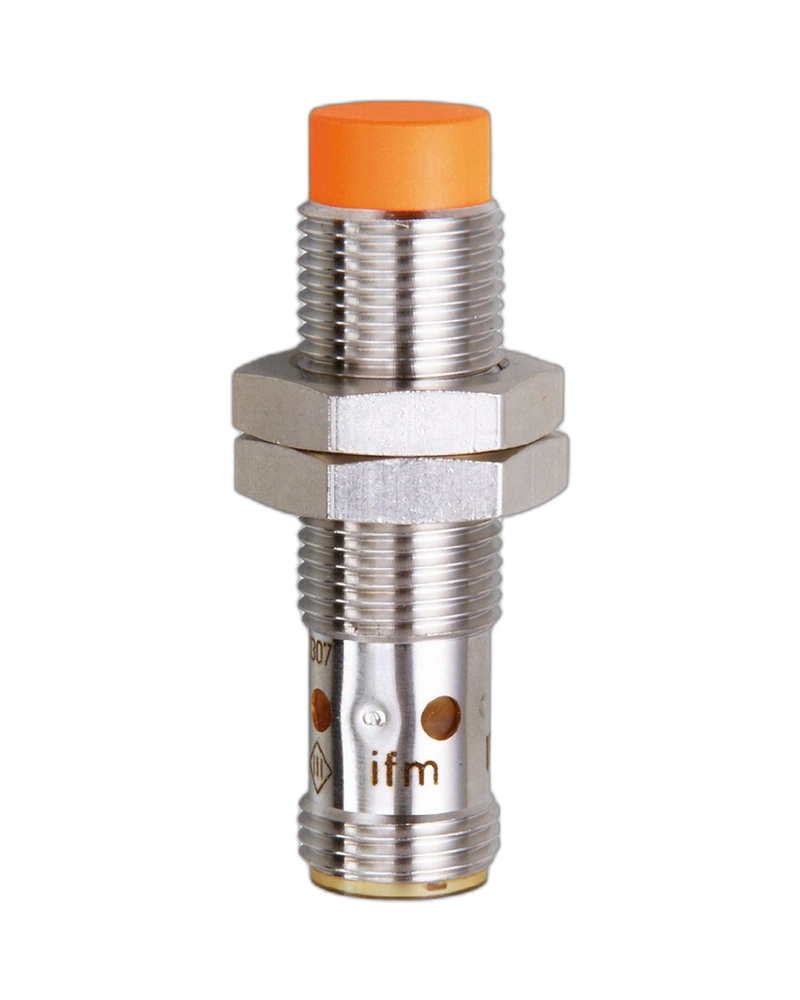

The IFM IFK2007-FRKG/2LED/US-104 Inductive Sensor offers an extended 7 mm sensing range for reliable non-contact metal detection. Its selectable PNP/NPN output, optical setting aid, and IP68 coolant protection make it suitable for demanding industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IFK2007-FRKG/2LED/US-104 Inductive Sensor is designed for reliable metal detection in Industrial Automation UAE, especially in machine tools and metalworking environments.
With an extended 7 mm sensing range, the sensor provides greater detection distance while maintaining reliable operation. Its selectable PNP/NPN and normally open/normally closed output functions provide flexible PLC integration.
The sensor features an optical setting aid, gold-plated contacts, and robust construction resistant to oils and coolants. Its IP68 coolant protection supports reliable performance in harsh industrial environments.
• 7 mm sensing range
• Increased sensing range
• PNP/NPN selectable output
• Normally open / normally closed selectable
• 10–36 V DC operation
• 500 Hz switching frequency
• Optical setting aid
• Gold-plated contacts
• Non-flush mountable
• IP68 coolant protection
• Oil and coolant resistant
Ideal for machine tools, metalworking equipment, factory automation, conveyor systems, position monitoring, production machinery, and industrial equipment.
| Specification | Details |
|---|---|
| Product Model | IFK2007-FRKG/2LED/US-104 |
| Part Number | IF5898 |
| Product Type | Inductive Proximity Sensor |
| Sensing Range | 7 mm |
| Electrical Design | PNP/NPN |
| Output Function | Normally Open / Normally Closed, Selectable |
| Operating Voltage | 10–36 V DC |
| Permanent Current Rating | 100 mA |
| Switching Frequency | 500 Hz |
| Operating Distance | 0–5.7 mm |
| Mounting | Non-flush mountable |
| Thread | M12 x 1 |
| Dimensions | M12 x 1 / L = 60 mm |
| Housing Material | Brass, white-bronze coated |
| Protection Rating | IP68, Coolant |
| Ambient Temperature | -25°C to +70°C |
| Special Features | Increased sensing range, optical setting aid |
| Contacts | Gold-plated |
| Status Indicator | 4 × Yellow LED + Red setting LED |
| Weight | 27.4 g |
