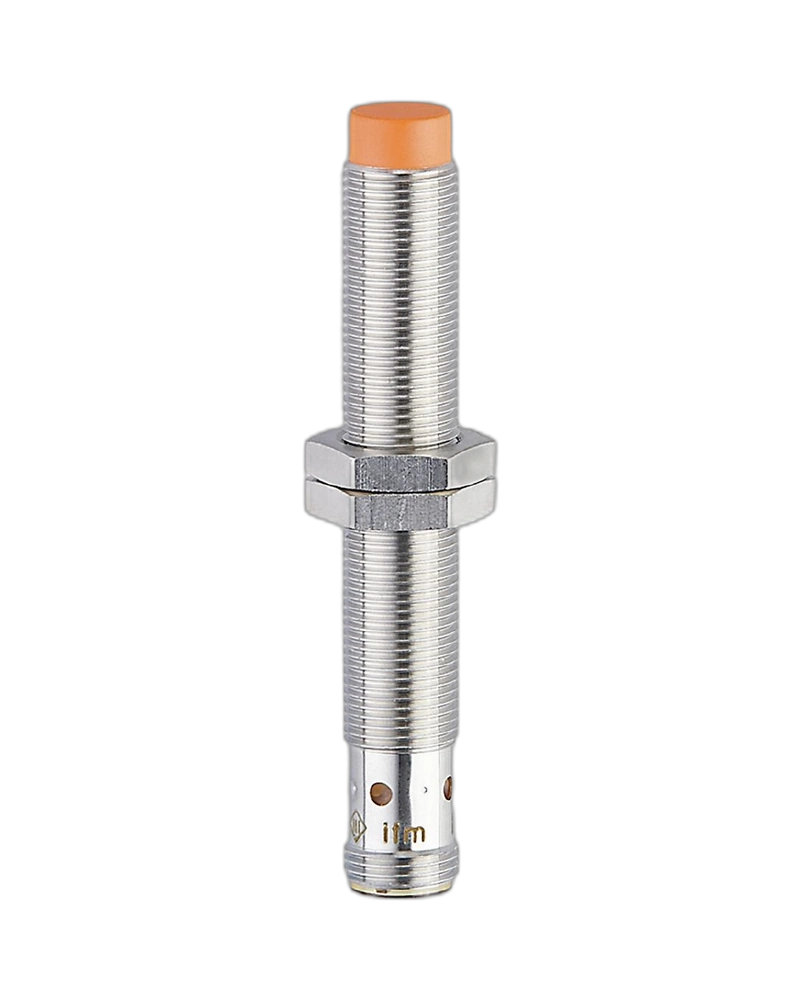

The IFM IFK2004BFRKG/2LED/US-104 Inductive Sensor provides reliable metal detection with a 4 mm sensing range and selectable PNP/NPN output. Its increased sensing range, optical setting aid, and IP68 coolant protection make it suitable for demanding industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IFK2004BFRKG/2LED/US-104 Inductive Sensor is designed for reliable metal detection in Industrial Automation UAE, particularly for machine tools and metalworking applications.
Its 4 mm sensing range, flush-mountable M12 housing, and selectable PNP/NPN output provide flexible and accurate detection. The programmable normally open/normally closed output allows easy integration with industrial control systems.
The sensor features an optical setting aid, gold-plated contacts, and resistance to oils and coolants. Its IP68 coolant protection provides reliable operation in demanding industrial environments.
• 4 mm sensing range
• Increased sensing range
• PNP/NPN selectable output
• Normally open / normally closed selectable
• 10–36 V DC operation
• 700 Hz switching frequency
• Optical setting aid
• Gold-plated contacts
• Flush mountable
• IP68 coolant protection
• Oil and coolant resistant
Ideal for machine tools, metalworking, factory automation, conveyors, position detection, production machinery, and industrial equipment exposed to oils and coolants.
| Specification | Details |
|---|---|
| Product Model | IFK2004BFRKG/2LED/US-104 |
| Part Number | IF5896 |
| Product Type | Inductive Proximity Sensor |
| Sensing Range | 4 mm |
| Electrical Design | PNP/NPN |
| Output Function | Normally Open / Normally Closed, Selectable |
| Operating Voltage | 10–36 V DC |
| Permanent Current Rating | 100 mA |
| Switching Frequency | 700 Hz |
| Operating Distance | 0–3.25 mm |
| Mounting | Flush mountable |
| Thread | M12 x 1 |
| Dimensions | M12 x 1 / L = 60 mm |
| Protection Rating | IP68, Coolant |
| Ambient Temperature | -25°C to +70°C |
| Special Features | Increased sensing range, optical setting aid |
| Contacts | Gold-plated |
| Status Indicator | Yellow LED + red setting LED |
| Weight | 27.8 g |
