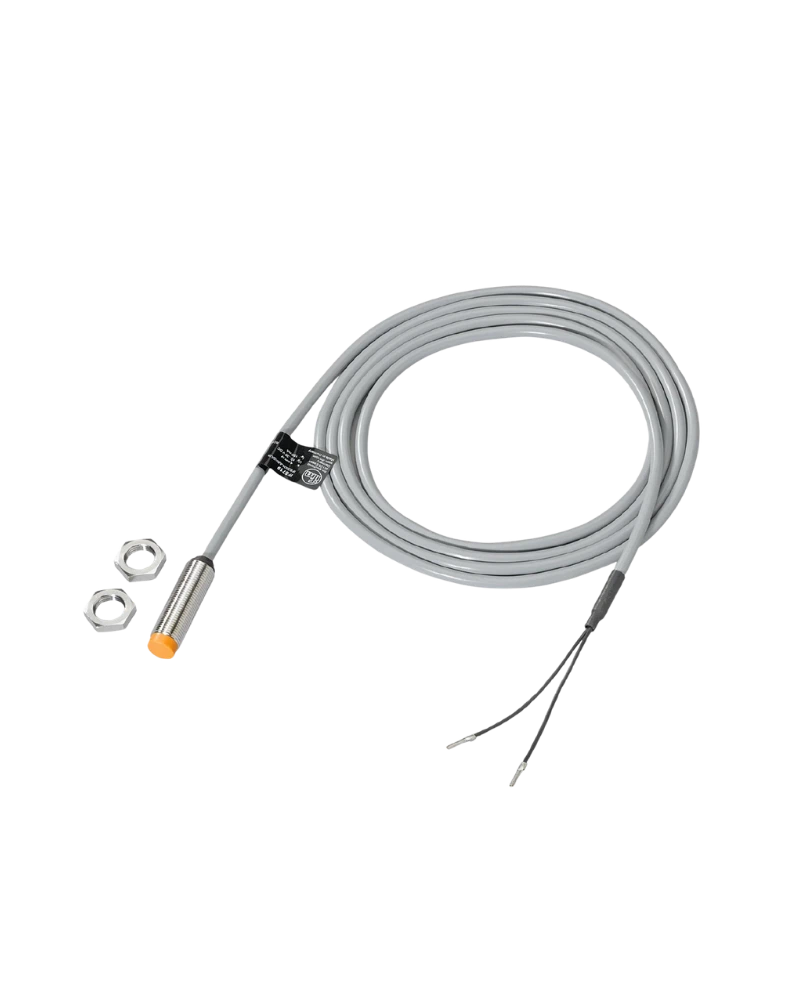

The IFM IFB2004BBROG/UP/3M/PH Inductive Sensor provides reliable metal detection with an increased 4 mm sensing range and PNP/NPN normally closed output. Its compact M12 housing, 3 m cable, and IP67 protection support industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IFB2004BBROG/UP/3M/PH Inductive Sensor is designed for dependable metal detection in Industrial Automation UAE applications.
Its 4 mm increased sensing range and flush-mountable M12 housing provide accurate object detection in automated machinery and production systems. The PNP/NPN normally closed output provides flexible control integration.
The sensor operates from 10–36 V DC and includes a 3 m PUR/PVC cable. Its IP67 protection makes it suitable for general industrial environments.
• 4 mm sensing range
• Increased sensing range
• PNP/NPN electrical design
• Normally closed output
• 10–36 V DC operation
• 110 Hz switching frequency
• M12 x 1 threaded housing
• Flush mountable
• 3 m PUR/PVC cable
• IP67 protection
Ideal for factory automation, conveyor systems, machine monitoring, position detection, assembly machinery, production equipment, and industrial control applications.
| Specification | Details |
|---|---|
| Product Model | IFB2004BBROG/UP/3M/PH |
| Part Number | IF5888 |
| Product Type | Inductive Proximity Sensor |
| Sensing Range | 4 mm |
| Electrical Design | PNP/NPN |
| Output Function | Normally Closed |
| Operating Voltage | 10–36 V DC |
| Maximum Voltage Drop | 5 V |
| Permanent Current Rating | 100 mA |
| Switching Frequency | 110 Hz |
| Operating Distance | 0–3.25 mm |
| Mounting | Flush mountable |
| Thread | M12 x 1 |
| Dimensions | M12 x 1 / L = 40 mm |
| Housing Material | Brass, white-bronze coated |
| Cable Length | 3 m |
| Cable Material | PUR/PVC |
| Protection Rating | IP67 |
| Ambient Temperature | -25°C to +70°C |
| Status Indicator | Yellow LED |
| Weight | 89.5 g |
