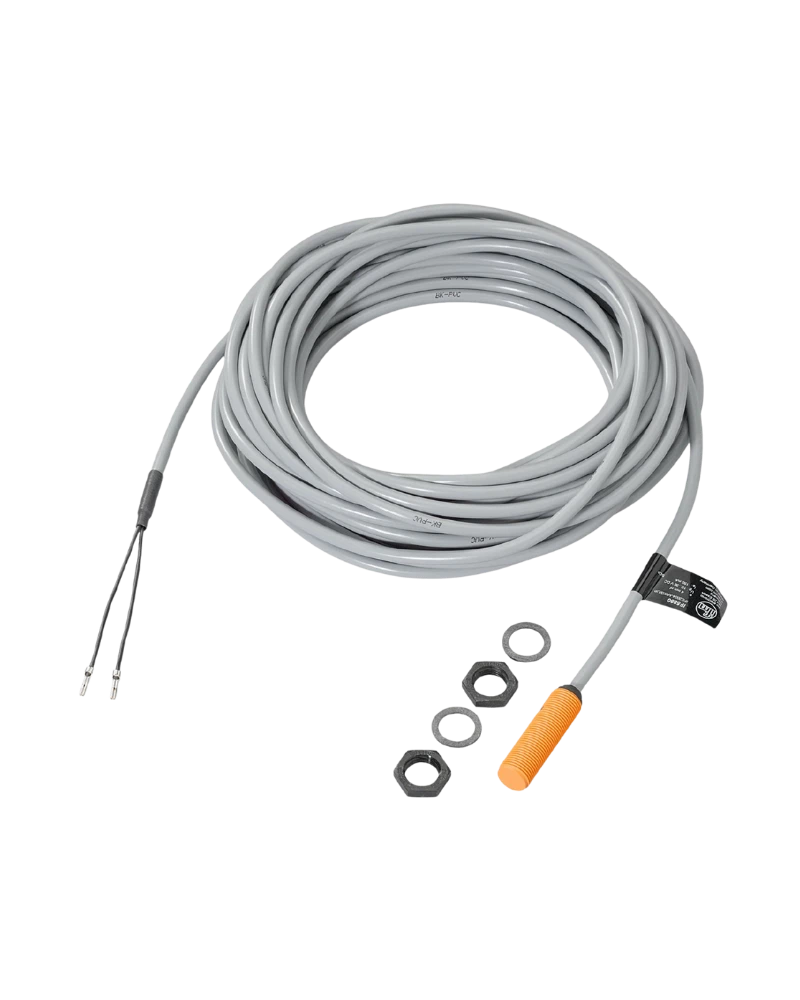

The IFM IFC2004-ARKG/UP/10M Inductive Sensor provides reliable metal detection with a 4 mm sensing range and selectable PNP/NPN output. Its 10 m PVC cable, 1500 Hz switching frequency, and IP67 protection make it suitable for industrial automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IFC2004-ARKG/UP/10M Inductive Sensor is designed for dependable object detection in Industrial Automation UAE applications.
Its 4 mm sensing range and non-flush M12 housing provide reliable detection for conveyors, machines, and automated production equipment. The PNP/NPN design offers flexible integration with industrial control systems.
With a 10 m PVC cable and switching frequency of up to 1500 Hz, the sensor is suitable for applications requiring extended connection distance and fast detection.
• 4 mm sensing range
• PNP/NPN selectable design
• Normally open output
• 10–36 V DC operation
• Switching frequency up to 1500 Hz
• M12 x 1 threaded housing
• Non-flush mountable
• 10 m PVC cable
• IP67 protection
• Short-circuit and overload protection
Ideal for conveyor systems, factory automation, machine monitoring, material handling, assembly lines, production equipment, and industrial automation systems.
| Specification | Details |
|---|---|
| Product Model | IFC2004-ARKG/UP/10M |
| Part Number | IF5880 |
| Product Type | Inductive Proximity Sensor |
| Sensing Range | 4 mm |
| Electrical Design | PNP/NPN |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Permanent Current Rating | 150 mA |
| Switching Frequency | 1500 Hz |
| Operating Distance | 0–3.25 mm |
| Mounting | Non-flush mountable |
| Thread | M12 x 1 |
| Dimensions | M12 x 1 / L = 40 mm |
| Housing Material | PBT |
| Cable Length | 10 m |
| Cable Material | PVC |
| Protection Rating | IP67 |
| Ambient Temperature | -25°C to +80°C |
| Status Indicator | Yellow LED |
| Weight | 329.7 g |
