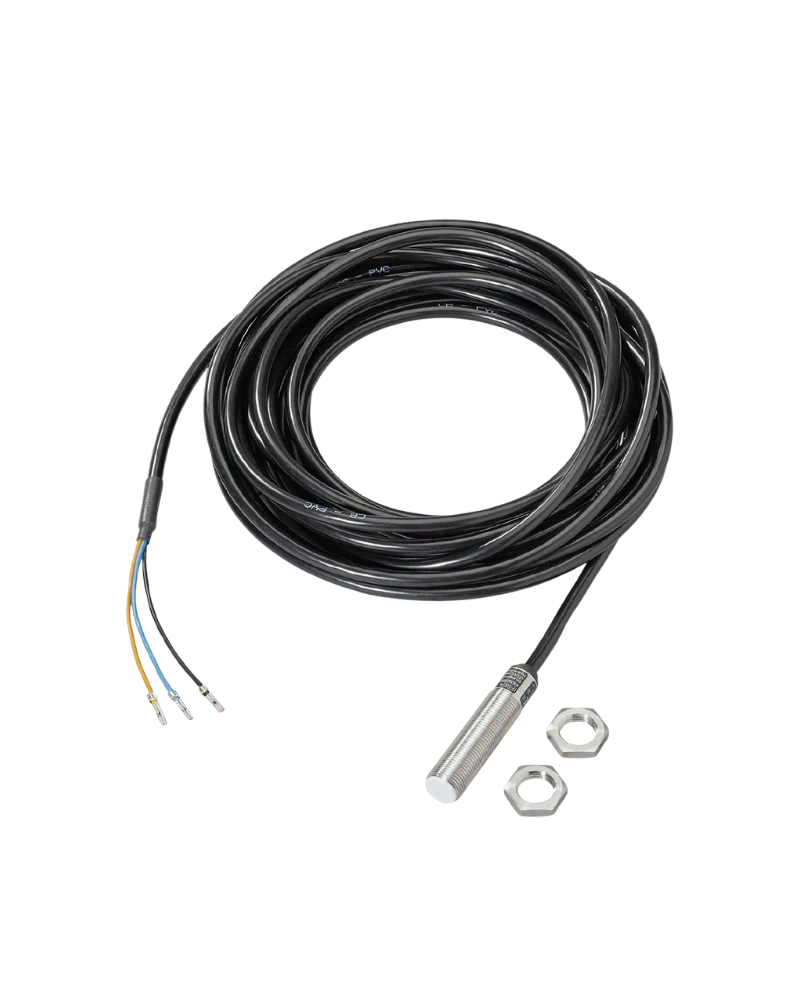

The IFM IFK3003BBPKG/V4A/6M Inductive Sensor provides reliable metal detection with a 3 mm sensing range and PNP normally open output. Its stainless-steel housing, 6 m PVC cable, and IP67 protection support flexible industrial installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IFK3003BBPKG/V4A/6M Inductive Sensor is designed for reliable detection in Industrial Automation UAE applications where extended cable length is required.
Its 3 mm sensing range and flush-mountable M12 housing provide accurate metal detection for machinery, conveyors, and production systems. The PNP normally open output allows easy PLC integration.
With a 6 m PVC cable, stainless-steel housing, and IP67 protection, this sensor is suitable for industrial automation equipment requiring flexible installation.
• 3 mm sensing range
• PNP normally open output
• 10–36 V DC operation
• 400 Hz switching frequency
• M12 x 1 threaded housing
• Flush mountable
• Stainless-steel housing
• 6 m PVC cable
• IP67 protection
• Yellow LED indication
Ideal for factory automation, conveyor systems, machine monitoring, assembly equipment, production lines, position detection, and industrial automation components.
| Specification | Details |
|---|---|
| Product Model | IFK3003BBPKG/V4A/6M |
| Part Number | IF5878 |
| Product Type | Inductive Proximity Sensor |
| Sensing Range | 3 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Current Consumption | 15 mA at 24 V |
| Switching Frequency | 400 Hz |
| Permanent Current Rating | 250 mA |
| Operating Distance | 0–2.4 mm |
| Mounting | Flush mountable |
| Thread | M12 x 1 |
| Dimensions | M12 x 1 / L = 52 mm |
| Housing Material | Stainless Steel / PBT |
| Cable Length | 6 m |
| Cable Material | PVC |
| Protection Rating | IP67 |
| Ambient Temperature | -25°C to +80°C |
| Status Indicator | Yellow LED |
