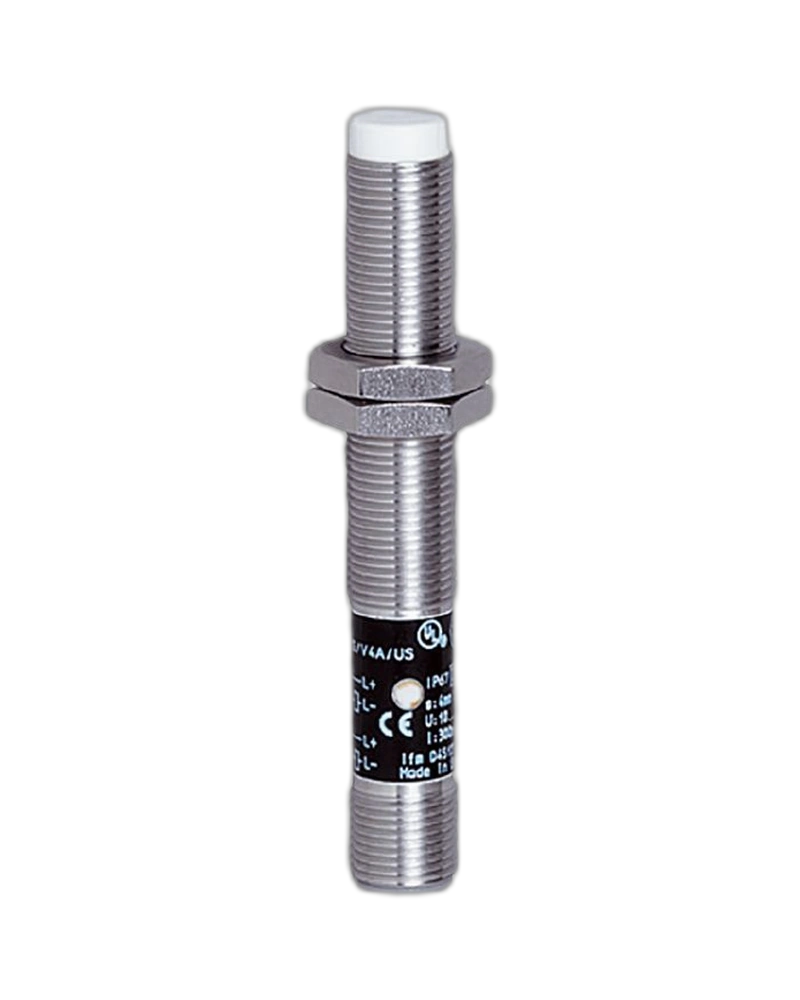

The IFM IFA3002-BPKG/V4A/US-100-DPS Inductive Sensor provides precise metal detection with a 2 mm sensing range. Its stainless-steel housing, PNP output, gold-plated contacts, and IP67 protection make it suitable for factory automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IFA3002-BPKG/V4A/US-100-DPS Inductive Sensor is designed for reliable detection in Industrial Automation UAE applications and industrial production systems.
With a 2 mm sensing range and flush-mountable M12 housing, it provides accurate detection of metallic objects in compact machine installations. The PNP normally open output enables easy connection to PLCs and automation controllers.
Its stainless-steel housing, gold-plated contacts, and IP67 protection provide dependable performance in demanding industrial environments.
• 2 mm sensing range
• PNP normally open output
• 10–36 V DC operation
• 800 Hz switching frequency
• Stainless-steel housing
• Flush mountable
• Gold-plated contacts
• IP67 protection
• Short-circuit and overload protection
• Yellow LED switching indication
Ideal for factory automation, machine monitoring, conveyor systems, assembly machinery, position detection, and industrial automation equipment.
| Specification | Details |
|---|---|
| Product Model | IFA3002-BPKG/V4A/US-100-DPS |
| Part Number | IF5851 |
| Product Type | Inductive Proximity Sensor |
| Sensing Range | 2 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Current Consumption | 15 mA at 24 V |
| Switching Frequency | 800 Hz |
| Permanent Current Rating | 250 mA |
| Operating Distance | 0–1.6 mm |
| Mounting | Flush mountable |
| Thread | M12 x 1 |
| Dimensions | M12 x 1 / L = 83 mm |
| Housing Material | Stainless Steel 316Ti |
| Protection Rating | IP67 |
| Ambient Temperature | -25°C to +80°C |
| Connection | M12 A-coded connector |
| Contacts | Gold-plated |
| Status Indicator | Yellow LED |
| Weight | 33 g |
