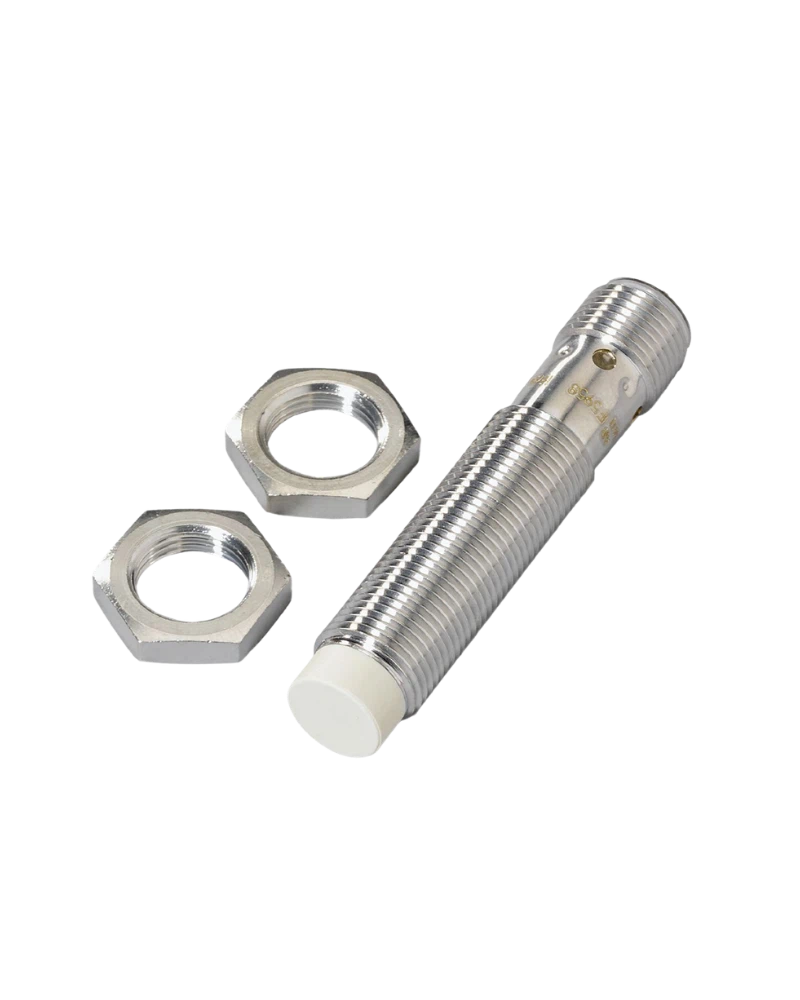

The IFM IFK3004UBPKG/V4A/US-100-DPS Inductive Sensor provides reliable metal detection with a 4 mm sensing range and magnetic-field immunity. Its stainless-steel housing, PNP output, and IP67 protection make it suitable for demanding industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IFK3004UBPKG/V4A/US-100-DPS Inductive Sensor is designed for reliable sensing in Industrial Automation UAE and industrial equipment applications.
Its 4 mm sensing range and magnetic-field-immune design make it suitable for machinery and environments where electromagnetic interference may affect conventional sensors. The PNP normally open output provides straightforward PLC integration.
The sensor operates from 10–36 V DC and supports a high switching frequency of up to 1400 Hz. Its stainless-steel construction and IP67 protection provide reliable industrial performance.
• 4 mm sensing range
• Magnetic-field immune
• PNP normally open output
• 10–36 V DC operation
• Switching frequency up to 1400 Hz
• Stainless-steel housing
• Non-flush mountable
• IP67 protection
• M12 A-coded connector
• Short-circuit and overload protection
Ideal for factory automation, machine tools, metalworking equipment, conveyor systems, assembly machinery, and industrial production lines.
| Specification | Details |
|---|---|
| Product Model | IFK3004UBPKG/V4A/US-100-DPS |
| Part Number | IF5850 |
| Product Type | Inductive Proximity Sensor |
| Sensing Range | 4 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Current Consumption | 15 mA at 24 V |
| Switching Frequency | 1400 Hz |
| Permanent Current Rating | 250 mA |
| Operating Distance | 0–3.25 mm |
| Mounting | Non-flush mountable |
| Thread | M12 x 1 |
| Dimensions | M12 x 1 / L = 60 mm |
| Housing Material | Stainless Steel 316Ti |
| Special Feature | Magnetic-field immune |
| Protection Rating | IP67 |
| Ambient Temperature | -25°C to +80°C |
| Connection | M12 A-coded connector |
| Status Indicator | Yellow LED |
| Weight | 45.7 g |
