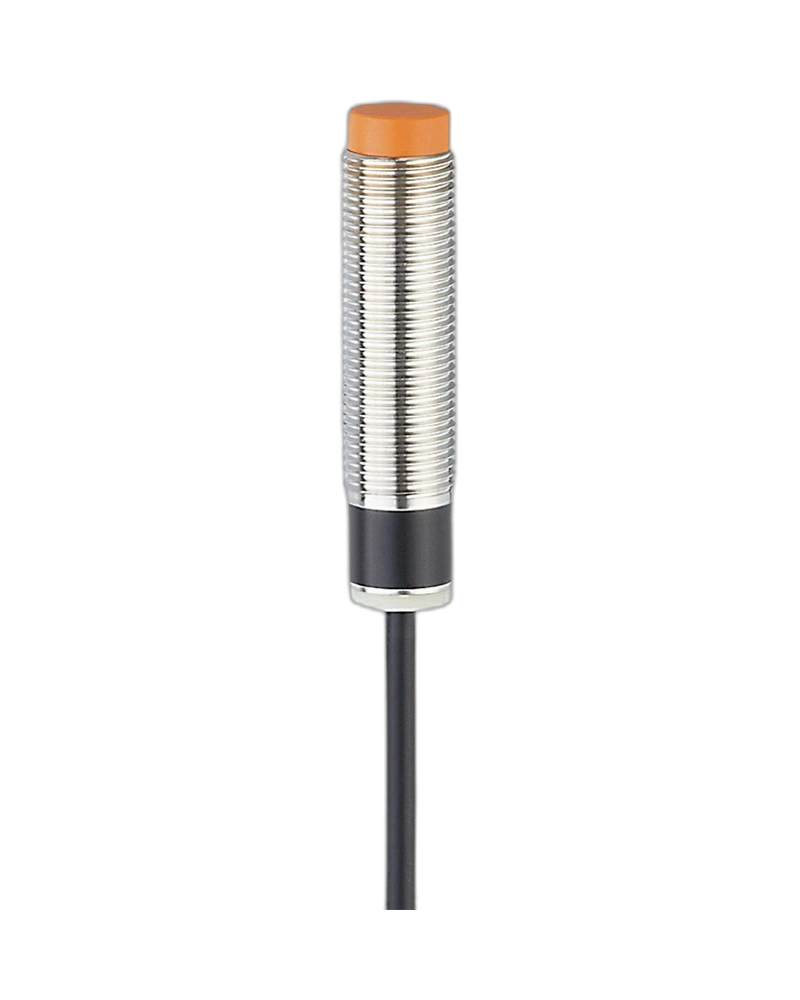

The IFM IFK3003BBPKG/V4A Inductive Sensor provides reliable metal detection with a 3 mm sensing range and PNP normally open output. Its stainless-steel housing, flush mounting, and IP67 protection make it suitable for industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IFK3003BBPKG/V4A Inductive Sensor is designed for dependable object detection in Industrial Automation UAE and factory automation systems.
Its 3 mm sensing range and flush-mountable M12 design provide accurate detection in automated machinery and production equipment. The PNP normally open output supports easy integration with PLCs and control systems.
Constructed with a stainless-steel housing, the sensor provides robust performance for industrial applications. It operates from 10–36 V DC and supports switching frequencies up to 400 Hz.
• 3 mm sensing range
• PNP normally open output
• 10–36 V DC operation
• Switching frequency up to 400 Hz
• M12 x 1 threaded design
• Flush mountable
• Stainless-steel housing
• IP67 protection
• 2 m PVC cable
• Yellow LED status indication
Ideal for factory automation, assembly machinery, conveyor systems, machine monitoring, position detection, metal object detection, and industrial production equipment.
| Specification | Details |
|---|---|
| Product Model | IFK3003BBPKG/V4A |
| Part Number | IF5837 |
| Product Type | Inductive Proximity Sensor |
| Sensing Range | 3 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Current Consumption | 15 mA at 24 V |
| Switching Frequency | 400 Hz |
| Permanent Current Rating | 200 mA |
| Operating Distance | 0–2.4 mm |
| Mounting | Flush mountable |
| Thread | M12 x 1 |
| Dimensions | M12 x 1 / L = 52 mm |
| Housing Material | Stainless Steel 316Ti / PBT |
| Protection Rating | IP67 |
| Ambient Temperature | -25°C to +80°C |
| Connection | 2 m PVC cable |
| Status Indicator | Yellow LED |
| Weight | 98.2 g |
