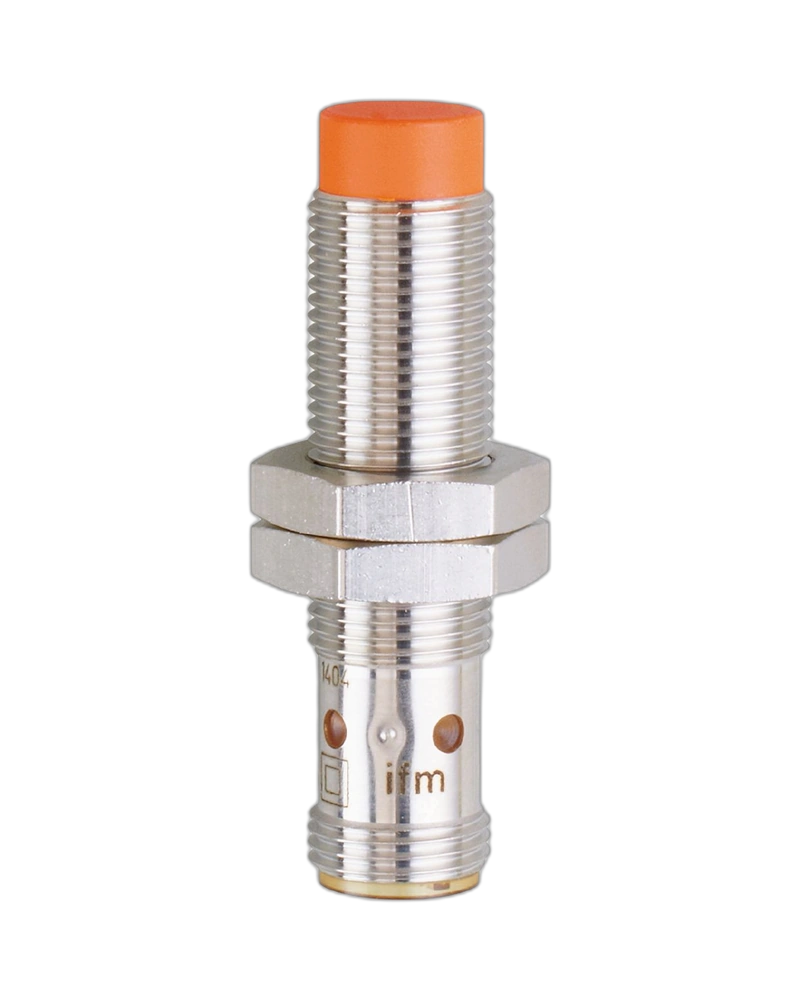

The IFM IFK3004-BPKG/US-104 Inductive Sensor provides reliable non-contact metal detection with a 4 mm sensing range. Its PNP output, M12 threaded housing, and IP67 protection make it suitable for industrial automation and machine monitoring applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IFK3004-BPKG/US-104 Inductive Sensor is designed for reliable metal detection in Industrial Automation UAE applications. It provides accurate object and position detection for automated machinery, conveyors, and production systems.
With a 4 mm sensing range and non-flush mounting design, the sensor offers reliable detection while supporting flexible installation. Its PNP normally open output enables easy integration with PLCs and industrial control systems.
The sensor operates at 10–30 V DC and supports a high switching frequency of up to 1400 Hz. Its robust brass housing and IP67 protection provide dependable performance in demanding industrial environments.
• 4 mm sensing range
• PNP normally open output
• 10–30 V DC operating voltage
• Switching frequency up to 1400 Hz
• M12 x 1 threaded housing
• Non-flush mountable
• IP67 protection rating
• Short-circuit and overload protection
• Gold-plated M12 contacts
• Yellow LED switching indication
Ideal for factory automation, conveyor systems, assembly machinery, packaging equipment, machine monitoring, position detection, and industrial production lines.
| Specification | Details |
|---|---|
| Product Model | IFK3004-BPKG/US-104 |
| Part Number | IF5826 |
| Product Type | Inductive Proximity Sensor |
| Sensing Range | 4 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–30 V DC |
| Permanent Current Rating | 250 mA |
| Switching Frequency | 1400 Hz |
| Operating Distance | 0–3.24 mm |
| Mounting | Non-flush mountable |
| Thread | M12 x 1 |
| Dimensions | M12 x 1 / L = 60 mm |
| Housing Material | Brass, white-bronze coated |
| Protection Rating | IP67 |
| Ambient Temperature | -25°C to +80°C |
| Connection | M12 connector, gold-plated contacts |
| Status Indicator | 4 × Yellow LED |
| Weight | 27.4 g |
