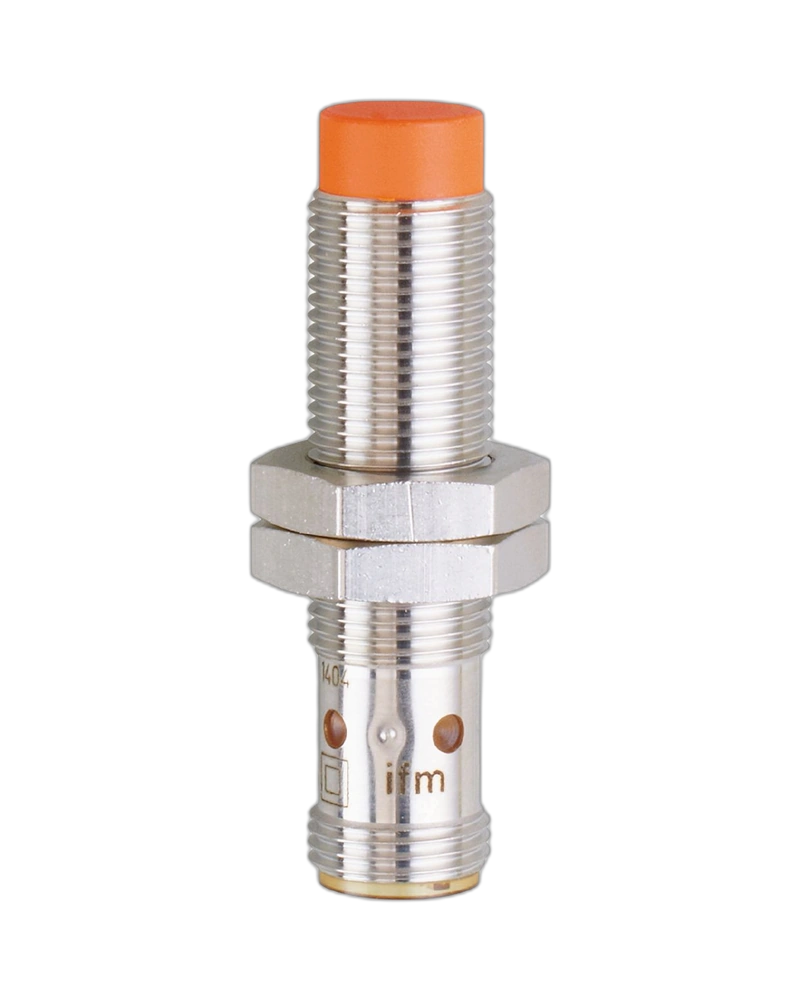

The IFM IFB3004-APKG/V4A/US-104 Inductive Sensor provides reliable 4 mm non-contact metal detection with a PNP normally closed output, stainless-steel housing, and 1400 Hz switching frequency.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IF5818 Inductive Sensor is designed for reliable detection and monitoring in Industrial Automation UAE applications. It helps detect metallic objects and machine positions without physical contact, supporting automated production processes.
With a 4 mm sensing range and non-flush M12 mounting, the sensor provides dependable detection for industrial machinery and production systems. Its PNP normally closed output makes it suitable for control applications where a normally closed sensing signal is required.
The stainless-steel housing supports robust industrial use, while the M12 connector and gold-plated contacts provide reliable electrical connectivity. Short-circuit and overload protection further support stable operation.
• 4 mm sensing range
• PNP normally closed output
• 10–30 V DC operating voltage
• 1400 Hz switching frequency
• Stainless-steel 316L housing
• Non-flush mounting
• M12 x 1 threaded design
• Gold-plated contacts
• IP65 protection
• Short-circuit and overload protection
• Red LED switching indication
Suitable for factory automation, machine safety monitoring, conveyor systems, assembly machinery, position detection, packaging equipment, and industrial control systems.
| Specification | Details |
|---|---|
| Product Model | IFB3004-APKG/V4A/US-104 |
| Part Number | IF5818 |
| Product Type | Inductive Proximity Sensor |
| Sensing Range | 4 mm |
| Electrical Design | PNP |
| Output Function | Normally Closed |
| Operating Voltage | 10–30 V DC |
| Permanent Current Rating | 200 mA |
| Switching Frequency | 1400 Hz |
| Operating Distance | 0–3.24 mm |
| Mounting | Non-flush |
| Thread | M12 x 1 |
| Dimensions | M12 x 1 / L = 50 mm |
| Housing Material | Stainless Steel 316L |
| Connection | M12 connector |
| Contacts | Gold-plated |
| Protection Rating | IP65 |
| Ambient Temperature | -25°C to +80°C |
| Status Indicator | Red LED, 4 × 90° |
| Weight | Approx. 24–26 g |
