The IFM IFB3004-BPKG/V4A/US-104-DPS RT Inductive Sensor provides dependable 4 mm metal detection with PNP normally open output, stainless-steel construction, and 1400 Hz switching frequency.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

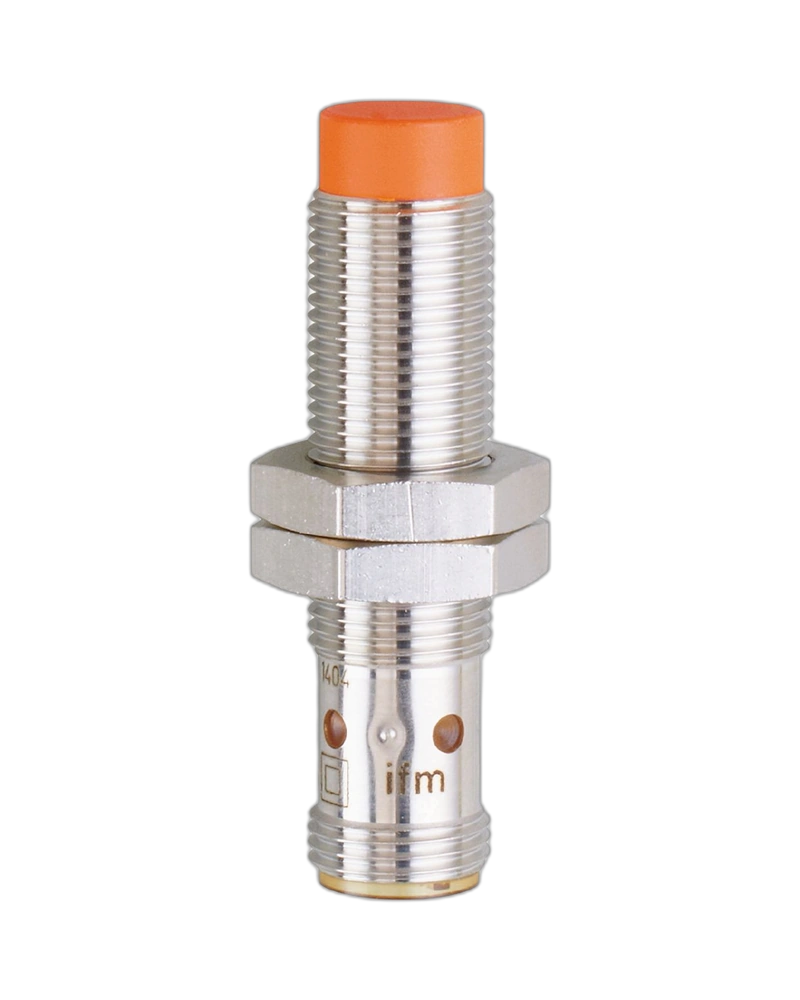

The IFM IF5817 Inductive Sensor is designed for reliable position and object detection in Industrial Automation UAE applications. It provides non-contact detection of metallic targets used in automated machines and production equipment.
Its 4 mm sensing range and non-flush M12 design support reliable detection in conveyors, assembly machines, material handling equipment, and production lines. The PNP normally open output enables easy connection to PLCs and industrial automation controllers.
The stainless-steel housing provides robust mechanical construction for industrial environments. With a 1400 Hz switching frequency, IP65 protection, and gold-plated M12 contacts, the sensor is suitable for reliable industrial sensing applications.
• 4 mm sensing range
• PNP normally open output
• 10–36 V DC operation
• 1400 Hz switching frequency
• Stainless-steel 316L housing
• Non-flush mountable
• M12 x 1 threaded design
• Gold-plated contacts
• IP65 protection
• Short-circuit and overload protection
• Red LED switching status indication
Ideal for factory automation, machine monitoring, conveyor systems, assembly machinery, material handling, position detection, packaging equipment, and industrial automation systems.
| Specification | Details |
|---|---|
| Product Model | IFB3004-BPKG/V4A/US-104-DPS RT |
| Part Number | IF5817 |
| Product Type | Inductive Proximity Sensor |
| Sensing Range | 4 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Permanent Current Rating | 250 mA |
| Switching Frequency | 1400 Hz |
| Operating Distance | 0–3.25 mm |
| Mounting | Non-flush |
| Thread | M12 x 1 |
| Dimensions | M12 x 1 / L = 50 mm |
| Housing Material | Stainless Steel 316L |
| Connection | M12 A-coded connector |
| Contacts | Gold-plated |
| Protection Rating | IP65 |
| Ambient Temperature | -25°C to +80°C |
| Status Indicator | 4 × 90° Red LED |
| Weight | 24.5 g |
