The IFM IFB3002-BPKG/V4A/US-104 Inductive Sensor provides precise 2 mm flush-mounted metal detection with PNP normally open output and 1200 Hz switching frequency for compact industrial automation installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

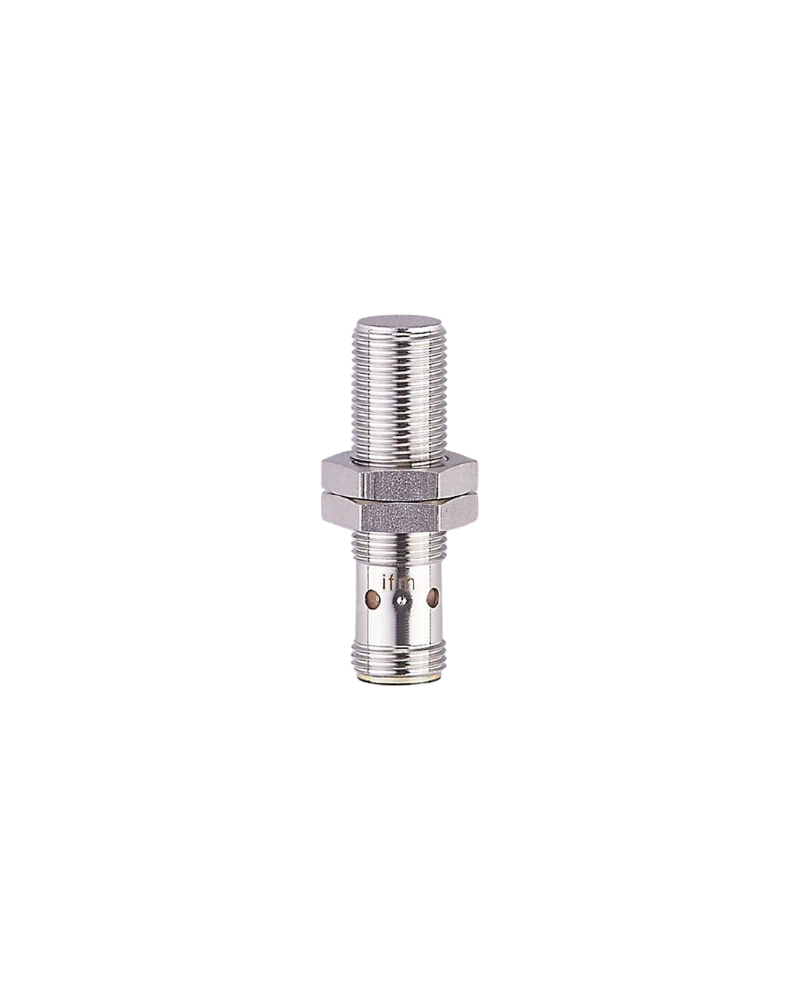

The IFM IF5815 Inductive Sensor is designed for precise metal detection in Industrial Automation UAE applications where compact installation and reliable sensing are important.
Its 2 mm sensing range and flush-mountable M12 housing allow the sensor to be installed in space-constrained machine designs while maintaining accurate detection. The PNP normally open output provides straightforward integration with PLCs and automation controllers.
The stainless-steel housing provides durability for industrial environments, while gold-plated M12 contacts help provide reliable electrical connection. With 1200 Hz switching frequency and IP67 protection, the sensor supports fast and dependable machine operations.
• 2 mm sensing range
• Flush mountable
• PNP normally open output
• 10–30 V DC operation
• 1200 Hz switching frequency
• Stainless-steel 316L housing
• M12 x 1 threaded design
• Gold-plated contacts
• IP67 protection
• Short-circuit and overload protection
• Yellow LED switching indication
Suitable for compact machinery, factory automation, conveyor systems, assembly equipment, machine monitoring, position detection, packaging equipment, and industrial control applications.
| Specification | Details |
|---|---|
| Product Model | IFB3002-BPKG/V4A/US-104 |
| Part Number | IF5815 |
| Product Type | Inductive Proximity Sensor |
| Sensing Range | 2 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–30 V DC |
| Permanent Current Rating | 200 mA |
| Switching Frequency | 1200 Hz |
| Operating Distance | 0–1.62 mm |
| Mounting | Flush mountable |
| Thread | M12 x 1 |
| Dimensions | M12 x 1 / L = 45 mm |
| Housing Material | Stainless Steel 316L |
| Connection | M12 A-coded connector |
| Contacts | Gold-plated |
| Protection Rating | IP67 |
| Ambient Temperature | -25°C to +80°C |
| Status Indicator | 4 × Yellow LED |
| Weight | 24.5 g |
